UM2580

Mode 1 example apps

The magnetometer indicates yaw angle and heading, but only if hard-iron offset is compensated and when there

is no additional magnetic field around the

Sensortile.box

disturbing the measurement.

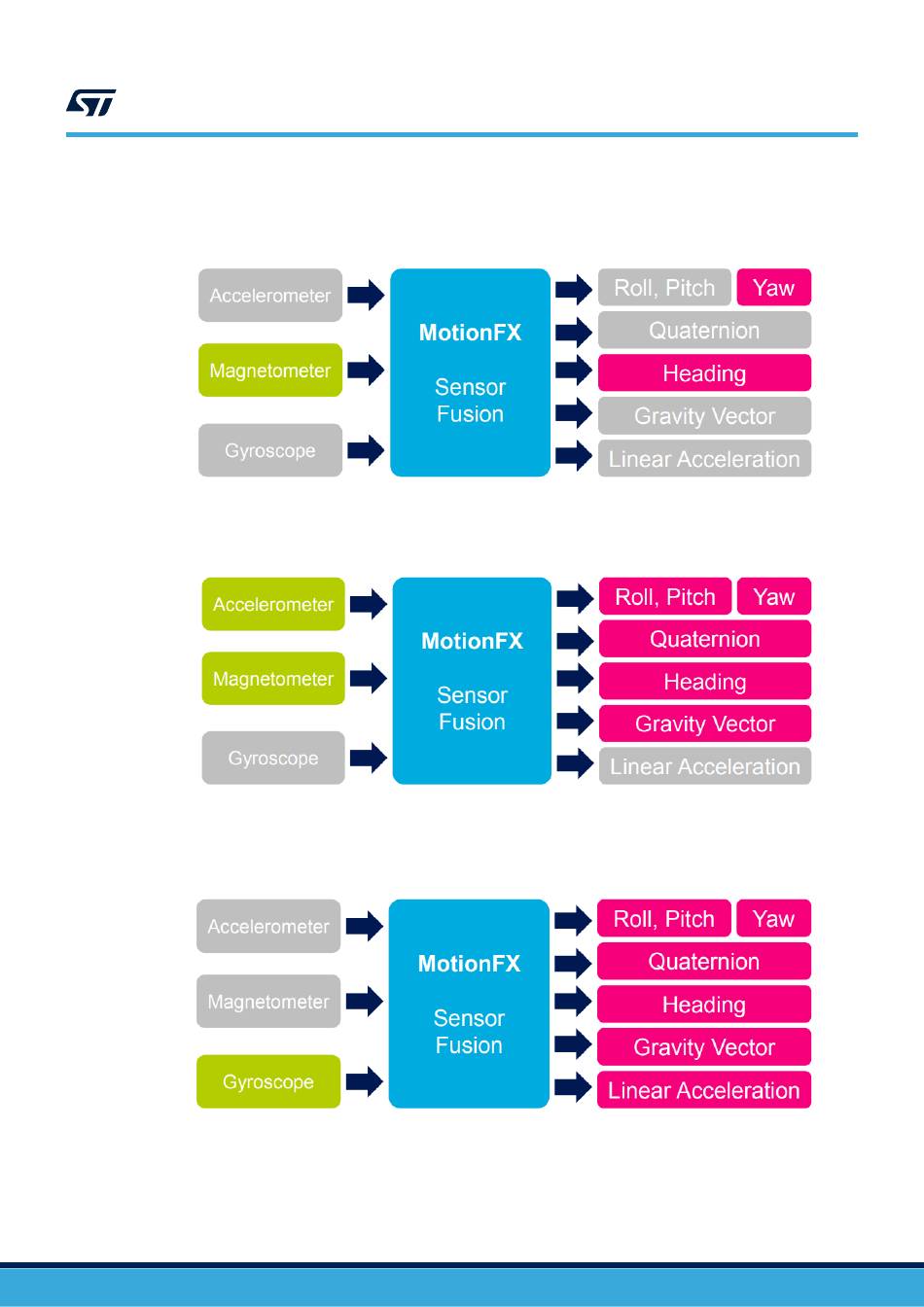

Figure 16.

MotionFX algorithm flow - magnetometer function

Data regarding yaw and angle heading are also given when tilt is compensated by the accelerometer.

Figure 17.

MotionFX algorithm flow - accelerometer tilt compensation

The gyroscope indicates the new orientation based on the previous one, when its bias is compensated by the

accelerometer. The gyroscope can detect the static condition of the Sensortile.box,

Figure 18.

MotionFX algorithm flow - gyroscope function

UM2580 - Rev 5

page 14/41
