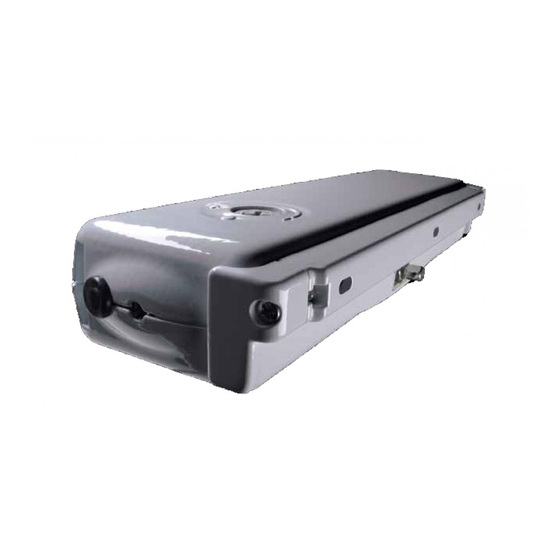

INSTALLATION AND USE INSTRUCTIONS
CHAIN ACTUATOR FOR
ACK4
WINDOW AUTOMATION
PATENTED
P/N 0P5101
VER.1.0
REV.11.05
BEFORE INSTALLING AND USING THE ACTUATOR, IT IS
COMPULSORY FOR THE INSTALLER AND THE USER TO READ
AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS.
THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR
AND MUST BE PRESERVED FOR FUTURE REFERENCE
UNTIL DEMOLITION OF THE SAME.
Advertisement
Table of Contents
Related Manuals for TOPP ACK4 Series
Summary of Contents for TOPP ACK4 Series
- Page 1 INSTALLATION AND USE INSTRUCTIONS CHAIN ACTUATOR FOR ACK4 WINDOW AUTOMATION PATENTED P/N 0P5101 VER.1.0 REV.11.05 BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY FOR THE INSTALLER AND THE USER TO READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS. THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR AND MUST BE PRESERVED FOR FUTURE REFERENCE UNTIL DEMOLITION OF THE SAME.
-
Page 3: Table Of Contents
ACK4 INDEX 1- DECLARATION OF "CE" CONFORMITY ........................page 04 2- GENERAL REMARKS 2.1- General instructions ................page 2.2- Installer and user ................page 2.3- Warranty ....................page 2.4- Technical assistance .................page 2.5- Reserved rights ................page 3- TECHNICAL DESCRIPTION 3.1- Rating plate and "CE" marking ............page 3.2- Denomination of the components and dimensions......page... - Page 4 ACK4 1- DECLARATION OF "CE" CONFORMITY TOPP SPA - Via Galvani, 59 36066 SANDRIGO (VI) - ITALIA Tel. +39 0444 656700 Fax +39 0444 656701 Declares that the electric device Called: CHAIN ACTUATOR FOR WINDOW AUTOMATION ACK4 ACK42 - ACK44...
-
Page 5: General Instructions
ACK4 GENERAL REMARKS -2 2.1- GENERAL INSTRUCTIONS BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY THAT THE INSTALLER AND THE USER CAREFULLY READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS. THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR AND MUST COMPULSORILY BE PRESERVED FOR FUTURE REFERENCE. -
Page 6: 3- Technical Description
3- TECHNICAL DESCRIPTION ACK4 3.1- RATING PLATE AND "CE" MARKING The "CE" marking certifies the compliance of the machine with the essential safety and health requirements foreseen by the product European Directives. The rating plate is an adhesive plate in polyester, silk-screen printed in black, having the following size: L=36 mm - H=50 mm. -
Page 7: Denomination Of The Components And Dimensions
ACK4 TECHNICAL DESCRIPTION -3 3.2- DENOMINATION OF THE COMPONENTS AND DIMENSIONS Fig.2 Dimensions in mm LEGEND: Power supply cable Support heads Support Opening stroke adjustment on both sides Actuator Chain pin Bracket for bottom hung opening Window frame connection bracket VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05... -
Page 8: Technical Data
3- TECHNICAL DESCRIPTION ACK4 3.3- TECHNICAL DATA Tab.1 contains the technical data characterising the actuators. ACK42 ACK44 Power supply voltage 230 V - 50 Hz 24 V DC 0,32 A 2,10 A Absorbed current Absorbed power with load 75 W 55 W Thrust force 300 N... -
Page 9: Destination Of Use
ACK4 TECHNICAL DESCRIPTION -3 3.4- FORMULAS FOR THE CALCULATION OF THRUST AND TRACTIVE FORCE Fig.3 Horizontal domes or skylights Force necessary for opening or closing Weight of the skylight or dome (Only movable part) F = 0,54 x P Fig.4 Top hung windows (A) or bottom hung windows (B) Force necessary for opening or... -
Page 10: Use Limits
3- TECHNICAL DESCRIPTION ACK4 3.6- USE LIMITS The actuator has been designed and manufactured exclusively for the destination of par.3.5 use given in , therefore, any other type of use is strictly forbidden in order to assure in any moment the safety of the installer and of the user, as well as the efficiency of the actuator itself. - Page 11 ACK4 TECHNICAL DESCRIPTION -3 Fig.5 VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05...
-
Page 12: Residual Risks
4- SAFETY ACK4 4.1- PROTECTION AGAINST ELECTRIC HAZARD The actuator is protected against electric hazard due to direct and indirect contacts. The protection measures against direct contacts aim at protecting people against hazards due to contact with active parts, usually live parts; while the protection measures against indirect contacts aim at protecting people against hazards due to conducing part, which are usually insulated, but could become live in case of failure (insulation failure). -
Page 13: General Instructions
ACK4 INSTALLATION -5 5.1- GENERAL INSTRUCTIONS THE ACTUATOR INSTALLATION CAN BE PERFORMED EXCLUSIVELY BY COMPETENT AND QUALIFIED TECHNICAL PERSONNEL SATISFYING THE PROFESSIONAL AND TECHNICAL REQUIREMENTS FORESEEN BY THE LAWS IN FORCE IN THE COUNTRY OF INSTALLATION. THE ACTUATOR PERFORMANCE MUST BE SUFFICIENT TO ASSURE THE CORRECT MOVEMENT OF THE WINDOW. -
Page 14: Top Hung Windows
5- IINSTALLATION ACK4 5.2- TOP HUNG WINDOWS Fig.7 (Fig. 7 and 15÷24) (par.3.7) Open the package and extract the various components; 2) Fig.15- With a pencil draw the centre line "X" of the window frame; 3) Fig.16- Select the following components: bracket "S1", support "SA", two nuts "D1", two screws "V1", heads "T1"... -
Page 15: Bottom Hung Windows
ACK4 INSTALLATION -5 10) Fig.21- Mount the nut "D2" on the screw "V3" and then it on the chain ending "TC"; Fig.22- Connect the bracket "S1" to the screw "V3" by means of the pin "P"; par.5.4 Perform the electric connections according to the prescriptions of , as well as with reference to the wiring diagram;... - Page 16 5- INSTALLATION ACK4 With a suitable drill, create on the window frame holes having the related diameter, given on the adhesive template "DV"; 7) Fig.29- Mount the support "SA" on the fix window frame with the screws "V2"; check the perfect horizontal and vertical alignment with the window frame; 8) Fig.30- Mount the bracket "S2"...
-
Page 17: Electric Connections
ACK4 INSTALLATION -5 5.4- ELECTRIC CONNECTIONS (Wiring diagram) THE ELECTRIC CONNECTION OF THE ACTUATOR CAN BE PERFORMED ONLY BY COMPETENT AND QUALIFIED TECHNICAL PERSONNEL SATISFYING THE TECHNICAL AND PROFESSIONAL REQUIREMENTS FORESEEN BY THE LAW IN FORCE IN THE COUNTRY OF INSTALLATION ISSUING TO THE CUSTOMER A DECLARATION OF CONFORMITY FOR THE CONNECTION AND/OR THE PLANT PERFORMED. - Page 18 5- INSTALLATION ACK4 2) CONTROL AND FEEDING UNIT: Microprocessor control units (e.g.: Mod. TF, EVP, etc.) controlling the single actuator or more than one actuator simultaneously by means of one or more manual push- buttons, an infrared remote control or a 433 Mhz radio control. (RPR - 12V) To these control units, it is possible to connect the rain sensors , the wind...
-
Page 19: Emergency Procedures
ACK4 INSTALLATION -5 5.7- EMERGENCY PROCEDURES Should it be necessary to open the window manually due to power supply failure or mechanism block, follow these instructions: BEFORE PERFORMING ANY TYPE OF INTERVENTION ON THE ACTUATOR AND ON THE WINDOW, IT IS COMPULSORY TO DISCONNECT THE POWER SUPPLY OF THE ACTUATOR AND TO PUT ON "0"... -
Page 20: 6- Use And Operation
6- USE AND OPERATION ACK4 6.1- USE OF THE ACTUATOR THE ACTUATOR CAN BE USED ONLY BY A USER ACTING IN COMPLIANCE WITH THE INSTRUCTIONS GIVEN IN THIS MANUAL AND/OR IN THE MANUAL OF THE ACTUATOR COMMAND DEVICE (e.g.: WIND AND RAIN CONTROL UNIT). BEFORE USING THE ACTUATOR, IT IS COMPULSORY FOR THE USER TO READ AND UNDERSTAND IN ALL ITS PARTS THIS MANUAL, AS WELL AS THE EVENTUAL MANUAL OF THE INSTALLED CONTROL DEVICE TYPE. -
Page 21: General Instructions
ACK4 DEMOLITION -7 7.1- GENERAL INSTRUCTIONS THE DEMOLITION OF THE ACTUATOR MUST OCCUR IN COMPLIANCE WITH THE LAWS IN FORCE ON ENVIRONMENT PROTECTION. DIFFERENTIATE THE PARTS MAKING UP THE ACTUATOR ACCORDING TO THEIR DIFFERENT MATERIAL TYPE (PLASTIC, ALUMINIUM, ETC.). ACK4 SPARE PARTS AND ACCESSORIES UPON REQUEST -8 8.1- GENERAL INSTRUCTIONS THE USE OF "NON-ORIGINAL"... -
Page 22: 8- Spare Parts And Accessories Upon Request
8- SPARE PARTS AND ACCESSORIES UPON REQUEST ACK4 Fig.12 FRAME ADJUSTMENT PINS VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05... - Page 23 ACK4 SPARE PARTS AND ACCESSORIES UPON REQUEST -8 Fig.13 VERTICAL MOUNTING BRACKET (COD. 3A1380-81-82) WING FRAME Window frame FOR A CORRECT OPERATION, THE WINDOW MUST HAVE A MIN. Overlapped part adjustment HEIGHT OF 800 mm (ACTUATOR DISTANCE FROM THE WINDOW pin code FRAME OPENING HINGE).
- Page 24 8- SPARE PARTS AND ACCESSORIES UPON REQUEST ACK4 Fig.14 SMALL SWIVEL BRACKET (COD. 3A1396-97-98-99) WING FRAME Window frame Overlapped part adjustment pin code BIG SWIVEL BRACKET 0B0008 ÷ (COD.3A1391-92-93-94) 10 mm (Standard) ÷ 20 mm 0B0005 ÷ 30 mm 0B0007 ÷...
- Page 25 ACK4 INSTALLATION ON TOP HUNG WINDOWS Fig.15 Fig.16 T1 T2 Fig.17 Fig.18 Fig.19 VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05...
- Page 26 INSTALLATION ON TOP HUNG WINDOWS ACK4 Fig.20 Fig.21 Fig.22 Fig.23 Fig.24 VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05...
- Page 27 ACK4 INSTALLATION ON BOTTOM HUNG WINDOWS Fig.25 Fig.26 Fig.27 Fig.28 Fig.29 VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05...
- Page 28 INSTALLATION ON BOTTOM HUNG WINDOWS ACK4 Fig.30 Fig.31 SA S2 Fig.32 Fig.33 S2 S3 V4 Fig.34 VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05...
- Page 29 ACK4 DRAWINGS FOR INSTALLATION Wiring diagram VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05...
- Page 30 REMARKS ACK4 VER.1.0 INSTALLATION AND USE ISTRUCTIONS REV.11.05...
- Page 31 The products must be installed and used in compliance with the technical features and the instructions given by TOPP, as well as according to the safety regulations and the standards that rule the installation and employment of the electrical devices in the country where the products are installed and used.
- Page 32 TOPP SPA Via Galvani, 59 - 36066 Sandrigo (VI) - Italia Tel. +39 0444 656700 - Fax +39 0444 656701 Info@topp.it - www.topp.it...
Need help?
Do you have a question about the ACK4 Series and is the answer not in the manual?
Questions and answers

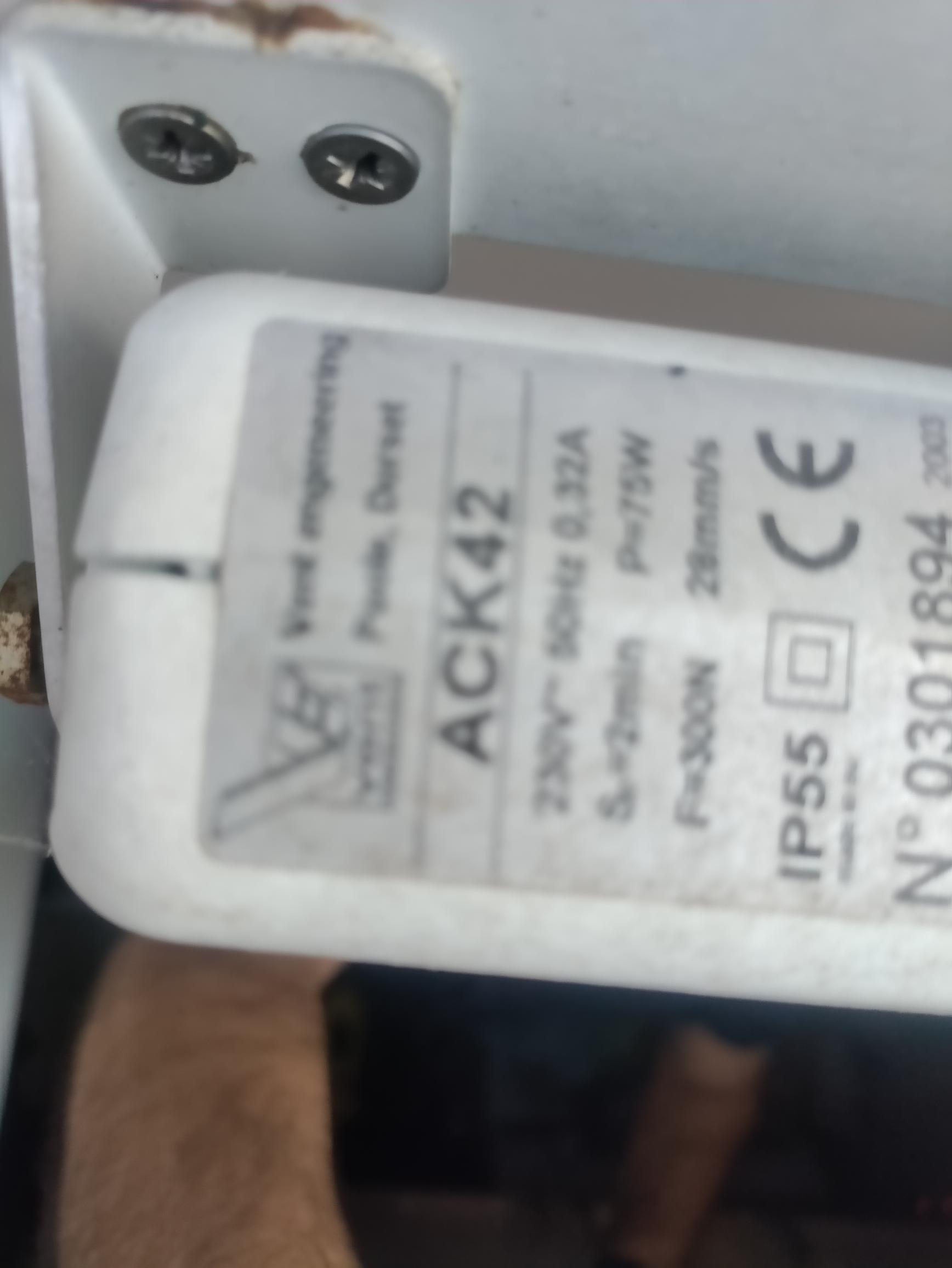

the chain twists when the window is fully open
