TOPP ACK4 Installation And Use Instructions Manual

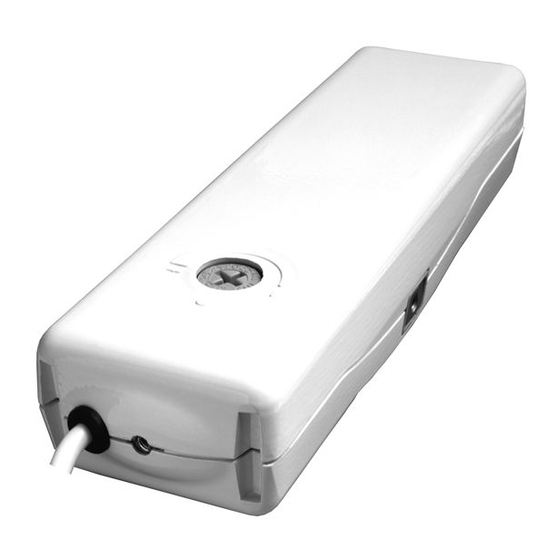

Chain actuator for window automation
Hide thumbs Also See for ACK4:
Table of Contents

Advertisement

Quick Links

INSTALLATION AND USE INSTRUCTIONS
CHAIN ACTUATOR FOR
ACK4
WINDOW AUTOMATION
PATENTED
P/N 0P5101
VER.0.0
REV.11.12
BEFORE INSTALLING AND USING THE ACTUATOR, IT IS
COMPULSORY FOR THE INSTALLER AND THE USER TO READ
AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS.
THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR
AND MUST BE PRESERVED FOR FUTURE REFERENCE
UNTIL DEMOLITION OF THE SAME.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACK4 and is the answer not in the manual?

Questions and answers

Related Manuals for TOPP ACK4

Summary of Contents for TOPP ACK4

  • Page 1 INSTALLATION AND USE INSTRUCTIONS CHAIN ACTUATOR FOR ACK4 WINDOW AUTOMATION PATENTED P/N 0P5101 VER.0.0 REV.11.12 BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY FOR THE INSTALLER AND THE USER TO READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS.

  • Page 3: Table Of Contents

    ACK4 INDEX 1- DECLARATION OF "CE" CONFORMITY ............................page 04 2- GENERAL REMARKS 2.1- General instructions ..................page 05 2.2- Installer and user ....................page 05 2.3- Warranty ......................page 05 2.4- Technical assistance ..................page 05 2.5- Reserved rights ....................page 05 2.6- Description of personnel ...................page 06 3- TECHNICAL DESCRIPTION 3.1- Rating plate and "CE"...

  • Page 4: 1- Declaration Of "Ce" Conformity

    36066 Sandrigo (VI) ITALIA declares that the electrical device called: CHAIN ACTUATOR FOR WINDOW AUTOMATION type: ACK4 models: ACK42 - ACK44 Serial n° and year of manufacture: see data plate and CE marking applied to the device complies with the requirements of the following directives: 2006/95/CE Low Voltage Directive: electrical material for use within certain voltage limits.

  • Page 5: General Instructions

    ACK4 GENERAL REMARKS -2 2.1- GENERAL INSTRUCTIONS BEFORE INSTALLING AND USING THE ACTUATOR, IT IS COMPULSORY THAT THE INSTALLER AND THE USER CAREFULLY READ AND UNDERSTAND THIS MANUAL IN ALL ITS PARTS. THIS MANUAL IS INTEGRAL PART OF THE ACTUATOR AND MUST COMPULSORILY BE PRESERVED FOR FUTURE REFERENCE.

  • Page 6: 2- General Remarks

    2- GENERAL REMARKS ACK4 2.6- DESCRIPTION OF PERSONNEL USERS MUST NEVER PERFORM OPERATIONS RESERVED FOR MAINTENANCE PEOPLE OR SPECIALISED TECHNICIANS. THE MANUFACTURER DECLINES ALL LIABILITY FOR DAMAGE DERIVING FROM FAILURE TO OBSERVE THE ABOVE REQUIREMENTS. Specialised electrician: A specialised electrician must be able to install the actuator, start it and operate it both in normal conditions and in the maintenance mode;...

  • Page 7: Rating Plate And "Ce" Marking

    ACK4 TECHNICAL DESCRIPTION -3 3.1- RATING PLATE AND "CE" MARKING The "CE" marking certifies the compliance of the machine with the essential safety and health requirements foreseen by the product European Directives. The rating plate is an adhesive plate in polyester, silk-screen printed in black, having the following size: L= 50 mm - H= 36 mm.

  • Page 8: 3- Technical Description

    3- TECHNICAL DESCRIPTION ACK4 3.2- DENOMINATION OF THE COMPONENTS AND DIMENSIONS Fig. 2 Dimensions in mm LEGEND: 1) Power supply cable 2) Support heads 3) Support 4) Opening stroke adjustment on both sides 5) Actuator 6) Chain pin 7) Bracket for bottom hung opening 8) Window frame connection bracket VER.0.0...

  • Page 9: Technical Data

    ACK4 TECHNICAL DESCRIPTION -3 3.3- TECHNICAL DATA Tab. 1 contains the technical data characterising the actuators. ACK42 ACK44 Power supply voltage 230 V - 50 Hz 24 V 0,32 A 1,35 A Absorbed current Absorbed power with load 75 W...

  • Page 10: Destination Of Use

    3- TECHNICAL DESCRIPTION ACK4 3.4- FORMULAS FOR THE CALCULATION OF THRUST AND TRACTIVE FORCE Fig. 3 Horizontal domes or skylights F = Force necessary for opening or closing P = Weight of the skylight or dome (Only movable part) F = 0,54 x P Fig.

  • Page 11: Use Limits

    ACK4 TECHNICAL DESCRIPTION -3 3.6- USE LIMITS The actuator has been designed and manufactured exclusively for the destination of use given in par .3.5, therefore, any other type of use is strictly forbidden in order to assure in any moment the safety of the installer and of the user, as well as the efficiency of the actuator itself.
  • Page 12 3- TECHNICAL DESCRIPTION ACK4 Fig.5 VER.0.0 INSTALLATION AND USE ISTRUCTIONS REV.11.12...

  • Page 13: General Instructions

    ACK4 SAFETY -4 4.1- GENERAL INSTRUCTIONS OPERATORS MUST BE INFORMED OF ACCIDENT RISKS, SAFETY DEVICES AND THE GENERAL ACCIDENT PREVENTION REGULATIONS ESTABLISHED BY INTERNATIONAL DIRECTIVES AND BY THE LAW IN FORCE IN THE COUNTRY OF USE. ALL OPERATORS MUST STRICTLY COMPLY WITH THE ACCIDENT PREVENTION REGULATIONS IN FORCE IN THE COUNTRY OF USE.

  • Page 14: Safety Plates

    4- SAFETY ACK4 3) Only for the mod. ACK4/230V provided with protection against electric shocks: Protection of passive type given by the use of components with double insulation, also called components of class II or with equivalent insulation. 4.3- SAFETY PLATES IT IS FORBIDDEN TO REMOVE, MOVE, SPOIL OR IN ANYWAY REDUCE THE VISIBILITY OF THE SAFETY PLATES.

  • Page 15: General Instructions

    ACK4 INSTALLATION -5 5.1- GENERAL INSTRUCTIONS THE ACTUATOR INSTALLATION CAN BE PERFORMED EXCLUSIVELY BY COMPETENT AND QUALIFIED TECHNICAL PERSONNEL SATISFYING THE PROFESSIONAL AND TECHNICAL REQUIREMENTS FORESEEN BY THE LAWS IN FORCE IN THE COUNTRY OF INSTALLATION. THE ACTUATOR PERFORMANCE MUST BE SUFFICIENT TO ASSURE THE CORRECT MOVEMENT OF THE WINDOW.

  • Page 16: Top Hung Windows

    5- IINSTALLATION ACK4 Fig. 8 5.2- TOP HUNG WINDOWS (Fig. 8 and 16÷26) 1) Open the package (par. 3.7) and extract the various components; 2) Fig. 17- With a pencil draw the centre line "X" of the window frame; 3) Fig. 18- Select the following components: bracket "S1", support "SA", two nuts "D1", two...

  • Page 17: Bottom Hung Windows

    ACK4 INSTALLATION -5 10) Fig. 23- Mount the nut "D2" on the screw "V3" and then it on the chain ending "TC"; Fig. 24- Connect the bracket "S1" to the screw "V3" by means of the pin "P"; 11) Perform the electric connections according to the prescriptions of par. 5.4, as well as with reference to the wiring diagram;...
  • Page 18 5- INSTALLATION ACK4 6) With a suitable drill, create on the window frame holes having the related diameter, given on the adhesive template "DV"; 7) Fig. 32- Mount the support "SA" on the fix window frame with the screws "V2"; check the perfect horizontal and vertical alignment with the window frame;...

  • Page 19: Electric Connections

    ACK4 INSTALLATION -5 5.4- ELECTRIC CONNECTIONS (Wiring diagram) THE ELECTRIC CONNECTION OF THE ACTUATOR CAN BE PERFORMED ONLY BY COMPETENT AND QUALIFIED TECHNICAL PERSONNEL SATISFYING THE TECHNICAL AND PROFESSIONAL REQUIREMENTS FORESEEN BY THE LAW IN FORCE IN THE COUNTRY OF INSTALLATION ISSUING TO THE CUSTOMER A DECLARATION OF CONFORMITY FOR THE CONNECTION AND/OR THE PLANT PERFORMED.
  • Page 20 (RW) and the brightness sensor; THE EVENTUALLY USED UNITS MUST SUPPLY A VOLTAGE TO ACK4 FOR MAX. 120 s. 3) SYNCHRONIZATION UNIT: Microprocessor control unit (USA2) controlling by means of a manual push-button the simultaneous operation of 2 actuators installed on a single window assuring the regular opening and closing movement.

  • Page 21: Emergency Procedures

    ACK4 INSTALLATION -5 5.7- EMERGENCY PROCEDURES Should it be necessary to open the window manually due to power supply failure or mechanism block, follow these instructions: BEFORE PERFORMING ANY TYPE OF INTERVENTION ON THE ACTUATOR AND ON THE WINDOW, IT IS COMPULSORY TO DISCONNECT THE POWER SUPPLY OF THE ACTUATOR AND TO PUT ON "0"...

  • Page 22: 6- Use And Operation

    6- USE AND OPERATION ACK4 6.1- USE OF THE ACTUATOR THE ACTUATOR CAN BE USED ONLY BY A USER ACTING IN COMPLIANCE WITH THE INSTRUCTIONS GIVEN IN THIS MANUAL AND/OR IN THE MANUAL OF THE ACTUATOR COMMAND DEVICE (e.g.: WIND AND RAIN CONTROL UNIT).

  • Page 23: General Instructions

    6 months, that the actuator assembly components are clean, the fixing systems (brackets and screws) are tight, the window frame is not deformed and the seals are tight, and check the cables and connectors. If any malfunctions arise after cleaning or inspection, contact the TOPP technical assistance service. VER.0.0 INSTALLATION AND USE ISTRUCTIONS REV.11.12...

  • Page 24: 9- Spare Parts And Accessories Upon Request

    8- DEMOLITION ACK4 8.1- GENERAL INSTRUCTIONS THE DEMOLITION OF THE ACTUATOR MUST OCCUR IN COMPLIANCE WITH THE LAWS IN FORCE ON ENVIRONMENT PROTECTION. DIFFERENTIATE THE PARTS MAKING UP THE ACTUATOR ACCORDING TO THEIR DIFFERENT MATERIAL TYPE (PLASTIC, ALUMINIUM, ETC.). 9- SPARE PARTS AND ACCESSORIES UPON REQUEST ACK4 9.1- GENERAL INSTRUCTIONS...

  • Page 25: Ver.0.0 Installation And Use Istructions

    SPARE PARTS AND ACCESSORIES UPON REQUEST -9 ACK4 Fig. 13 FRAME ADJUSTMENT PINS VER.0.0 INSTALLATION AND USE ISTRUCTIONS REV.11.12...
  • Page 26 9- SPARE PARTS AND ACCESSORIES UPON REQUEST ACK4 Fig. 14 VERTICAL MOUNTING BRACKET (COD. 3A1380-81-82) WING FRAME Window frame FOR A CORRECT OPERATION, THE WINDOW MUST HAVE A MIN. Overlapped part adjustment HEIGHT OF 800 mm (ACTUATOR DISTANCE FROM THE WINDOW pin code FRAME OPENING HINGE).
  • Page 27 SPARE PARTS AND ACCESSORIES UPON REQUEST -9 ACK4 Fig. 15 SMALL SWIVEL BRACKET (COD. 3A1396-97-98-99) WING Make sure that the M6 nut is tightly fastened M6 nut FRAME Window frame Overlapped part adjustment pin code 0B0008 ÷ 10 mm (Standard) BIG SWIVEL BRACKET (COD.3A1391-92-93-94)
  • Page 28 ACK4 INSTALLATION ON TOP HUNG WINDOWS Fig. 16 0÷10mm (Standard) Wing 45.5 Frame 27.5 55.2 96.7 Window frame Overlapped part adjustment pin code 0B0008 ÷ 10 mm (Standard) ÷ 20 mm 0B0005 ÷ 30 mm 0B0007 ÷ 40 mm 0B0006 VER.0.0...
  • Page 29 ACK4 INSTALLATION ON TOP HUNG WINDOWS Fig. 17 Fig. 18 T1 T2 Fig. 19 Fig. 20 Fig. 21 VER.0.0 INSTALLATION AND USE ISTRUCTIONS REV.11.12...
  • Page 30 ACK4 INSTALLATION ON TOP HUNG WINDOWS Fig. 23 Fig. 22 Fig. 24 Fig. 25 Fig. 26 VER.0.0 INSTALLATION AND USE ISTRUCTIONS REV.11.12...
  • Page 31 ACK4 INSTALLATION ON BOTTOM HUNG WINDOWS Fig. 27 96.3 APPLICATION 1 55.2 T1 and T2 head downwards 27.5 0÷5mm Frame Wing 105÷110 96.3 55.2 27.5 0÷5mm APPLICATION 2 Frame T1 and T2 head upwards Wing 105÷110 VERIFY THAT THE DISTANCE "D" BETWEEN THE FIXED PART AND THE MOVABLE PART OF THE WINDOW IS INCLUDED WITHIN 0 AND 5 mm.
  • Page 32 ACK4 INSTALLATION ON BOTTOM HUNG WINDOWS Fig. 28 Fig. 29 Fig. 30 Fig. 31 Fig. 32 VER.0.0 INSTALLATION AND USE ISTRUCTIONS REV.11.12...
  • Page 33 ACK4 INSTALLATION ON BOTTOM HUNG WINDOWS Fig. 33 Fig. 34 SA S2 Fig. 35 Fig. 36 S2 S3 V4 Fig. 37 VER.0.0 INSTALLATION AND USE ISTRUCTIONS REV.11.12...
  • Page 34 ACK4 DRAWINGS FOR INSTALLATION Wiring diagram VER.0.0 INSTALLATION AND USE ISTRUCTIONS REV.11.12...
  • Page 35 The products must be installed and used in accordance with the technical characteristics and instructions provided by TOPP and also according to the compliance of safety norms and dispositions that regulate the installation and the use of the electric appliances, effective in the country in which the products are installed and used.
  • Page 36 TOPP S.p.A. Società a socio unico soggetta a direzione e coordinamento di 2 Plus 3 Holding S.p.A. Via Galvani, 59 - 36066 Sandrigo (VI) - Italia Tel. +39 0444 656700 - Fax +39 0444 656701...
