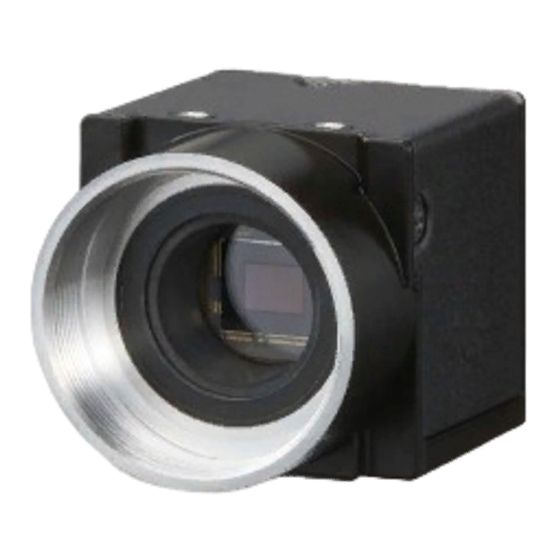

Toshiba teli BC Series Instruction Manual

Toshiba teli BC Series Instruction Manual

Cmos camera

Advertisement

Quick Links

BC Series
CMOS Camera
Instruction Manual
Model
Mono Camera
Color Camera
Thank you for purchasing our product.
Before using this CMOS camera, Please read through this instruction
manual carefully in order to use this product correctly and safely.
After reading, keep this instruction manual handy so that you can refer to,
whenever you need it.
Information contained in this document is subject to change without prior notice.
Standard name might be trade mark of each company.
Copyright © 2016-2018 Toshiba Teli Corporation, All Rights Reserved.
: BC302LMG / BC505LMG
: BC505LMCG / BC505LMCF
http://www.toshiba-teli.co.jp/en/index.htm
D4272607A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Toshiba teli BC Series

  • Page 1 After reading, keep this instruction manual handy so that you can refer to, whenever you need it. Information contained in this document is subject to change without prior notice. Standard name might be trade mark of each company. D4272607A Copyright © 2016-2018 Toshiba Teli Corporation, All Rights Reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 2: Table Of Contents

    TestPattern ..........................50 AcquisitionControl ........................51 TriggerControl ........................... 51 ExposureTimeControl ....................... 54 DigitalIOControl ........................55 TimerControl ..........................56 Gain ............................57 BlackLevel..........................58 Gamma ............................. 58 1 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 3 LUTControl..........................63 SequentialShutterControl ......................64 DPCControl ..........................65 UserSetControl ......................... 66 Status / Expanded status ......................67 Baudrate ........................... 67 Warranty rules ..........................68 Repair ............................... 69 2 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 4: Safety Precautions

    The content of prohibition is shown by a picture or words beside the symbol. This sign indicates MANDATORY ACTION (You are required to do). MANDATORY The content of action is shown by a picture or words beside the symbol. 3 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 5: General Handing

     Do not be handled roughly, damaged, fabricated, bent forcefully, pulled, twisted, bundled, placed under heavy objects or heated the power cable and the connection cable. Avoid Otherwise, fire or electric shock may result. 4 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 6 (every approx five years). Accumulation of dust inside the equipment may result in fire or electric shock. For inspection and cleaning costs, contact your sales representative. Instruction 5 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 7: Cases For Indemnity (Limited Warranty)

    ● The item that is not described in specifications of this product is out of the guarantee. ● The case of damages or losses which are caused by incorrect connection of the cable is out of the guarantee. 6 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 8: Restriction For Use

    (*2): Equipment relating to maintenance of public services/functions involving factors of safety refers to. - Traffic control systems for air transportation, railways, roads, or marine transportation - Equipment for nuclear power generation - Equipment related to the above 7 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 9: Notes On Using This Product

    ● Mounting to pedestal When mounting this product to a pedestal, make sure carefully that lens doesn’t touch with the pedestal. 8 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 10 Never use alcohol, benzene, thinner, or other chemicals because such chemicals may damage or discolor the paint and indications. If the image pickup surface becomes dusty, contaminated, or scratched, consult your sales representative. 9 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 11 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be require to correct the interference at his own expense. 10 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 12 The brightness of the upper part of the screen may be different from that of the lower part. Note that this is a characteristic of a CMOS image sensor and is not a fault. 11 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 13 This information is applicable for People's Republic of China only. リサイクルに関する情報(包装物) 有关再利用的信息(包装物) Information on recycling of wrapping composition 内部緩衝材料・袋 内部缓冲材料·袋 箱/箱子/Box Internal buffer materials・Bag ペーパーボード 纸板 Paper board 12 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 14: Specifications

    Specifications Overview This BC series is an integrated-(one-body)-type camera that adopts a global shutter CMOS sensor. BC302LM (3M 1/1.8 type, monochrome), BC505LM (5M 2/3 type, monochrome). Suffix [G] is attached to the monochrome models, suffix [CG] or [CF] are attached to the color models.
  • Page 15 * Suffix [F] is not shown in the common part of specifications. ● Compact and lightweight This camera is compact and lightweight; it is easy to integrate into industrial equipment. ● EU RoHS & Chinese ROHS 14 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 16: Configuration

    To fix a camera to a tripod; attach this to the bottom of the camera. *1: Optional part. Contact your dealer / distributor for details of option units. 15 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 17: Connection

    Connection BC302LMG/BC505LMG/BC505LMC Power-over Camera Link Cable PC etc. DC +12V Frame Grabber Board complied with PoCL 16 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 18: Connector Pin Assignment

    B[10] Port C6 B[6] B[6] Port A7 A[7] A[7] A[7] Port B7 B[7] B[11] Port C7 B[7] B[7] *The port assignment is based on CamraLink standard. 17 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 19 * This camera does not include the the conformed connector. Pin No. Signal Feature Line 4 GPIO Output IO GND GPIO_Ground Ground Line 5 External Trigger Input Line 6 GPIO_Input / Output +12V DC+12V 18 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 20: Outline Drawing

    Outline Drawing 19 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 21: General Specifications

    Conductive between circuit GND and camera body insulation status * Underbar is factory default F1.4, Gain +24dB, Video level 50% (*1) at all pixels readout (*2) 20 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 22 Conductive between circuit GND and camera body insulation status * Underbar is factory default F1.4, Gain +24dB, Video level 50% (*1) at all pixels readout (*2) 21 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 23 - In addition, use a mounting screw free from defects and dirt. Otherwise, the camera may be unable to be removed. - As for the C-mount lens used combining this camera, the projection distance from bottom of the screw should use 7.9mm or less. 22 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 24: I/O Specification

    - Line5 and Line6 have a different input level. Please use input level within the voltage described in this specification. may not receive EXT_TRIG signal. Please confirm it before use. 23 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 25 Factory setting: Low active (it is possible switching by camera settings) Ouput signal: TIMER0 ACTIVE USER OUTPUT EXPOSURE ACTIVE FRAME ACTIVE FRAME TRANSFER FRAME TRIGGER WAIT 24 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 26: Timing Specification

    41.5MHz 64MHz 83MHz 1tap 20.15 31.20 40.30 BC302LMG 2tap 40.07 62.04 80.14 3tap 59.73 1tap 16.87 26.13 33.75 BC505LMG 2tap 33.59 52.01 67.17 BC505LMC 3tap 50.14 25 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 27 13.00 20.00 26.00 BC302LMG 2tap 26.00 40.33 52.00 3tap 39.00 56.13 56.13 1tap 8.15 12.54 16.31 BC505LMG 2tap 16.31 25.30 32.63 BC505LMC 3tap 24.47 36.00 36.00 26 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 28: Typical Spectral Response

    Typical Spectral Response * The lens characteristics and light source characteristics is not reflected in table. < BC302LMG / BC505LMG > < BC505LMCG > < BC505LMCF > 27 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 29: Operating Ambient Conditions

    90% or less (no condensation) ● EMC Conditions - EMI (Electro-Magnetic Interference): EN61000-6-4 FCC Part 15 Subpart B Class A KN32 - EMS (Electro-Magnetic Susceptibility): EN61000-6-2 KN35 28 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 30: Command Commnucation Protocol

    Command Commnucation Protocol BC series has Legacy protocol and GenCP as command communication protocol. The switching of communication protocol is recognized automatically from received packet. The PC application can communication to camera without switching operation of communication protocol. For Legacy protocol and GenCP, BC series has multiple register for control of camera feature.
  • Page 31: Legacy Protocol

    Actually, the camera responds to the read request as minimum data length: For example, to read data 0x10 to address 0x91, the camera responds as follows: ‘1’ ‘0’ [CR] (0x31) (0x30) (0x0D) 30 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 32: Gencp

    The communication to camera is archived by using the communication packet specificated GenCP. Please see GenCP specifications. The following figure shows the packet structure: ● READMEM_CMD ● READMEM_ACK 31 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 33 ● WRITEMEM_CMD ● WRITEMEM_ACK 32 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 34: Register Map

    0x0020 603C ○ ○ LUT Enable 0x0:OFF、0x1:ON - 0x0030 0000 LUTValue[0] 0x0030 0004 LUTValue[1] ↓ ○ ↓ Min:0x0、MAX:0xFFF - - 0x0030 3FF8 LUTValue[4094] 0x0030 3FFC LUTValue[4095] 33 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 35 0x0:Done, 0x08:Load, 0x09:Save, 0x7F:Erase - Erase: - Selects a channel of user setting when camera powers up. 0x0021 F2FC ○ - UserSetDefault 0x0:Default - 0x01:UserSet1 ~ 0x15:UserSet15 34 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 36 0x0020 21D0 ○ ○ ReverseY - 0x0:OFF, 0x1:ON 0x0:OFF 0x1:Black 0x2:White 0x3:GreyA 0x0021 F13C ○ TestPattern - - 0x4:GreyB 0x5:GreyHorzontalRamp 0x6:GreyScale(B/W model only) 0x7:ColorBar(Color model only) 0x8:GreyVerticalRamp 35 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 37 *AC: In relation to Acquisition Command (address:0x002 0303C) : If [AC] marked “〇”, the register is set to following procedure. Stop image output (0x00) → register setting / write command → Start image output (0x08) 36 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 38: Gencp Address

    - register. 0x91 Supported Baudrates 9600/115200/921600 bps 0x0001 0000 - Set baudrate. 0x00 Current Baudrate 0x00:auto recognition, 0x01:9600bps, 0x10:115200bps, 0x0001 0004 - 0x80:921600bps *3M:BC302LMG、5M:BC505LMG / BC505LMC 37 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 39: Legacy Address

    Sets number of output frame in bulk mode. 0x94 0x00 Frame number in Bulk mode 〇 0x00~0xFF 3M:0x34 0xA0 Shutter speed denominator 0x01(1)~0x8235(33333) 〇 5M:0x20 0xA4 0x01 Shutter speed numerator 0x01(1)~0x10(16) 〇 38 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 40 If camera teruned off, the data in memory for SS is erased. ※3M:BC302LMG、5M:BC505LMG/ BC505LMC Read / Write R.O. Read only W.O. Write only N.A. Not Accessible 39 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 41: Functions

    Functions This section introduces standard functions. BC series provide following functions. Category Function TransportLayerControl CameraLink Tap CameraLink tap control CameraLink CLK CameraLink clk control Baudrate Baudrate control DeviceControl DeviceControl Device information ImageFormatControl Scalable Scalable control Binning Binning control Decimation Decimation control...
  • Page 42 - - ALCGainMin ○ - - ALCGainMax ○ - - LUTControl ○ ○ ○ SequentialShutterControl ○ ○ ○ DPCControl ○ ○ ○ UserSetControl ○ ○ ○ 41 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 43: Transportlayercontrol

    (Write to 0x00 to AcquistionCommand (0x0020 303C)). After change setting of CameraLink Tap / CameraLink CLK, restart image output (Write to 0x08 to AcquistionCommand (0x0020 303C)). 42 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 44: Devicecontrol

    5.0M 2.3 B/W (ASCII) 0x0000 0143 0x0000 0144 Serial Number ex) 0100001 (ASCII) 0x0000 0183 0x0000 0184 Null User Define Name User-programmable device identifier. 〇 string 0x0000 0193 43 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 45 0x01: erase all data in User area. Sets the byte number of R/W length of user area. 0xDC 0x10 User area : byte number 0x01, 0x04, 0x08, 0x10(16) 44 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 46: Scalable

    Maximum unit size (H)×(V) 2048×1536 2448×2048 2448×2048 ( X , Y )=( 4 * i , 2 * j ) A + 4 * m Scalable 45 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 47: Binning

    (Write to 0x00 to AcquistionCommand (0x0020 303C)). After change setting of Binning Horizontal / Binning Vertical, restart image output (Write to 0x08 to AcquistionCommand (0x0020 303C)). 46 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 48: Decimation

    (Write to 0x00 to AcquistionCommand (0x0020 303C)). After change setting of Decimation Horizontal / Decimation Vertical, restart image output (Write to 0x08 to AcquistionCommand (0x0020 303C)). 47 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 49: Reverse

    Decimation Horizontal / Decimation Vertical, restart image output (Write to 0x08 to AcquistionCommand (0x0020 303C)). Control by Legacy address The change is applied immedietely by write to ReverseX register (0x8A) or ReverseY register (0x8B). 48 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 50: Pixelformat

    (0x0020 303C)). After change setting of PixelSize, restart image output (Write to 0x08 to AcquistionCommand (0x0020 303C)). Control by Legacy address The change is applied immedietely by write to Output bit register (0x87). 49 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 51: Testpattern

    TestPattern Camera supports test pattern data output. Following test patterns are available; Black White GreyA GreyB GreyHorizontalRamp GreyVerticalRamp GreyScale ColorBar (B/W model only) (Color model only) 50 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 52: Acquisitioncontrol

    -Bulk mode:TriggerSequence6 Random Trigger Shutter mode HardwareTrigger ‘ExposureTime’ register control -Level mode:TriggerSequence1 Trigger pulse width control * The camera operation not mentioned above is not supported. 51 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 53 The exposure time is determined by the pulse width of the trigger signal. TRIG Exposure FVAL LVAL DVAL ※4 DATA OUT ※1 ※2 ※3 *1= 40.4μs *2= Setting of shutter speed *3= 424.6μs *4= 54.2μs 52 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 54 Operation point of HardwareTrigger is at the edge of trigger signal, and active edge polarity is able to change by register setting. And you can add delay time from trigger edge to exposure start by register setting. 53 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 55: Exposuretimecontrol

    The exposure time is set by a rational number. The absolution value of ExposureTime is calculated by the following formula: ExposureTime (abs) = Shutter speed numerator / Shutter speed denominator [sec] 54 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 56: Digitaliocontrol

    This camera provides GPIO output selected by the register setting. And the polarity of the signal is able to switch by the register setting. The following chart shows the specifications of the selectable signals. 55 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 57: Timercontrol

    Hardware Trigger Input Internal Trigger (Selected by TriggerSource) TriggerDelay Exposure ExposureActive Timer0Active TimerTriggerSource = Line0Active Delay Duration TimerTriggerSource = FrameTrigger TimerTriggerSource = ExposureStart ※ ActiveLow Timer0Active 56 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 58: Gain

    0x1: Manua(l*) Manual Gain setting. 0x2: Auto Auto gain control(AGC) ・Control of Gain (manual) Sets Gain register (0x0020 407C). For more details information, please see “ALC Control” 57 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 59: Blacklevel

    If BlackLevel is set lower than 0[%], the image level may not be saturated. Gamma This section describes Gamma feature. This control adjusts the gamma correction of pixel intensity. output luminance Gamma input luminance 58 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 60: Sharpness

    BalanceRatio This section describes BalanceRatio feature (White balance). BC series has Manual WhiteBalance, One Push WhiteBalance (OPWB) and Auto White Balance (AWB). In AWB, R-Gain and B-Gain are adjusted automatically. In OPWB, R-Gain and B-Gain are adjusted once from RGB information of current frame.
  • Page 61 ・ALCPhotometricAreaSize In WhiteBalanceControl = Auto or OnePush set, the register setting of ALCPhotometricAreaSize is refered as the measuring luminance. For more details information, please see “ALCControl”. 60 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 62: Alccontrol

    ALCExposureValue defines a correction value for a convergence value. Final convergence value is determined by the following formula. Final convergence value = 84(Reference Luminance) * 2 (ALCExposureValue/10) 61 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 63 This function is available only in Color models. AGC range ALCGainMin ALCGainMax Minimum 0.00[dB] (*) more than ALCGainMin Maximum less than ALCGainMax 24.00[dB] (*) * initial factory setting 62 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 64: Lutcontrol

    LUTControl This function allows you to apply the LUT(input: 12it, output: 12bit) to the output images. arbitrary Output luminance Binarization Input luminance example of LUT setting 63 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 65: Sequentialshuttercontrol

    List of registers to be applied to SequentialShutter Category Register Category Register ImageFormatControl OffsetX AnalogControl Gain OffsetY BlackLevel ExposureControl ExposureTime Gamma DigitalIOControl UserOutputValueAll Sharpness LineSource BaLanceRatio CounterAndTimerControl TimerDuration LUTControl LUTEnable TimerDelay 64 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 66: Dpccontrol

    ] … register need to sort that from upper left(0, 0) → upper right (WidthMax-1, 0) → lower left (0, HeightMax-1) → lower right (WidthMax-1, HeightMax-1). 65 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 67: Usersetcontrol

    DigitalIOControl LineModeAll DPCNumber(*) LineInverterAll DPCEntryX(*) UserOutputValueAll DPCEntryY(*) LineSelector LineSource (*) DPC and SequentialShutter entries are stored to a single channel. Entries are shared with all channels. 66 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 68: Status / Expanded Status

    Write Save 0x0001 0000 R.O. 0x91 Supported Baudrates 0x91 (9600, 115200, 921600bps) - 0x0001 0004 0x00 Current Baudrate Current baudrate - 0x00:auto recognition 0x01:9600bps, 0x10:115200bps, 0x80:921600bps 67 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 69: Warranty Rules

    9. Forgery product, products which does not have proper serial number, products of which serial number is forged, damaged or deleted 10. All defects that happened after the expiration for a warranty term 68 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 70: Repair

    10. The immunity from responsibility of the product is applied in the repair completion products. * Please refer for the inquiry about the software to our homepage or sales personnel. 69 / 69 D4272607A Copyright © 2016-2018 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
