BU Series

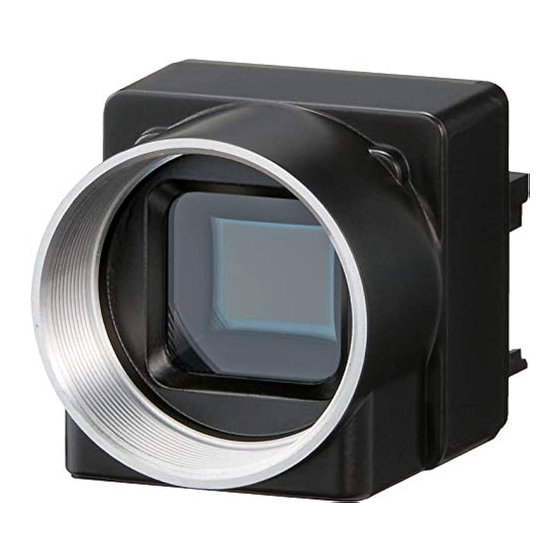

CMOS Camera
Instruction Manual
Model
B/W Camera
: BU205M / BU406M
Color Camera
: BU406MC / BU406MCF
Thank you for purchasing our product.
Before using this CMOS camera, please read through this instruction manual
carefully in order to use this product correctly and safely.
After reading, keep this instruction manual handy so that you can refer to,
whenever you need it.
Information contained in this document is subject to change without prior notice.
Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved.
D4223121H
http://www.toshiba-teli.co.jp/en/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BU406M and is the answer not in the manual?

Questions and answers

Related Manuals for Toshiba teli BU406M

Summary of Contents for Toshiba teli BU406M

  • Page 1 After reading, keep this instruction manual handy so that you can refer to, whenever you need it. Information contained in this document is subject to change without prior notice. D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 2: Table Of Contents

    LEDIndicatorLuminance ......................69 DPCControl ..........................70 SequentialShutterControl ......................72 Appendix ........................75 MultiFrame and Bulk function difference ..................75 Warranty rules ......................78 Repair .......................... 79 1 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 3: Safety Precautions

    This sign indicates MANDATORY ACTION (You are required to do). MANDATORY The content of action is shown by a picture or words beside the symbol. 2 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 4: General Handing

     Do not be handled roughly, damaged, fabricated, bent forcefully, pulled, twisted, bundled, placed under heavy objects or heated the power cable and the connection cable. Avoid Otherwise, fire or electric shock may result. 3 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 5 (every approx five years). Accumulation of dust inside the equipment may result in fire or electric shock. For inspection and cleaning costs, contact your sales representative. Instruction 4 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 6: Cases For Indemnity (Limited Warranty)

    ● The item that is not described in specifications of this product is out of the guarantee. ● The case of damages or losses which are caused by incorrect connection of the cable is out of the guarantee. 5 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 7: Restriction For Use

    (*2): Equipment relating to maintenance of public services/functions involving factors of safety refers to. - Traffic control systems for air transportation, railways, roads, or marine transportation - Equipment for nuclear power generation - Equipment related to the above 6 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 8: Notes On Using This Product

    C-mount lens 10mm or less ● Mounting to pedestal When mounting this product to a pedestal, make sure carefully that lens doesn’t touch with the pedestal. 7 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 9 Never use alcohol, benzene, thinner, or other chemicals because such chemicals may damage or discolor the paint and indications. If the image pickup surface becomes dusty, contaminated, or scratched, consult your sales representative. 8 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 10 The brightness of the upper part of the screen may be different from that of the lower part. Note that this is a characteristic of a CMOS image sensor and is not a fault. 9 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 11 This information is applicable for People's Republic of China only. リサイクルに関する情報（包装物） 有关再利用的信息(包装物) Information on recycling of wrapping composition 内部緩衝材料・袋 内部缓冲材料·袋 箱／箱子／Box Internal buffer materials・Bag ペーパーボード 纸板 Paper board 10 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 12: Installation

    ● TOSHIBA TELI CORPORATION Top Page http://www.toshiba-teli.co.jp/en/ ● Service & Support https://www.toshiba-teli.co.jp/cgi/ss/en/service.cgi Please refer to the TeliCamSDK startup guide, about Operation environment, Installation, and Setup. 11 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 13: Specifications

    Overview This BU CMOS series is an integrated-(one-body)-type camera that adopts a global shutter CMOS sensor. These are BU205M (2M 2/3 type) BU406M (4M 1/1 type). Suffix [C] or [CF] are attached to the color models. For video output and camera control, the USB 3.0 interface standard is adopted for high transfer rate, and it is easy to integrate into industrial equipment.
  • Page 14 * IIDC2 is a unified standard established by JIIA (Japan Industrial Association). * e-CON (Easy & Economy connector) is a sensor connector that is normalized by the manufacturer of the sensor, FA equipment and connector. 13 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 15: Configuration

    *1: Optional part. Contact your sales representative for details of option units. *2: Commercial items. 14 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 16: Connection

    Please confirm wires’ specifications before use them. Lost packets may occur by an electrical characteristic of the transmission line of USB3.0. (USB3.0 Interface Card, USB3.0 Cable, and USB3.0 HUB). 15 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 17: Connector Pin Assignment

    Pin assignment ↑TOP *Above figure is connector view from insert side. Pin No. Signal Function GPIO(Line2) GPIO Output GPIO(Line1) GPIO Output Ground TRIG_IN(Line0) Trigger Input 16 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 18: Outline Drawing

    Outline Drawing 17 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 19: General Specifications

    29 mm(W) x 29 mm (H) x 13 mm (D) (Not including protrusion) Mass Approximately 32g Lens mount C-mount Flange back 17.526mm Camera body grounding: No conductive between circuit GND and camera body insulation status 18 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 20 Camera body grounding: No conductive between circuit GND and camera body insulation status *1 F1.4, Gain: Maximum (x8), video level: 50% *2 at the all pixel readout 19 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 21 Depends on your PC and USB3.0 interface card configurations, images may not be captured properly (e.g. dropping frames). In this case, change frame rate setting lower. 20 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 22: Led Status

    Slow flash orange (ON: 400ms, OFF: 1600ms) Data being transferred Solid Green Error during data transfer Solid Red (Time period: 500ms) Stand-by Super slow flash orange (ON:200ms, OFF: 2800ms) 21 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 23: I/O Specification

    Signal Source : TIMER0 ACTIVE USER OUTPUT EXPOSURE ACTIVE FRAME ACTIVE FRAME TRANSFER FRAME TRIGGER WAIT ● Circuit diagram - Trigger Input Inside DC3.3V 10kΩ 22 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 24: Timing Specification

    BU406M/C 11.1 11.1 application. * If the value of T2 is not set by the application, it will be the same as T1. 23 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 25 When the interval of the input trigger signal is extremely short, or when the trigger signal is noisy, there is a possibility of causing the malfunction. In this case, please input a proper trigger signal. 24 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 26: Typical Spectral Response

    Typical Spectral Response * The lens characteristics and light source characteristics is not reflected in table. ● BU205M / BU406M 25 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 27 ● BU406MC ● BU406MCF 26 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 28: Operating Ambient Conditions

    "Thermal design manual" on our HP. ● EMC Conditions - EMI (Electro-Magnetic Interference): EN61000-6-4 FCC Part 15 Subpart B Class A - EMS (Electro-Magnetic Susceptibility): EN61000-6-2 27 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 29 (Hitachi cable, Ltd.) Connection: e-CON GPIO(Line2) GPIO(Line2) GPIO(Line1) GPIO(Line1) TRIG IN(Line0) TRIG IN(Line0) Please confirm the EMC adaptability when it combines with parts other than them. 28 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 30: Functions

    EventControl EventControl Event packet control VenderUniqueControl FrameSynchronization Frame synchronization control LEDIndicatorLuminance LED luminance control DPCControl DPCControl Defect pixel correction control SequentialShutterControl SequentialShutterControl Sequential shutter control 29 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 31 ○ ○ ○ FrameSynchronization ○ ○ ○ LEDIndicatorLuminance ○ ○ ○ DPCControl ○ ○ ○ SequentialShutterControl Details of each feature are described in following pages. 30 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 32: Bootstrap Registers

    When opening and closing the stream channel, it is required to control StreamEnable plus SDK setups on your application. Please refer to the TeliU3vSDK for details. 31 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 33: Devicecontrol

    Beginner Returns the model name. DeviceManufacturerInfo Beginner Returns the manufacturer information. DeviceVersion Beginner Returns the device version. DeviceID Beginner Returns the device ID (serial number). 32 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 34: Imageformatcontrol

    Changing “ImageFormatSelector” register value is invalid during image stream data output. Decimation function is disabled when the camera is running in Scalable mode. Scalable function is disabled when the camera is running in Decimation mode. 33 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 35: Scalable

    Sets horizontal offset (in pixels) from the origin to the region of interest. OffsetY Beginner Sets vertical offset (in pixels) from the origin to the region of interest. 34 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 36 Maximum unit size (*) 2048x1088 2048x2048 * initial factory setting ● Note Changing “Width”, “Height”, “OffsetX”, “OffsetY” register value is invalid during image stream data output. 35 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 37: Decimation

    2048 all pixel readout 4 lines Decimation Fig. Decimation operation ● Registers Register Visibility Access Description DecimationVertical Beginner Set the number of vertical Decimation line(s). 36 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 38 Decimation function is disabled when the camera is running in Scalable mode. Scalable function is disabled when the camera is running in Decimation mode. Changing “DecimationVertical” register value is invalid during image stream data output. 37 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 39: Reverse

    Set the following value to “ReverseX”, “ReverseY” registers. Setting value is Boolean type. Value Image reverse FALSE (*) Non reverse TRUE Reverse * initial factory setting ● Note 38 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 40: Pixelformat

    * initial factory setting ● Note Bayer alignment of color models is dependent on its model. Changing “PixelSize” register value is invalid during image stream data output. 39 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 41: Testpattern

    BU series supports test pattern data output. Camera provides following Test patterns; Black White GreyA GreyB GreyHorizontalRamp GreyVerticalRamp GreyScale ColorBar (B/W model only) (Color model only) Fig. Test pattern (e.x. BU406M / BU406MC) 40 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 42 All pixel = 170 @Mono8 GreyB All pixel = 85 @Mono8 GreyHorizontalRamp Horizontal Ramp GreyVerticalRamp Vertical Ramp GreyScale Grey scale ColorBar Color bars * initial factory setting ● Note 41 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 43: Acquisitioncontrol

    - Set the number of frames to transfer (In MultiFrame mode) Set the number of frames to transfer to “AcquisitionFrameCount”. Setting value is Integer type. 42 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 44 Depends on your PC or USB3.0 interface card configurations, images may not be captured normally (e.g. frame drops may occur). In this case, change to frame rate setting lower. 43 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 45: Imagebuffer

    - Read images from the buffer Read the number of AcquisitionFrameCount image(s) from the buffer by executing “ImageBufferRead” register command (it is equivalent to write value 10 to “AcquisitionCommand” register). 44 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 46 [Start] button in TeliU3vViewer can’t deal with “StreamEnable” register alone. Please substitute procedure “StreamEnable” = 1 to following instructions. - Push [Start] button on TeliU3vViewer main window. - Execute [AcquisitionStop] in XML window. 45 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 47: Triggercontrol

    Random Trigger Shutter mode Trigger pulse width control SoftwareTrigger -Edge mode:TriggerSequence0 -Bulk mode:TriggerSequence6 “ExposureTime” register control * The camera operation not mentioned above is not guaranteed. 46 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 48 And you can add delay time from trigger edge to exposure start by register setting. Trigger signal TriggerDelay Exposure USB bus Image Fig. Trigger Delay Details of Random Trigger Shutter operation, refer to "Timing" of "Specification". 47 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 49 Set the following value to “TriggerSource” register. Setting value is Enumeration type. TriggerSource Function Line0 (*) Hardware trigger TriggerSoftware Software trigger * initial factory setting 48 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 50 When executes “TriggerSoftware” register command, software trigger command is generated. Camera starts exposure by receiving software trigger command. ● Note In SoftwareTrigger operation, the delay time from “TriggerSoftware” to exposure is not guaranteed. 49 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 51: Exposuretime

    Model BU205M BU406M/C ExposureTime (*) 5000 [μs] 11000 [μs] ExposureTimeMin 30 [μs] 30 [μs] ExposureTimeMax 16000000 [μs] 16000000 [μs] * initial factory setting ● Note 50 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 52: Digitaliocontrol

    - Select the Line of the I/O connector Set the following value to “LineSelector” register. Select the line to output “LineSource” signal. Setting value is Enumeration type. 51 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 53 Each bit corresponds to each Line (bit0=Line0, bit1=Line1). Line1 and Line2 are available. Line0 is dedicated trigger input. UserOutputValueAll Function 0 (*) Low level output High level output * initial factory setting 52 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 54 UserOutputValueAll[2] GPIO_OUT (Line2) Line2 LineModeAll LineInverterAll LineSource Fig. GPIO internal circuit diagram ● Note About the details of Timer0Active signal, refer to “TimerControl” of "Functions". 53 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 55: Timercontrol

    Beginner Sets the width of Timer0Active signal. TimerDelay Beginner Sets the delay of Timer0Active signal. TimerTriggerSource Beginner Selects the source of Timer0Active pulse to start. 54 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 56 HardwareTrigger and Software Trigger mode, and not to be responsed at FrameTriggerError. ExposureStart is available in both HardwareTrigger and Software Trigger mode, and not to be responsed at Timer0Active pulse delays TiggerDelay+TimerDelay[us]. FrameTriggerError. 55 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 57: Gain

    Setting the gain value too high increases noises. When you adjust the brightness of the image, I ask you to have final image quality checked with your environment. 56 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 58: Blacklevel

    Set the following value to “BlackLevel” register. Setting value is Float type. BlackLevel Value Minimum -25.00[%] Maximum +25.00[%] * initial factory setting = 0.00[%] ● Note 57 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 59: Gamma

    Set the following value to “Gamma” register. Setting value is Float type. Gamma Value Minimum 0.45 Maximum (*) 1.00 * initial factory setting ● Note 58 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 60: Balanceratio

    Setting value is Enumeration type. BalanceRatioSelector Function None (*) None of component is selected. BalanceRatio = Red Gain Blue BalanceRatio = Blue Gain * initial factory setting 59 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 61 Too high white balance gain increases noises. After adjusting the white balance of the image, I ask you to have final image quality checked with your environment. 60 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 62: Balancewhiteauto

    No operation Once Execute auto white balance once. * initial factory setting ● Note BalanceRatio and BalanceWhiteAuto controls are available in following PixelForamt modes. Bayer*8 61 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 63: Lutcontrol

    “LUTIndex” register value is input level of LUT, and “LUTValue” register value is output level of LUT. LUTIndex / LUTValue setting value Minimum (*) Maximum 1023 * initial factory setting ● Note 62 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 64: Usersetcontrol

    LineInverterAll UserOutputValueAll LineSelector LineSource TimerTriggerSource CounterAndTimerControl TimerDuration TimerDelay (*) DPC and SequentialShutter entries are stored to a single channel. Entries are shared with all channels. 63 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 65 * initial factory setting ● Note “UserSetDefault” register value is stored to non-volatile memory when “UserSetSave” is executed. Thus, “UserSetSelector” shall be set other than “Default” in advance. 64 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 66: Eventcontrol

    : End of transferring streaming data. (6) ExposureStart : Start of Exposure. (7) ExposureEnd : End of Exposure. (8) Timer0Start : Start of Timer0. (9) Timer0End : End of Timer0. 65 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 67 Returns the timestamp at the time of Event. EventTimer0StartData EventTimer0StartTimestamp Expert Returns the timestamp at the time of Event. EventTimer0EndData EventTimer0EndTimestamp Expert Returns the timestamp at the time of Event. 66 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 68 Set the following value to “EventNotification” register. The setting value is Enumeration type. setting value Event notification Off (*) Inactive Active * initial factory setting ● Note 67 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 69: Framesynchronization

    Set the following value to “FrameSynchronization” register. Setting value is Enumeration type. setting value function Internal synchronization Bus (*) Bus synchronization * initial factory setting ● Note 68 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 70: Ledindicatorluminance

    Set the following value to “LEDIndicatorLuminance” register. Setting value is Float type. LEDIndicatorLuminance Value Minimum 0.00(%) Maximum (*) 100.00(%) * initial factory setting ● Note 69 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 71: Dpccontrol

    DPCIndex and setting coordinates DPCNumber DPCIndex Minimum (*) Maximum * initial factory setting DPCEntryX DPCEntryY Minimum (*) Maximum WidthMax-1 HeightMax-1 * initial factory setting 70 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 72 DPCEntryX and Y shall be sorted in order from the top left to the top right and to the bottom left to the bottom right. (X,Y)=(0,0) (WidthMax-1,0) DPCIndex[0] DPCIndex[1] DPCIndex[2] DPCIndex[3] DPCIndex[4] (0,HeightMax-1) (WidthMax-1,HeightMax-1) Fig. Sorting of DPCIndex and DPCEntryX, Y 71 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 73: Sequentialshuttercontrol

    Sets the number of Index to repeat the sequence. SequentialShutterIndex Expert Sets the sequence number to register. SequentialShutterEntry Expert Sets the UserSet number to register to the sequence. 72 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 74 For example, If you set [3] to “SequentialShutterTerminateAt” register, camera captures the images of Index1, Index2 and Index3. Then repeats capturing the images of Index1, Index2… 73 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 75 List of registers to be applied to SequentialShutter Category Register Category Register OffsetX Gain ImageFormatControl OffsetY BlackLevel AnalogControl ExposureControl ExposureTime Gamma UserOutputValueAll BalanceRatio DigitalIOControl LineSource LUTControl LUTEnable TimerDuration CounterAndTimerControl TimerDelay 74 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 76: Appendix

    Frame 4 Frame 1 This exposure is *Exposure overlaps sensor readout. discarded. Stream USB Bus stops Frame 1 Frame 2 Frame 3 Frame 1 AcquisitionFrameCount 75 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 77 Frame 1 TriggerAdditionalParameter *Exposure overlaps sensor readout. *Exposure time is determined by ExposureTime setting. Stream USB Bus stops Frame 1 Frame 2 Frame 3 Frame 1 76 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 78 This exposure is discarded. TriggerAdditionalParameter *Exposure overlaps sensor readout. *Exposure time is determined by ExposureTime setting. Stream USB Bus stops Frame 1 Frame 2 Frame 1 AcquisitionFrameCount 77 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 79: Warranty Rules

    9. Forgery product, products which does not have proper serial number, products of which serial number is forged, damaged or deleted 10. All defects that happened after the expiration for a warranty term 78 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

  • Page 80: Repair

    10. The immunity from responsibility of the product is applied in the repair completion products. * Please refer for the inquiry about the software to our homepage or sales personnel. 79 / 79 D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...
  • Page 81 □ It sometimes occurs. □ It occurs, after time passes. （ □ Others ） <For dealer use> Reception date : Receipt No. : JOB No. : Check : D4223121H Copyright © 2013 -2016 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/...

This manual is also suitable for:
