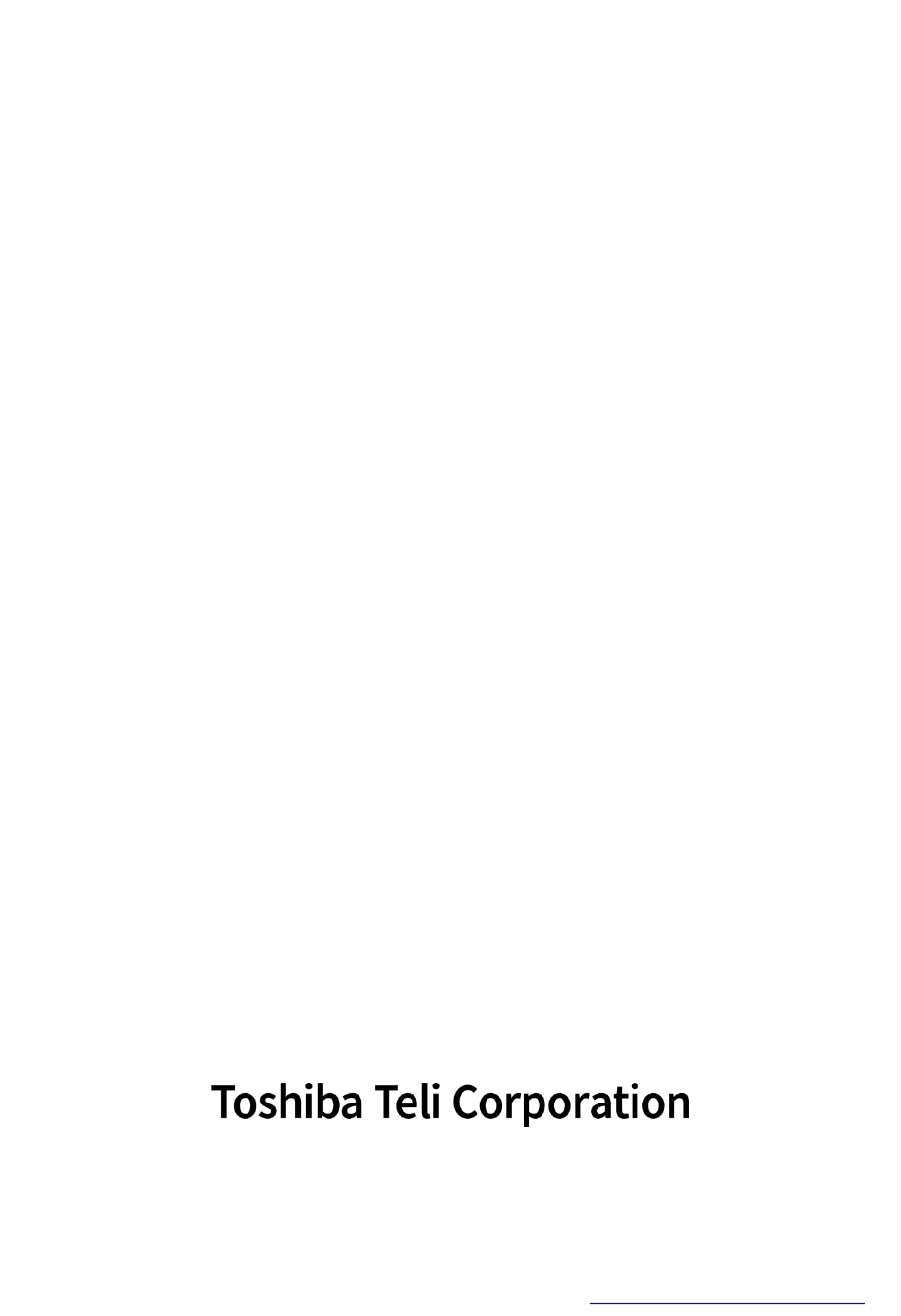

CMOS Camera
BU Series
BU132M
Specifications
Information contained in this document is subject to change without prior notice.
Standard name might be trade mark of each company.
D4256795C
Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved.
http://www.toshiba-teli.co.jp/en/index.htm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BU132M and is the answer not in the manual?

Questions and answers

Related Manuals for Toshiba teli BU132M

Summary of Contents for Toshiba teli BU132M

  • Page 1 CMOS Camera BU Series BU132M Specifications Information contained in this document is subject to change without prior notice. Standard name might be trade mark of each company. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 2: Table Of Contents

    Configuration ............................. 7 Optional part ............................7 Functions ............................8 Specifications ..........................16 Timing chart ............................. 25 Warranty rules ..........................27 Repair ............................... 28 10. Outline Drawing ..........................29 D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 3: Restriction For Use

    (*2) :Equipment relating to maintenance of public services/functions involving factors of safety refers - Traffic control systems for air transportation, railways, roads, or marine transportation - Equipment for nuclear power generation - Equipment related to the above D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 4: Cases For Indemnity (Limited Warranty)

     Expenses we bear on this product shall be limited to the individual price of the product.  The item that is not described in specifications of this product is off the subject of the guarantee.  The attachment mistake of a cable. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 5: Usage Precautions

    If an intense magnetic or electromagnetic field is generated near the camera or connection cable, noise may be generated on the screen. If this occurs, move the camera or the cable. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 6 The brightness of the upper part of the screen may be different from that of the lower part. Note that this is a characteristic of a CMOS image sensor and is not a fault. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 7: Overview

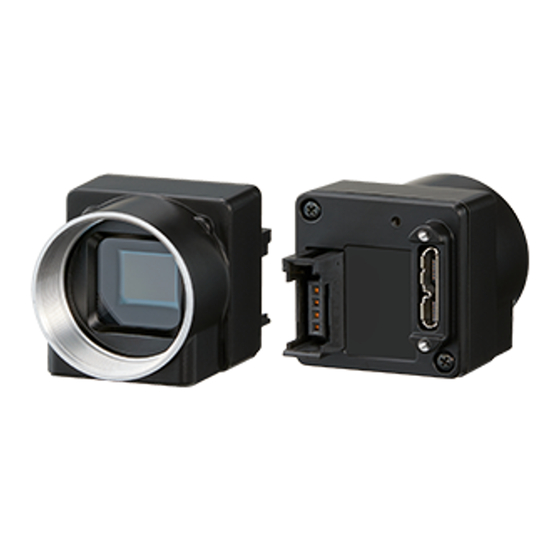

    Overview BU132M is an integrated-(one-body)-type camera that adopts a global shutter CMOS sensor (1.3M type1/1.8). For video output and camera control, the USB 3.0 interface standard is adopted for high transfer rate, and it is easy to integrate into industrial equipment.
  • Page 8 Selectable video output area. This mode achieves higher frame rate by reducing vertical output area. And reduces occupied data rate of USB bus by reducing horizontal output area. 2.10 Binning BU132M have binning. In this mode, pixel data is combined by vertical and horizontal. Binning achieves high sensitivity image. 2.11 Decimation Camera reads all effective areas at high speed by skipping lines.

  • Page 9: Configuration

    * No application software and manuals are attached to this camera. Optional part - Camera mounting kit Model name: CPTBU, CPTBUBG * Contact your dealer / distributor for details of option units. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 10: Functions

    Arbitrary curve and binarization are possible by using 10 bit input and 10 bit output LUT. Exposure Time Manual exposure time control is available. Exposure time is adjustable by control register of the sensor. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 11 Image Notes on Random Trigger Shutter : BU132M cannot accept Overlap Trigger (Trigger signal during image read-out). Please make sure that trigger signal is acceptable by observing FrameTriggerWait (GPIO signal) and so on. In the period when FrameTriggerWait signal is inactive, user must not input external trigger signal to this camera.
  • Page 12 Note on Sequential Shutter: - In Sequential Shutter mode, window size is unchangeable. Trigger Delay You can add the delay between trigger signal input and the start of exposure. Image D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 13 Valid Valid Valid Valid AntiGlitch Circuit Edge Edge Edge Edge Output Invalid Edge AntiChattering Insensible Insensible Value Time Time High AntiChattering Circuit Valid Valid Output Signal Signal D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 14 : End of transferring streaming data. : Start of Exposure. (6) ExposureStart (7) ExposureEnd : End of Exposure. (8) Timer0Start : Start of Timer0. (9) Timer0End : End of Timer0. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 15 An External trigger is input during this period, exposure starts immediately. EXT_TRIG Exposure Sensor Output USB Streaming Delay Duration Timer0Active ExposureActive FrameActive FrameTransfer Active FrameTrigger Wait * ActiveLow D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 16 In the scalable mode, camera reads out only necessary area at the normal speed and reads out other area at high speed. The trigger interval can be shorter when the vertical height size is small. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 17 5.13 Binning BU132M has 2 x 2 binning. In the binning, pixel data is combined by vertical and horizontal. When you set up a value of the one side for horizontal or vertical binning, the other side of the value is set up automatically.

  • Page 18: Specifications

    Horizontal ramp waveform, Vertical ramp waveform, Grey scale(factory setting : OFF) Power supply DC +5V5% (from USB connector) Power consumption(*1) 1.7W (maximum) (*1) at the all pixel readout D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 19 Low: 0 to 0.5V, High: 2.0 to 24.0V Polarity High active / Low active (factory setting : Low active) Pulse width 50μs (minimum) Input impedance High impedance D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 20 - Pin 3 is signal ground. It is conducted with camera frame. Using shield cable, terminal processing of the shield is referred as above. - Please confirm the EMC adaptability in whole of your system. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 21 Line0Active, ExposureStart, FrameTrigger Note on Input Level: - Line0 and Line2 have a different input level. Please use input level within the voltage described in this specification. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 22 Flash orange (ON: 200ms, OFF: 800ms) Data being transferred Fast flash green (ON:60ms, OFF:20ms) Error during data transfer Solid Red (Time period: 500ms) Stand-by Super slow flash orange (ON:200ms, OFF: 2800ms) D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 23 29 mm(W) * 29 mm (H) * 16 mm (D) (Not including protrusion) Mass approx. 32g Lens mount C-mount Flange back 17.526mm Camera body grounding Conductive between circuit GND and camera body insulation status D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 24 UL1533 (AWG28) (Hitachi Cable, Ltd.) Connection: e-CON GPIO(Line2) GPIO(Line2) GPIO(Line1) GPIO(Line1) TRIG IN TRIG IN Please confirm the EMC adaptability when it combines with parts other than them. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 25 ↑TOP * Above figure is connector view from insert side. Pin No. Signal Name Function Line2 GPIO Input / Output Line1 GPIO Output Ground Line0 GPIO Input D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 26 6.14 Typical spectral response The lens characteristics and light source characteristics is not reflected in table. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 27: Timing Chart

    In Manual shutter mode (at all pixels readout) Exposure Sensor Output Image Image USB Streaming Image Image Model Name Format [ms] [ms] BU132M Mono8, Mono10 1/(Frame Rate setting) D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 28 * The value of T1 is the same as the value of normal shutter mode. * T3 is typical value. Notes of Random Trigger Shutter : BU132M cannot accept Overlap Trigger (Trigger signal during image read-out). Please make sure that trigger signal is acceptable by observing FrameTriggerWait (GPIO signal) and so on.

  • Page 29: Warranty Rules

    9. Forgery product, products which does not have proper serial number, products of which serial number is forged, damaged or deleted 10. All defects that happened after the expiration for a warranty term D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 30: Repair

    10. The immunity from responsibility of the product is applied in the repair completion products. * Please refer for the inquiry about the software to our homepage or sales personnel. D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 31: Outline Drawing

    Outline Drawing D4256795C Copyright © 2016 - 2019 Toshiba Teli Corporation, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
