Toshiba teli DU657MC Manual

High-resolution cmos camera
Hide thumbs Also See for DU657MC:
Table of Contents

Advertisement

Quick Links

Download this manual

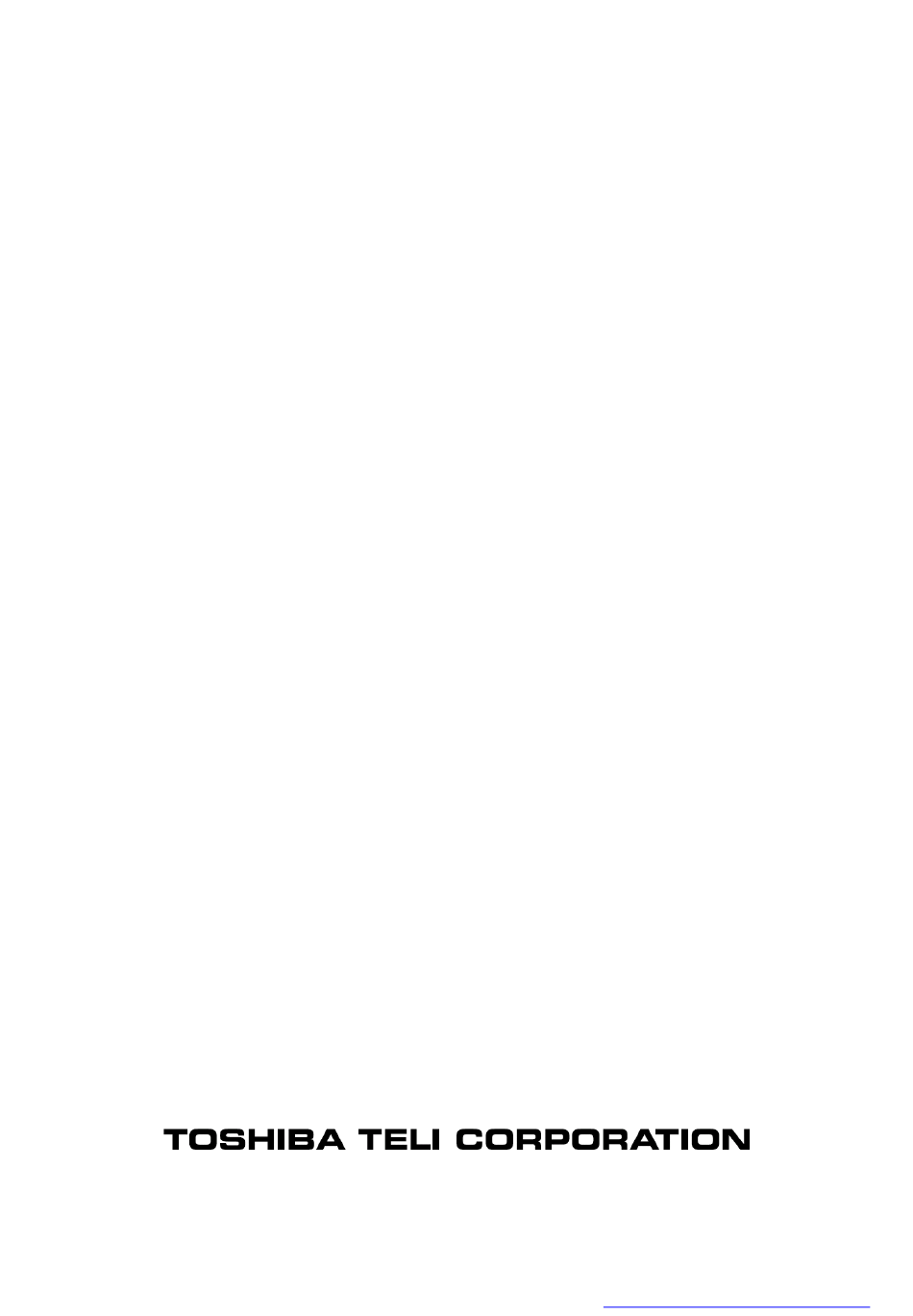

High-Resolution
CMOS Camera
DU657M
DU657MC
Specifications
Information contained in this document is subject to change without prior notice.
D4241118D
Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved.
http://www.toshiba-teli.co.jp/en/index.htm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DU657MC and is the answer not in the manual?

Questions and answers

Related Manuals for Toshiba teli DU657MC

Summary of Contents for Toshiba teli DU657MC

  • Page 1 High-Resolution CMOS Camera DU657M DU657MC Specifications Information contained in this document is subject to change without prior notice. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 2: Table Of Contents

    Configuration ..............................7 Optional part ..............................7 Functions ................................ 8 Specifications .............................. 16 Timing chart ..............................24 Warranty rules ............................. 26 Repair ................................27 10. Outline Drawing ............................28 D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 3: Restriction For Use

    (*2) :Equipment relating to maintenance of public services/functions involving factors of safety refers - Traffic control systems for air transportation, railways, roads, or marine transportation - Equipment for nuclear power generation - Equipment related to the above D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 4: Cases For Indemnity (Limited Warranty)

     Expenses we bear on this product shall be limited to the individual price of the product.  The item that is not described in specifications of this product is off the subject of the guarantee.  The attachment mistake of a cable. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 5: Usage Precautions

    If an intense magnetic or electromagnetic field is generated near the camera or connection cable, noise may be generated on the screen. If this occurs, move the camera or the cable. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 6 The brightness of the upper part of the screen may be different from that of the lower part. Note that this is a characteristic of a CMOS image sensor and is not a fault. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 7: Overview

    Features High speed output at High-resolution pixel The TOSHIBA TELI proprietary 1.1 type 6.55Mega pixels High-resolution CMOS sensor outputs the entire 6.55Mega pixels in a speed as high as maximum 55fps. Global shutter As it employs a global electronic shutter similar to a CCD image sensor, clear images of even fast-moving object are obtainable with less blur.
  • Page 8 * IIDC2 is a unified standard established by JIIA (Japan Industrial Association). * e-CON (Easy & Economy connector) is a sensor connector that is normalized by the manufacturer of the sensor, FA equipment and connector. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 9: Configuration

    * No application software and manuals are attached to this camera. Optional part - Camera mounting kit Model name: CPTC6M * Contact your dealer / distributor for details of option units. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 10: Functions

    (OPWB). Select the mode to suit the subject and purpose. 5.6.1 MWB R/B gain can be set independently. 5.6.2 OPWB When OPWB is executed, the camera adjusts R/B gain automatically. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 11 - When the interval of the input trigger signal is extremely short, or when the trigger signal is noisy, there is a possibility of causing the malfunction. In this case, please input a proper trigger signal. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 12 - In Sequential Shutter mode, window size is unchangeable. Trigger Delay You can add the delay between trigger signal input and the start of exposure. Trigger signal TriggerDelay Exposure USB bus Image D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 13 : End of transferring streaming data. (6) ExposureStart : Start of Exposure. (7) ExposureEnd : End of Exposure. (8) Timer0Start : Start of Timer0. (9) Timer0End : End of Timer0. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 14 An External trigger is input during this period, exposure starts immediately. EXT_TRIG Exposure CMOS Transfer USB Bus Delay Duration TIMER0 ACTIVE EXPOSURE ACTIVE FRAME ACTIVE FRAME TRANSFER FRAME TRIGGER WAIT * ActiveLow D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 15 In the scalable mode, camera reads out only necessary area at the normal speed and reads out other area at high speed. The trigger interval can be shorter when the vertical height size is small. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 16 Synchronizes exposure for multiple cameras connected to the same bus without the input of an external sync signal. 5.18.2 Internal synchronization Each camera will start the exposure at the individual timing. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 17 This DPC (Defective Pixel Correction) function corrects defective pixels from the image sensor. Specifying X and Y coordinates of the defective pixels, the defective pixels are corrected by calculation from the neighboring pixels. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 18: Specifications

    Black, White, Grey A, Grey B Horizontal ramp waveform, Vertical ramp waveform Grey scale (factory setting : OFF) Power supply DC +5V5% (from USB connector) Power consumption(*1) 3.6Ｗ (maximum) D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 19 Horizontal ramp waveform, Vertical ramp waveform Color bars (factory setting : OFF) Power supply DC +5V5% (from USB connector) Power consumption(*1) 3.6Ｗ (maximum) (*1) at the all pixel readout (*2) with IR-cut filter D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 20 - The brightness of the upper part of the screen may be different from that of the lower part. Note that this is a characteristic of a CMOS image sensor and is not a fault. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 21 SuperSpeed connected, waiting for trigger Flash orange (ON: 200ms, OFF: 800ms) Data being transferred Solid Green Error during data transfer Solid Red (Time period: 500ms) Stand-by Super slow flash orange (ON:200ms, OFF: 2800ms) D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 22 When you check the combination between the lens and camera, be sure to use the lens you actually use. Lens mount section shape, please refer to the outline drawing. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 23 - Shielded wire UL1533 (AWG28) (Hitachi Cable, Ltd.) Connection: e-CON GPIO(Line2) GPIO(Line2) GPIO(Line1) GPIO(Line1) TRIG IN TRIG IN Please confirm the EMC adaptability when it combines with parts other than them. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 24 * Matching connector is not an accessory of this product. Pin assignment ↑TOP * Above figure is connector view from insert side. Pin No. Signal Name Function GPIO(Line2) GPIO Output GPIO(Line1) GPIO Output Ground TRIG_IN Trigger Input D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 25 6.13 Typical spectral response The lens characteristics and light source characteristics is not reflected in table. <DU657M> < DU657MC> D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 26: Timing Chart

    Default Frame Rate [ms] Frame Rate setting DU657M/C 18.2 18.2 by the application. * If the value of T2 is not set by the application, it will be the same as T1. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 27 - When the interval of the input trigger signal is extremely short, or when the trigger signal is noisy, there is a possibility of causing the malfunction. In this case, please input a proper trigger signal. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 28: Warranty Rules

    9. Forgery product, products which does not have proper serial number, products of which serial number is forged, damaged or deleted 10. All defects that happened after the expiration for a warranty term D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 29: Repair

    10. The immunity from responsibility of the product is applied in the repair completion products. * Please refer for the inquiry about the software to our homepage or sales personnel. D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...

  • Page 30: Outline Drawing

    Outline Drawing D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
  • Page 31 □ It certainly occurs. □ It sometimes occurs. □ It occurs, after time passes. （ □ Others ） <For dealer use> Reception date : Receipt No. : JOB No. : Check : D4241118D Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. http://www.toshiba-teli.co.jp/en/index.htm...
