Getting started

1.1

Overview

The main features of the
• STM32 Nucleo
module (FCC ID: S9NBNRGM0AL; IC: 8976C-BNRGM0AL)
• BlueNRG-M0
– Embedded Bluetooth low energy protocol stack (GAP, GATT, SM, L2CAP, LL, RFPHY)
– Embedded
– On-board chip antenna
• Small form factor: 11.5 mmx13.5 mm
• Equipped with Arduino UNO R3 connector
• Scalable solution capable of cascading multiple boards for larger systems
• Free comprehensive development firmware library and samples for BlueNRG-MS, compatible with
STM32Cube
• RoHS compliant
1.2

Hardware requirements

The X-NUCLEO-IDB05A2
has only been performed using the
correctly, the X-NUCLEO-IDB05A2
UM2700 - Rev 1
X-NUCLEO-IDB05A2
expansion board based on the
main features:
BlueNRG-MS network processor
firmware
expansion board can be plugged onto any
NUCLEO-L053R8
must be connected to the STM32 Nucleo board as shown below.

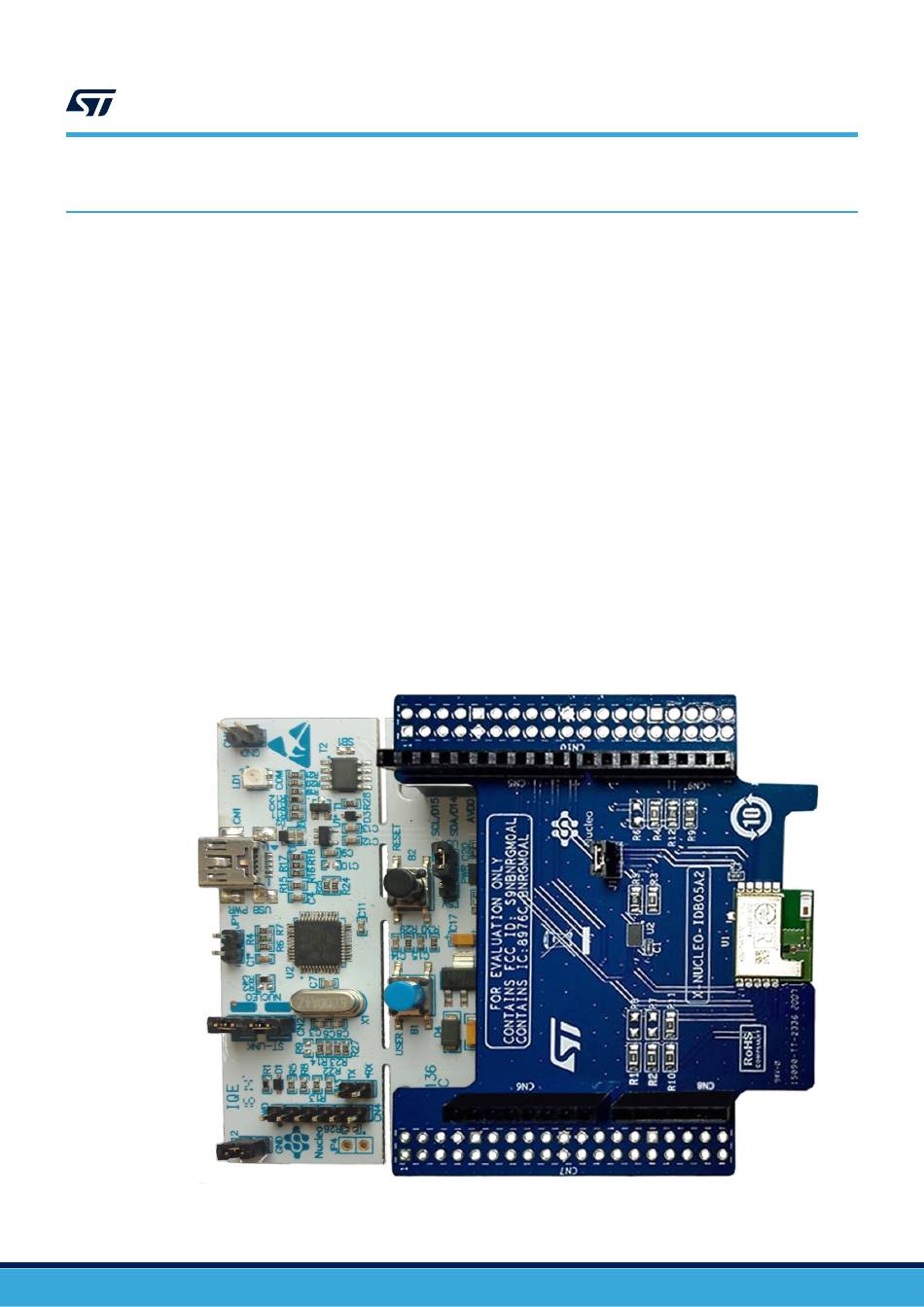

Figure 2. X-NUCLEO-IDB05A2 and STM32 Nucleo stack
expansion board are:
BlueNRG-M0 Bluetooth v4.2 compliant, FCC and IC certified
STM32
and NUCLEO-F401RE
UM2700
Getting started
Nucleo, although complete testing
development boards. To function
