UM1910
User manual
Getting started with the high power stepper motor driver
expansion board based on powerSTEP01 for STM32 Nucleo
Introduction
The X-NUCLEO-IHM03A1 is a high power stepper motor driver expansion board based on the
powerSTEP01. It provides an affordable and easy-to-use solution for driving high power bipolar stepper
motors in your STM32 Nucleo project. The fully digital motion control through speed profile generation,
dynamic positioning feedback and a complete suite of protection features offer high levels of
performance and robustness The X-NUCLEO-IHM03A1 is compatible with the Arduino UNO R3
connector and supports the addition of other boards which can be stacked to drive up to three stepper
motors with a single STM32 Nucleo board.

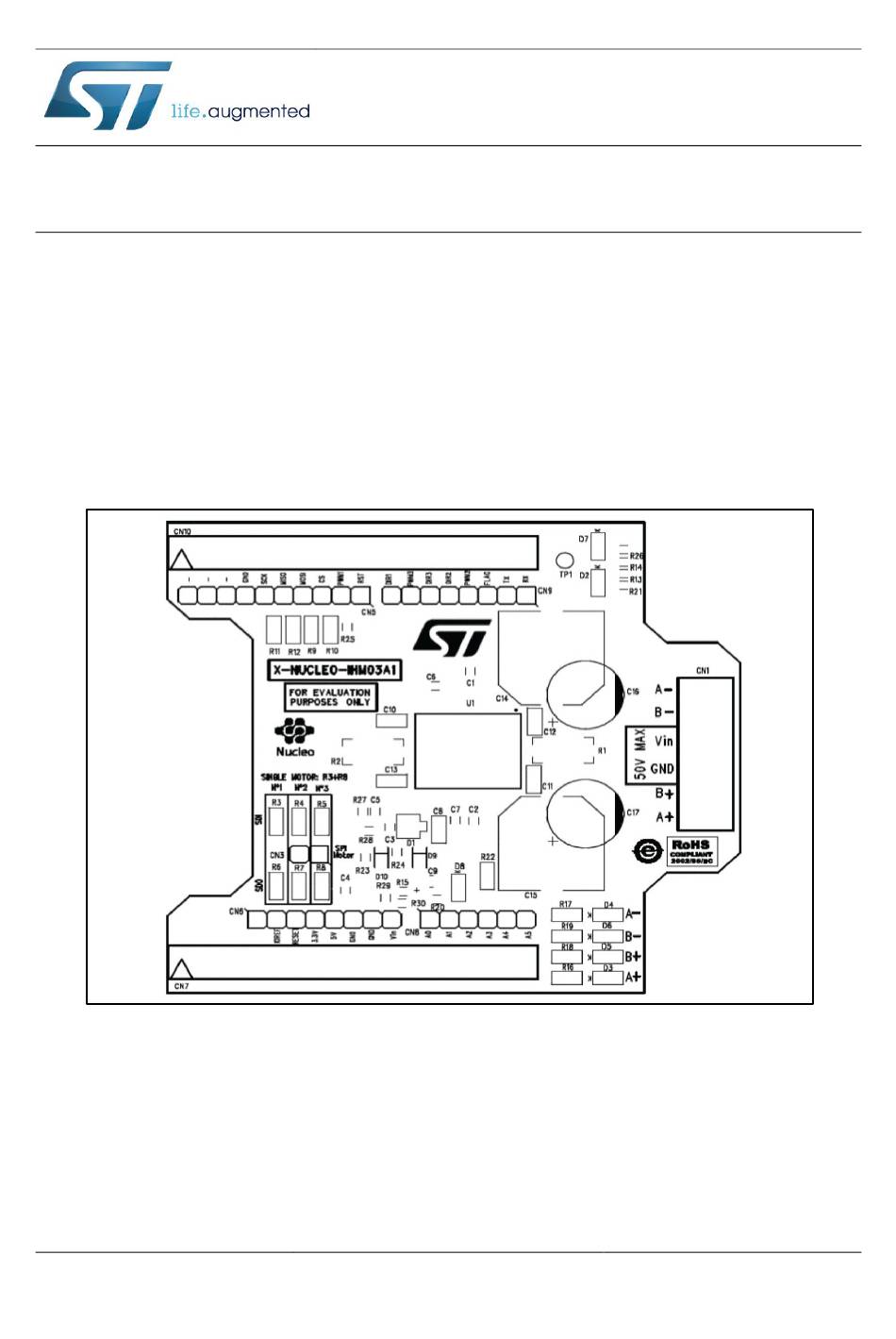

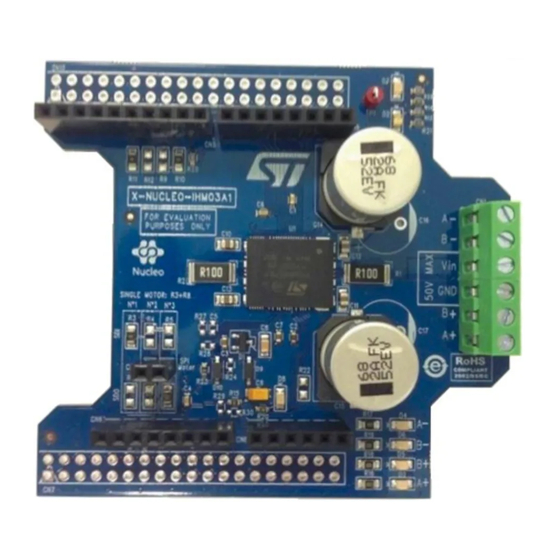

Figure 1: X-NUCLEO-IHM03A1 expansion board for STM32 Nucleo
July 2015
DocID027979 Rev 1
1/12
www.st.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ST X-NUCLEO-IHM03A1
Summary of Contents for ST X-NUCLEO-IHM03A1
- Page 1 STM32 Nucleo Introduction The X-NUCLEO-IHM03A1 is a high power stepper motor driver expansion board based on the powerSTEP01. It provides an affordable and easy-to-use solution for driving high power bipolar stepper motors in your STM32 Nucleo project. The fully digital motion control through speed profile generation,...
-
Page 2: Table Of Contents
Contents UM1910 Contents Getting started ................3 Hardware description and configuration ........4 Selecting the chip select and clock lines of the SPI ......6 Multi-motor configuration ..............6 Revision history ................11 2/12 DocID027979 Rev 1... -
Page 3: Getting Started
UM1910 Getting started Getting started The X-NUCLEO-IHM03A1 expansion board is a high power stepper motor driver covering a wide range of applications. In particular, the maximum ratings of the board are the following. Power stage supply voltage (VS) from 10.5 V to 50 V ... -
Page 4: Hardware Description And Configuration
Figure 2: Jumper and connector positions Below are the pinout details for the Arduino UNO R3 and the ST Morpho connectors. Table 1: Arduino UNO R3 connector table Connector... - Page 5 Connector Signal Remarks BUSY / SYNC Ground Ground Ground Notes: All the unlisted pins are not connected. Table 2: ST Morpho connector table Connector Signal Remarks Ground Section 2.1: "Selecting the chip SPI SCK select and clock lines of the SPI"...
-
Page 6: Selecting The Chip Select And Clock Lines Of The Spi
Hardware description and configuration UM1910 Selecting the chip select and clock lines of the SPI The chip select and the clock lines of the SPI interface can be selected via the appropriate resistors indicated in Table 3: "Chip select line selection" Table 4: "Clock line selection". - Page 7 UM1910 Hardware description and configuration Figure 3: Schematic diagram Table 6: BOM list (Part 1) Item Reference Value Q.ty Description Part number CAP CER 100nF 50V X7R C1 C6 100NF 100NF_50V_X7R_0603 0603 DocID027979 Rev 1 7/12...
- Page 8 Hardware description and configuration UM1910 Item Reference Value Q.ty Description Part number CAP CER 220nF 35V X7R 220NF 220NF_35V_X7R_0603 0603 CAP CER 470nF 25V X7R C3 C7 470NF 470NF_25V_X7R_0603 0603 CAP CER 3.3nF 50V X7R 3.3NF 3.3NF_50V_X7R_0603 0603 CAP NP 0603 C_NP_0603 CAP CER 47nF 100V 47NF...
- Page 9 UM1910 Hardware description and configuration Item Reference Value Q.ty Description Part number RES 0.1 OHM 5% 2W R1 R2 0R1_5%_2512 2512 R3 R8 R10 RES 0 OHM 5% 1/8W 0R_5%_0805 0805 R4-R7 R9 RES NP 0805 R_NP_0805 R12 R22 R13 R25 RES 39K OHM 5% 1/10W 39K_5%_0603 0603...
- Page 10 Hardware description and configuration UM1910 Item Manufact. Manuf. Part number Distributor Distributor Part number KEYSTONE KEYSTONE 5000 FARNELL 1463076 STMICROELECTRONICS POWERSTEP01 10/12 DocID027979 Rev 1...
-
Page 11: Revision History
UM1910 Revision history Revision history Table 8: Document revision history Date Revision Changes 06-Jul-2015 Initial release. DocID027979 Rev 1 11/12... - Page 12 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
