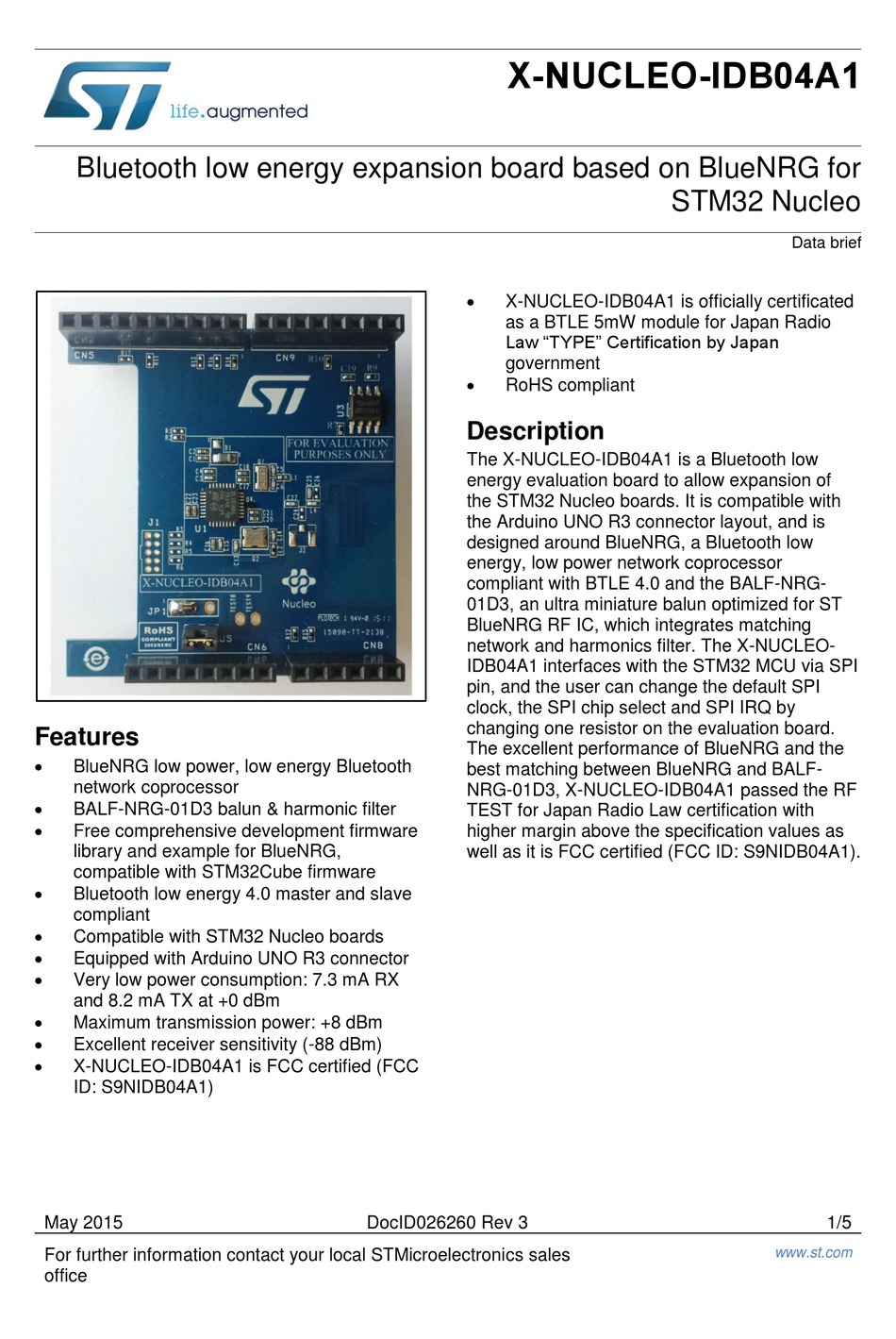

ST X-NUCLEO-IDB04A1 Quick Start Manual

Bluetooth low energy expansion board based on BlueNRG for

Features


BlueNRG low power, low energy Bluetooth
network coprocessor

BALF-NRG-01D3 balun & harmonic filter

Free comprehensive development firmware
library and example for BlueNRG,
compatible with STM32Cube firmware

Bluetooth low energy 4.0 master and slave
compliant

Compatible with STM32 Nucleo boards

Equipped with Arduino UNO R3 connector

Very low power consumption: 7.3 mA RX
and 8.2 mA TX at +0 dBm

Maximum transmission power: +8 dBm

Excellent receiver sensitivity (-88 dBm)

X-NUCLEO-IDB04A1 is FCC certified (FCC
ID: S9NIDB04A1)
May 2015
For further information contact your local STMicroelectronics sales
office
X-NUCLEO-IDB04A1

X-NUCLEO-IDB04A1 is officially certificated
as a BTLE 5mW module for Japan Radio
Law "TYPE" Certification by Japan
government

RoHS compliant

Description

The X-NUCLEO-IDB04A1 is a Bluetooth low
energy evaluation board to allow expansion of
the STM32 Nucleo boards. It is compatible with
the Arduino UNO R3 connector layout, and is
designed around BlueNRG, a Bluetooth low
energy, low power network coprocessor
compliant with BTLE 4.0 and the BALF-NRG-
01D3, an ultra miniature balun optimized for ST
BlueNRG RF IC, which integrates matching
network and harmonics filter. The X-NUCLEO-
IDB04A1 interfaces with the STM32 MCU via SPI
pin, and the user can change the default SPI
clock, the SPI chip select and SPI IRQ by
changing one resistor on the evaluation board.
The excellent performance of BlueNRG and the
best matching between BlueNRG and BALF-
NRG-01D3, X-NUCLEO-IDB04A1 passed the RF
TEST for Japan Radio Law certification with
higher margin above the specification values as
well as it is FCC certified (FCC ID: S9NIDB04A1).
