Getting started with the X-NUCLEO-IKS4A1 motion MEMS and environmental
Introduction
The
X-NUCLEO-IKS4A1
is a motion MEMS and environmental sensor evaluation board kit consisting of the main board
NUCLEO-IQS4A1, which hosts the motion MEMS and environmental sensors, and the detachable add-on board
MKE001A, which hosts the Qvar swipe electrodes.
It is compatible with the Arduino UNO R3 connector layout and features the
accelerometers, the
LIS2MDL
sensor, the
SHT40AD1B
humidity and temperature sensor, and the
The
X-NUCLEO-IKS4A1
interfaces with the STM32 microcontroller via the I²C pin or, for external sensors mounted on DIL24
adaptor, SPI Pins.
UM3239 - Rev 1 - October 2023
For further information contact your local STMicroelectronics sales office.
3-axis magnetometer, the
LIS2DUXS12
Figure 1.

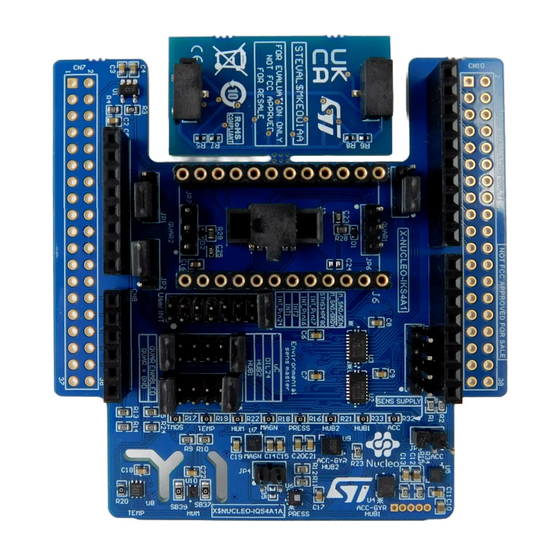

X-NUCLEO-IKS4A1 expansion board
sensor expansion board for STM32 Nucleo
LSM6DSO16IS
3-axis accelerometer, the
STTS22H
temperature sensor.
UM3239
User manual
X-
STEVAL-
and
LSM6DSV16X
MEMS 3D
LPS22DF
MEMS pressure
www.st.com
