UM1765
User manual
X-NUCLEO-IDB04A1 Bluetooth low energy expansion board
based on BlueNRG for STM32 Nucleo
Introduction
This document provides detailed hardware requirements and board connections for the X-
®
NUCLEO-IDB04A1 Bluetooth
low energy (BLE) evaluation board based on BlueNRG for
STM32 Nucleo. This board is part of STMicroelectronics' offering of evaluation boards
designed around the BlueNRG Bluetooth low energy wireless network processor.

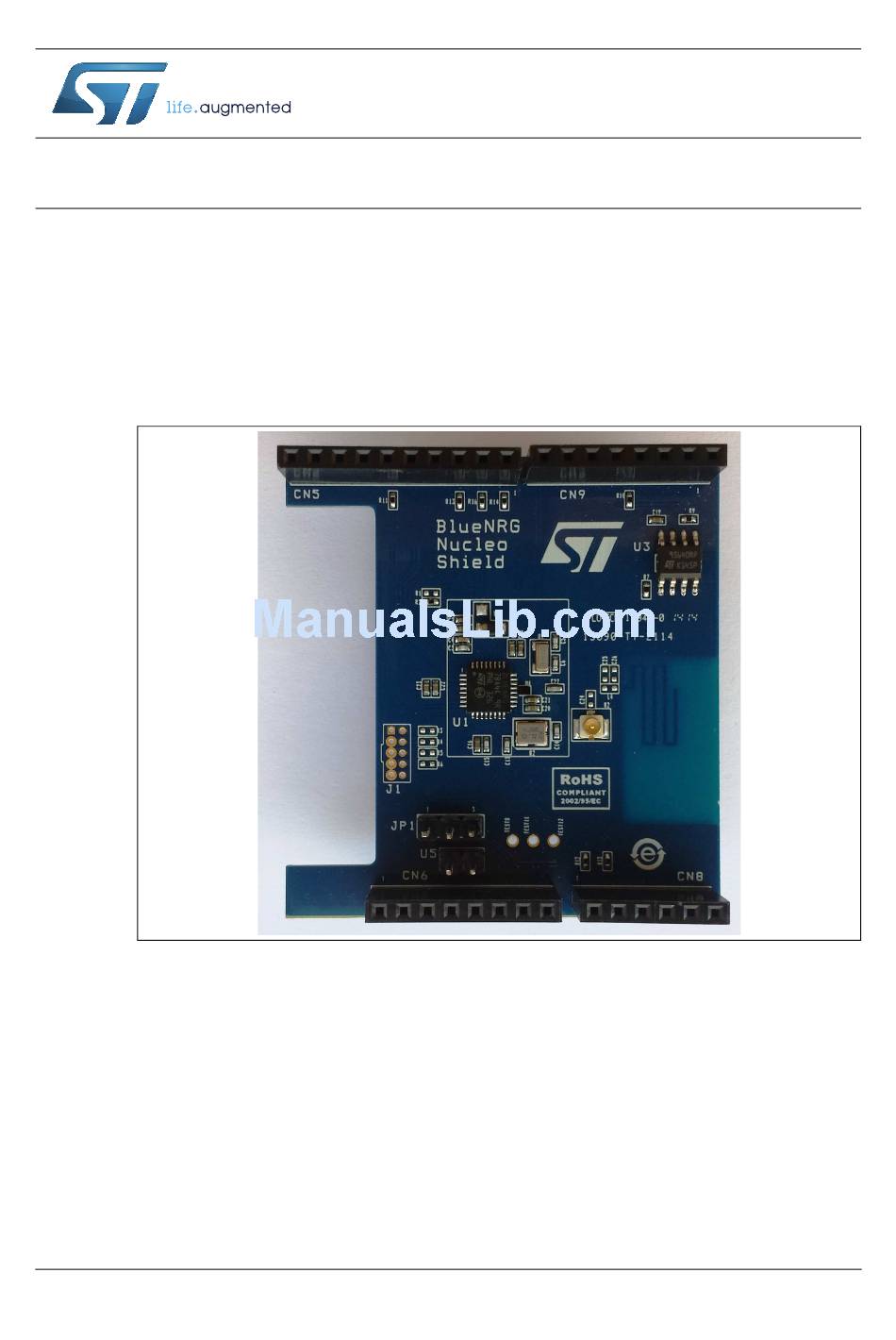

Figure 1. X-NUCLEO-IDB04A1 evaluation board
Other BlueNRG evaluation boards are available in the following kits:
• STEVAL-IDB002V1: BlueNRG development platform
• STEVAL-IDB003V1: BlueNRG USB dongle
February 2015
DocID026346 Rev 3
1/13
www.st.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST X-NUCLEO-IDB04A1
Summary of Contents for ST X-NUCLEO-IDB04A1
- Page 1 UM1765 User manual X-NUCLEO-IDB04A1 Bluetooth low energy expansion board based on BlueNRG for STM32 Nucleo Introduction This document provides detailed hardware requirements and board connections for the X- ® NUCLEO-IDB04A1 Bluetooth low energy (BLE) evaluation board based on BlueNRG for STM32 Nucleo.
-
Page 2: Table Of Contents
Hardware description ........5 X-NUCLEO-IDB04A1 board ........5 2.1.1... -
Page 3: Getting Started
Hardware requirements The X-NUCLEO-IDB04A1 is an expansion board for use with STM32 Nucleo boards (please refer to UM1724 on www.st.com for further information). To function correctly, the STM32 Nucleo board must be connected to the X-NUCLEO-IDB04A1 board as shown in Figure 2 below. -
Page 4: System Requirements
Getting started UM1765 System requirements Using the Nucleo boards with the X-NUCLEO-IDB04A1 expansion board requires the following software and hardware: • a Windows PC (XP, Vista, 7, 8) to install the software package • a USB type A to Mini-B USB cable to connect the Nucleo to the PC Installation of the board firmware package (order code: X-CUBE-BLE1) and the BlueNRG graphical user interface utility on the user’s PC requires the following:... -
Page 5: Hardware Description
UM1765 Hardware description Hardware description This section describes the X-NUCLEO-IDB04A1 features and provides information which could be useful for understanding the board schematics. X-NUCLEO-IDB04A1 board The board allows the user to test the functionality of the BlueNRG processor. It hosts the innovative BALF-NRG-01D3 balun &... -
Page 6: Current Measurements
2.1.1 Current measurements To monitor the power consumption of entire BlueNRG X-NUCLEO-IDB04A1 board, jumper U5 can be used, inserting an ammeter probe between pins 1 and 2 of the connector. Since the power consumption of BlueNRG during most of its operating time is very low, an accurate instrument in the range of few microamps may be required. -
Page 7: List Of Acronyms
UM1765 List of acronyms List of acronyms Table 2. List of acronyms used in the document Term Meaning Bluetooth low energy Universal serial bus DocID026346 Rev 3 7/13... -
Page 8: Board Schematic And Bill Of Material
Board schematic and bill of material UM1765 Board schematic and bill of material Table 3. Bill of materials (part 1) Item Quantity Reference Part Note C1, C17, C20, C22 1u_0402_X5R VBAT & SMPS OUT filter cap C2, C16, C18, C19, C21, C23 100n_0402_X7R VBAT filtering C3, C15 100p_0402_C0G... - Page 9 TEST8, TEST11,TEST12 Test point Test point 1. First release of the board mount 16MHz X'tal, however ST suggests to use 32MHz to exploit at best all the functionalities of BlueNRG. Table 4. Bill of materials (part 2) Manufacturer’s ordering code /...
- Page 10 0 Ohm SM/R_0402 Tyco Electronics QFN32 STMicroelectronics WALCON.100/VH/TM2 OE/W.325/10/MOD SO8N STMicroelectronics M95640-RMN6 1. First release of the board mount 16MHz X'tal, however ST suggests to use 32MHz to exploit at best all the functionalities of BlueNRG. 10/13 DocID026346 Rev 3...
- Page 11 UM1765 Board schematic and bill of material Figure 3. X-NUCLEO-IDB04A1 expansion board schematic diagram DocID026346 Rev 3 11/13...
-
Page 12: Revision History
Revision history UM1765 Revision history Table 5. Document revision history Date Revision Changes 16-May-2014 Initial release. Modified: 21-Jan-2015 Table 3 Table Modified: 19-Feb-2015 - order code from STSW-IDB04V1 to X-CUBE-BLE1 Section 1.2 Section 2.1. 12/13 DocID026346 Rev 3... - Page 13 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
