2.4
X-NUCLEO-IDB05A2 component placement
1.
Arduino UNO R3 connector
2.
Arduino UNO R3 connector
3.
Arduino UNO R3 connector
4.
Arduino UNO R3 connector
5.
ST morpho connector (not mounted)
6.
ST morpho connector (not mounted)
7.
SPI EEPROM
8.
BlueNRG-M0 module
UM2700 - Rev 1

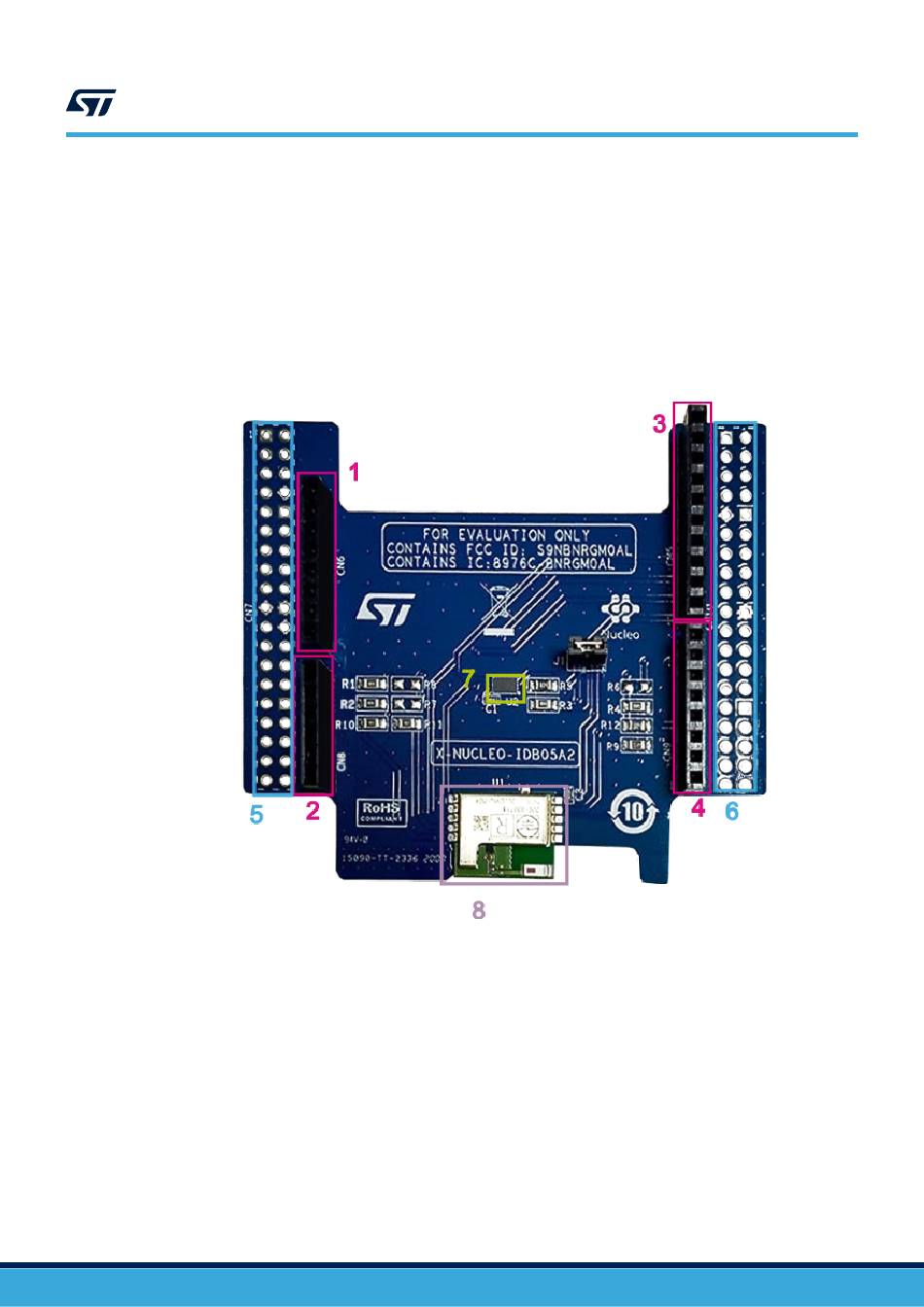

Figure 3.
X-NUCLEO-IDB05A2 component placement details
X-NUCLEO-IDB05A2 component placement
UM2700
page 6/18
