Getting started with X-NUCLEO-IDB05A2 BLE expansion board based on the
Introduction
The
X-NUCLEO-IDB05A2
Bluetooth low energy expansion board is based on the
The
BlueNRG-M0
is Bluetooth v4.2 compliant, FCC and IC certified (FCC ID: S9NBNRGM0AL; IC: 8976C-BNRGM0AL). It
supports simultaneous master/slave roles and can behave as a Bluetooth low energy sensor and hub device at the same time.
The
BlueNRG-M0
provides a complete RF platform in a tiny form factor, with integrated radio, antenna, high frequency and LPO
oscillators.
The
X-NUCLEO-IDB05A2
is compatible with the ST morpho (not mounted) and Arduino UNO R3 connector layout.
The
X-NUCLEO-IDB05A2
interfaces with the STM32 microcontroller via the SPI pin and allows changing the default SPI clock,
SPI chip select and SPI IRQ by replacing a resistor on the expansion board.
UM2700 - Rev 1 - April 2020
For further information contact your local STMicroelectronics sales office.
BlueNRG-M0 module for STM32 Nucleo

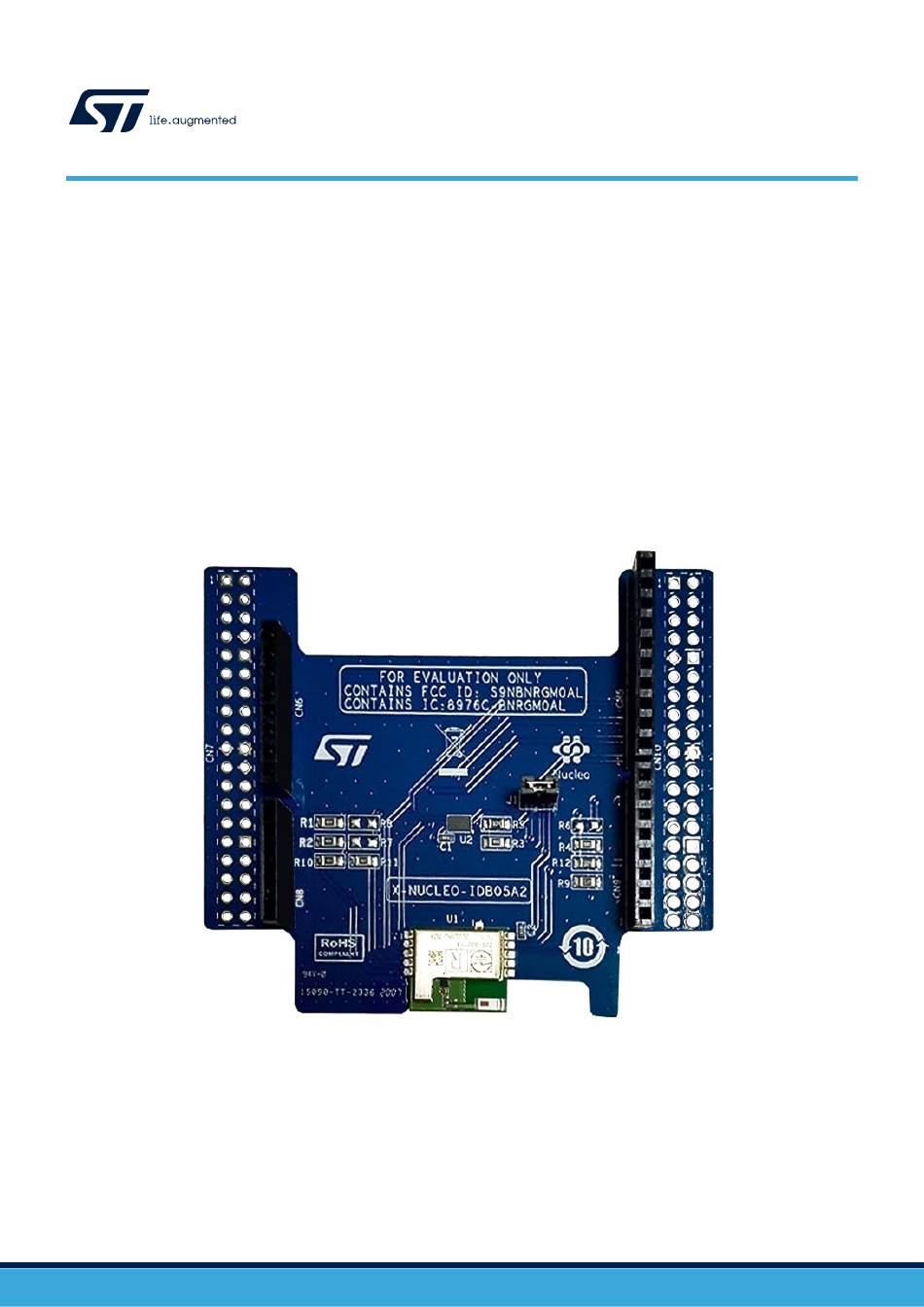

Figure 1.
X-NUCLEO-IDB05A2 expansion board
BlueNRG-M0
BLE network processor module.
UM2700
User manual
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-NUCLEO-IDB05A2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ST X-NUCLEO-IDB05A2

Summary of Contents for ST X-NUCLEO-IDB05A2

  • Page 1 RF platform in a tiny form factor, with integrated radio, antenna, high frequency and LPO oscillators. X-NUCLEO-IDB05A2 is compatible with the ST morpho (not mounted) and Arduino UNO R3 connector layout. X-NUCLEO-IDB05A2 interfaces with the STM32 microcontroller via the SPI pin and allows changing the default SPI clock, SPI chip select and SPI IRQ by replacing a resistor on the expansion board.

  • Page 2: Getting Started

    Nucleo, although complete testing has only been performed using the NUCLEO-L053R8 NUCLEO-F401RE development boards. To function correctly, the X-NUCLEO-IDB05A2 must be connected to the STM32 Nucleo board as shown below. Figure 2. X-NUCLEO-IDB05A2 and STM32 Nucleo stack UM2700 - Rev 1 page 2/18...

  • Page 3: System Requirements

    UM2700 System requirements System requirements To use the STM32 Nucleo development boards with the X-NUCLEO-IDB05A2 expansion board, you need: • a Windows PC/laptop (Windows 10 or above) to install the firmware package (X-CUBE-BLE1) • 128 MB of RAM • 40 MB of hard disk free space •...

  • Page 4: Hardware Description And Configuration

    X-NUCLEO-IDB05A2 expansion board can be connected to the STM32 Nucleo development board through connectors CN5, CN6, CN8 and CN9. Table 1. X-NUCLEO-IDB05A2 and NUCLEO-L053R8 connection details (left connector) Signal name IOREF RESET Connector name CN6 Power...

  • Page 5: Current Measurements

    To use the optional connection mount R6, unmount R4 Current measurements To monitor the power consumption of the X-NUCLEO-IDB05A2 board, insert an ammeter probe between pins 1 and 2 of the jumper on the J1 connector. Since the power consumption of...

  • Page 6: X-Nucleo-Idb05A2 Component Placement

    UM2700 X-NUCLEO-IDB05A2 component placement X-NUCLEO-IDB05A2 component placement Figure 3. X-NUCLEO-IDB05A2 component placement details Arduino UNO R3 connector Arduino UNO R3 connector Arduino UNO R3 connector Arduino UNO R3 connector ST morpho connector (not mounted) ST morpho connector (not mounted) SPI EEPROM...

  • Page 7: Component Description

    UM2700 Component description Component description BlueNRG-M0 module BlueNRG-M0 is an easy-to-use, Bluetooth v4.2 compliant, BLE master/slave network processor module. It supports multiple simultaneous roles and can behave as a Bluetooth low energy sensor and hub device at the same time. Table 4.

  • Page 8: Formal Notices Required By The U.s. Federal Communications Commission ("Fcc")

    This device uses, generates and radiates radio frequency energy. The radio frequency energy produced by this device is well below the maximum exposure allowed by the Federal Communications Commission (FCC). X-NUCLEO-IDB05A2 expansion board embeds the BlueNRG-M0 certifed module (FCC ID: S9NBNRGM0AL).

  • Page 9: Formal Notices Required By The Industry Canada ("Ic")

    Exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. X-NUCLEO-IDB05A2 expansion board embeds the BlueNRG-M0 certifed module (IC: 8976C-BNRGM0AL).

  • Page 10: Schematic Diagrams

    UM2700 Schematic diagrams Schematic diagrams Figure 4. X-NUCLEO-IDB05A2 circuit schematic - ST morpho and Arduino UNO R3 connectors Left morpho connector Right morpho connector CN10 PC10 PC11 PC12 BOOT0 AVDD NC/PF6 NC/PF7 IOREF PA12 PA13 RESET PA11 PA14 +3V3 PB12...

  • Page 11: Figure 5. X-Nucleo-Idb05A2 Circuit Schematic - Stm32 Nucleo Connections

    UM2700 Schematic diagrams Figure 5. X-NUCLEO-IDB05A2 circuit schematic - STM32 Nucleo connections SMD 0805 SMD 0805 Not mounted SMD 0805 SMD 0805 +3V3 Not mounted SMD 0805 SMD 0805 HEADER 1x2 Not mounted SMD 0805 MISO MOSI Figure 6. X-NUCLEO-IDB05A2 circuit schematic - BlueNRG-M0A module...

  • Page 12: Figure 7. X-Nucleo-Idb05A2 Circuit Schematic - Eeprom

    UM2700 Schematic diagrams Figure 7. X-NUCLEO-IDB05A2 circuit schematic - EEPROM 100nF 100k SMD 0805 SMD 0402 MOSI /HOLD MISO 100k M95640-RMC6TG SMD 0805 UM2700 - Rev 1 page 12/18...

  • Page 13: Bill Of Materials

    UM2700 Bill of materials Bill of materials Table 6. X-NUCLEO-IDB05A2 bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code 100 nF, SMD0402, 16 Ceramic X7R Murata GRM155R71C104KA88D V, ±10 % 1 uF, SMD0402, 16 V, ±10 % CN5 10 pins, Pass-...

  • Page 14: Revision History

    UM2700 Revision history Table 7. Document revision history Date Revision Changes 07-Apr-2020 Initial release. UM2700 - Rev 1 page 14/18...

  • Page 15: Table Of Contents

    X-NUCLEO-IDB05A2 component placement ........
  • Page 16 List of tables Table 1. X-NUCLEO-IDB05A2 and NUCLEO-L053R8 connection details (left connector) ......4 Table 2. X-NUCLEO-EEPRMA2 and NUCLEO-L053R8 connection details (right connector) ..... . 4 Table 3.
  • Page 17 X-NUCLEO-IDB05A2 circuit schematic - BlueNRG-M0A module ....... . . 11...
  • Page 18 ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
