Introduction
This document provides detailed hardware requirements and board connections for the X-
NUCLEO-IDB04A1 Bluetooth
STM32 Nucleo. This board is part of STMicroelectronics' offering of evaluation boards
designed around the BlueNRG Bluetooth low energy wireless network processor.
The excellent performance of BlueNRG and the best matching between BlueNRG and
BALF-NRG, X-NUCLEO-IDB04A1 passed the RF TEST for Japan Radio Law certification
with higher margin above the specification values as well as it is FCC certified (FCC ID:
S9NIDB04A1).
Other BlueNRG evaluation boards are available in the following kits:
STEVAL-IDB002V1: BlueNRG development platform
STEVAL-IDB003V1: BlueNRG USB dongle
April 2015
Bluetooth low energy expansion board
based on BlueNRG for STM32 Nucleo
®
low energy (BLE) evaluation board based on BlueNRG for

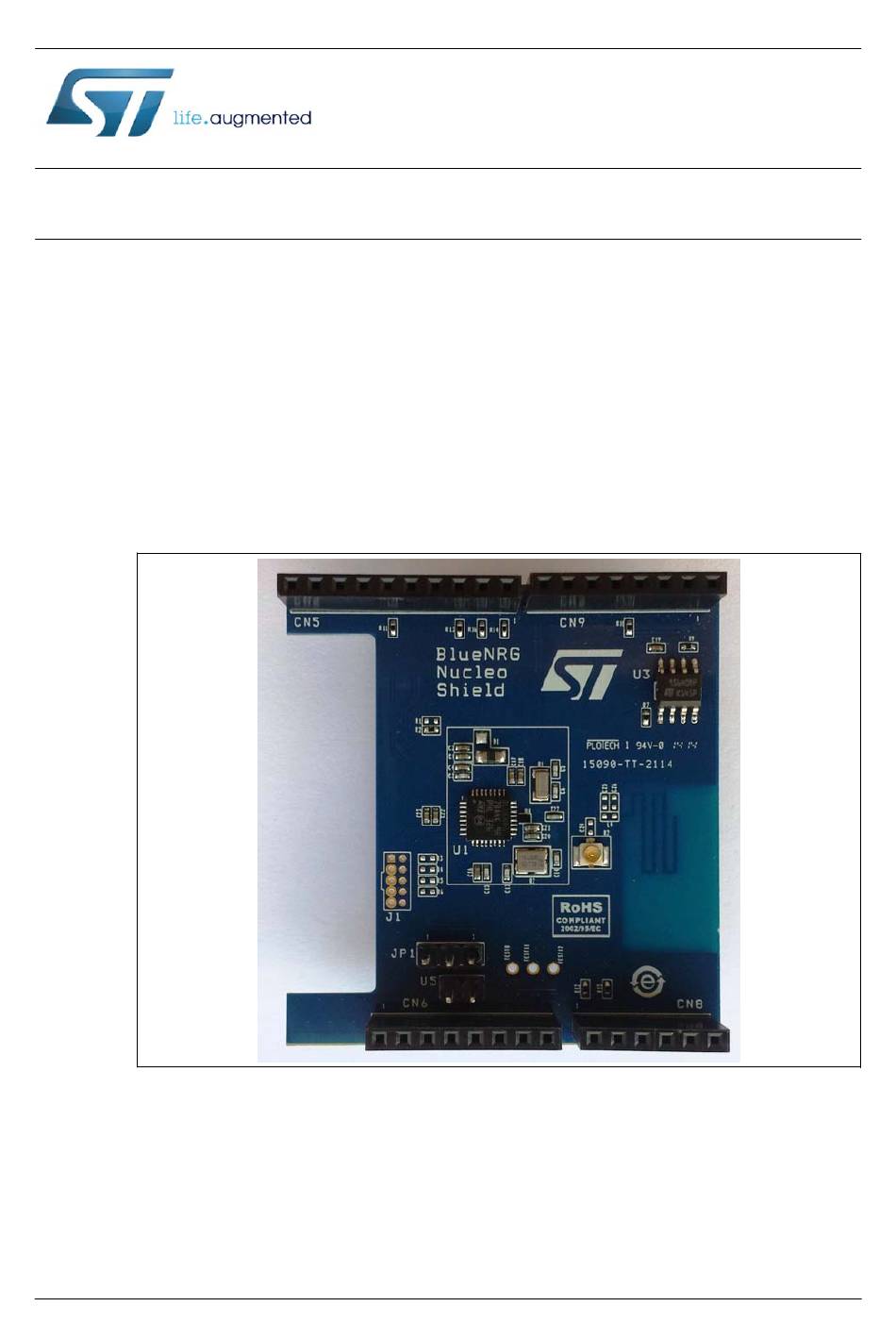

Figure 1. X-NUCLEO-IDB04A1 evaluation board
DocID026346 Rev 4
UM1765
User manual
www.st.com
1/15
Advertisement
Table of Contents
Related Manuals for ST X-NUCLEO-IDB04A1
Summary of Contents for ST X-NUCLEO-IDB04A1
- Page 1 The excellent performance of BlueNRG and the best matching between BlueNRG and BALF-NRG, X-NUCLEO-IDB04A1 passed the RF TEST for Japan Radio Law certification with higher margin above the specification values as well as it is FCC certified (FCC ID: S9NIDB04A1).
-
Page 2: Table Of Contents
X-NUCLEO-IDB04A1 board ........5 ... -
Page 3: Board Description And Getting Started
The X‐NUCLEO‐IDB04A1 is a Bluetooth low energy evaluation board to allow expansion of the STM32 Nucleo boards. It is compatible with the Arduino UNO R3 connector layout, and is designed around BlueNRG, a Bluetooth low energy, low power network coprocessor compliant with BTLE 4.0 and the BALF‐NRG‐01D3, an ultra‐miniature balun optimized for ST BlueNRG RFIC, which integrates matching network and harmonics filter. The X‐NUCLEO‐IDB04A1 interfaces with the STM32 MCU via SPI pin, and the user can change the default SPI clock, the SPI chip select and SPI ... -
Page 4: Hardware Requirements
Hardware requirements The X-NUCLEO-IDB04A1 is an expansion board for use with STM32 Nucleo boards (please refer to UM1724 on www.st.com for further information). To function correctly, the STM32 Nucleo board must be connected to the X-NUCLEO-IDB04A1 board as shown in Figure 2 below. -
Page 5: System Requirements
System requirements Using the Nucleo boards with the X-NUCLEO-IDB04A1 expansion board requires the following software and hardware: a Windows PC (XP, Vista, 7, 8) to install the software package a USB type A to Mini-B USB cable to connect the Nucleo to the PC ... -
Page 6: Hardware Description
UM1765 Hardware description Hardware description This section describes the X-NUCLEO-IDB04A1 features and provides information which could be useful for understanding the board schematics. X-NUCLEO-IDB04A1 board The board allows the user to test the functionality of the BlueNRG processor. It hosts the innovative BALF-NRG-01D3 balun &... -
Page 7: Current Measurements
Current measurements To monitor the power consumption of entire BlueNRG X-NUCLEO-IDB04A1 board, jumper U5 can be used, inserting an ammeter probe between pins 1 and 2 of the connector. Since the power consumption of BlueNRG during most of its operating time is very low, an accurate instrument in the range of few uA may be required. -
Page 8: Formal Notices Required By The U.s. Federal Communications Commission ("Fcc")
Communications Commission (FCC). The X-NUCLEO-IDB04A1 is FCC certified (FCC ID: S9NIDB04A1). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 9: Revision History
Revision history UM1765 Revision history Table 5. Document revision history Date Revision Changes 16-May-2014 Initial release. Modified: 21-Jan-2015 Table 3 Table Modified: 19-Feb-2015 - order code from STSW-IDB04V1 to X-CUBE-BLE1 Section 1.2 Section 2.1. - Page 10 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
