６．Connection
６－１．Overview of Connection Configuration
User
Controller
CWP
CWP
CCWP
CCWP
(+COM)
( IN )
( OUT )
(R.GND)
ALM
R.GND
+COM
ACLR
●Connect only one motor to one driver.
●Use twisted pair wire for the CW/CCW input signal line.
●Provide shielding for the signal line where considerable noise is generated.
●Use the wire material of the characteristic that is difficult to burn.
●Provide shielding for the motor line if it generates significant noise.
●For the driver's power supply, use a DC power supply with reinforced insulation
on its primary and secondary sides.

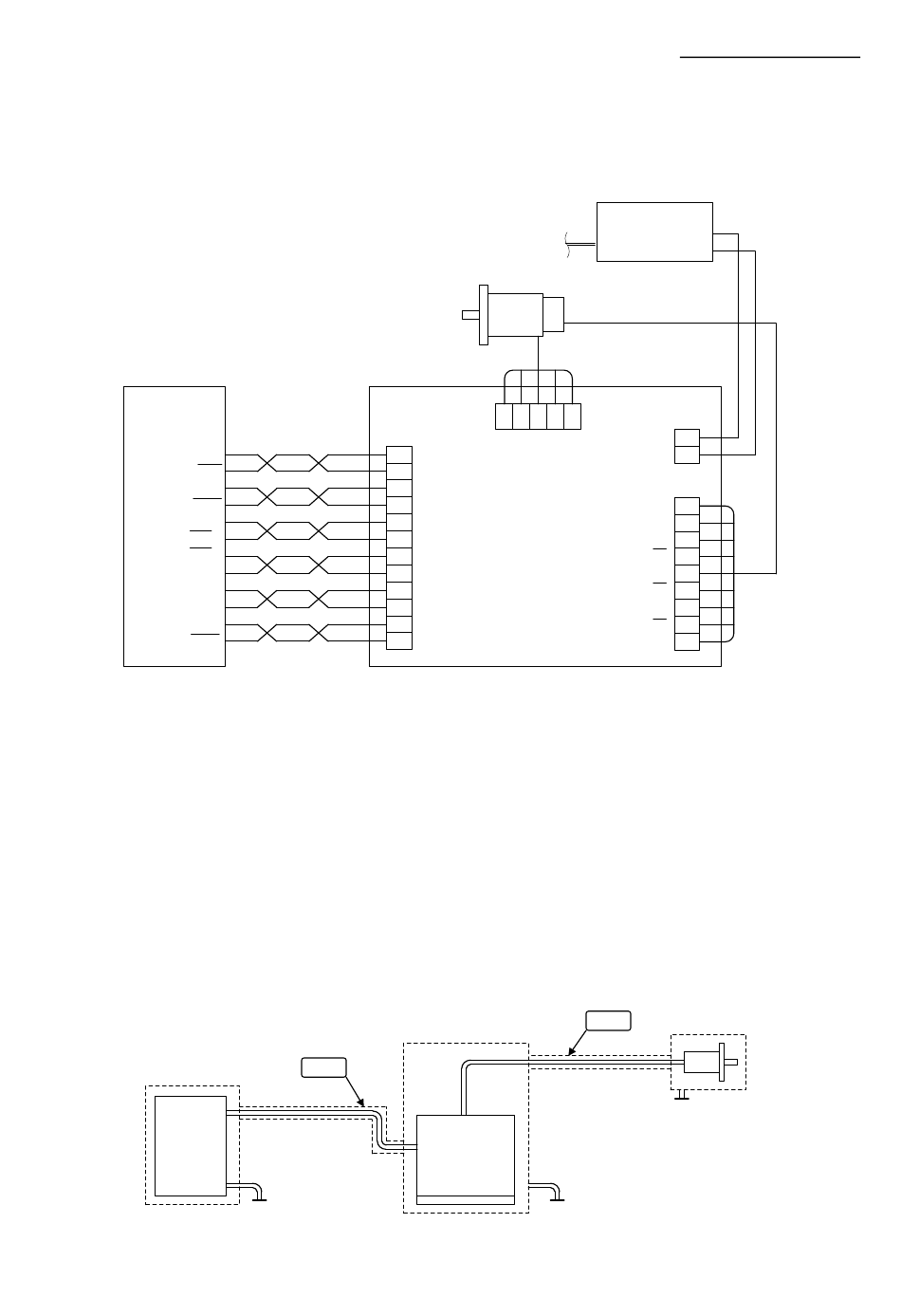

〔Example configuration〕
The metallic enclosure and shielded wires work to shield noise.
Metal Encloseure
User
Controller
J1
Twisted pair wire
1
2
3
4
5
6
7
8
9
10
11
12
Shield
Grounding
Encoder
Motor
1 2 3 4 5
J3
CW+
CW-
CCW+
CCW-
(IN+)
(IN-)
(OUT+)
(OUT-)
ALM
R.GND
ACLR+
ADB-5F41EL
ACLR-
Metal Encloseure
ADB-5F41EL
Grounding
-18-
Instructions Manual
DC Power Supply
DC+24V
0V(GND)
J2
DC+ 1
DC- 2
J4
SHIELD 9
GND 8
+5V
7
6
Z
Z
5
4
B
B
3
2
A
1
A
Shield
Metal Encloseure
Motor
Grounding
ADB-5F41EL
