３－４．POWER LED
POWER LED(GREEN) comes on upon inputting power.
３－５．ENC LED
ENC LED (GREEN) comes on upon outputting of +5V power for encoder.
３－６．ALM LED
When an alarm occurs, ALM LED (red) comes on or flashing.
・ In case of internal temperature of the driver reaches approx. 70℃ or more,
ALM LED comes on.
・ When it detects the step-out Flashes (0.5-second intervals).
・ It blinks at 5V output abnormality of the encoder.
(0.5-second intervals twice, repeat of off 1.5 seconds)

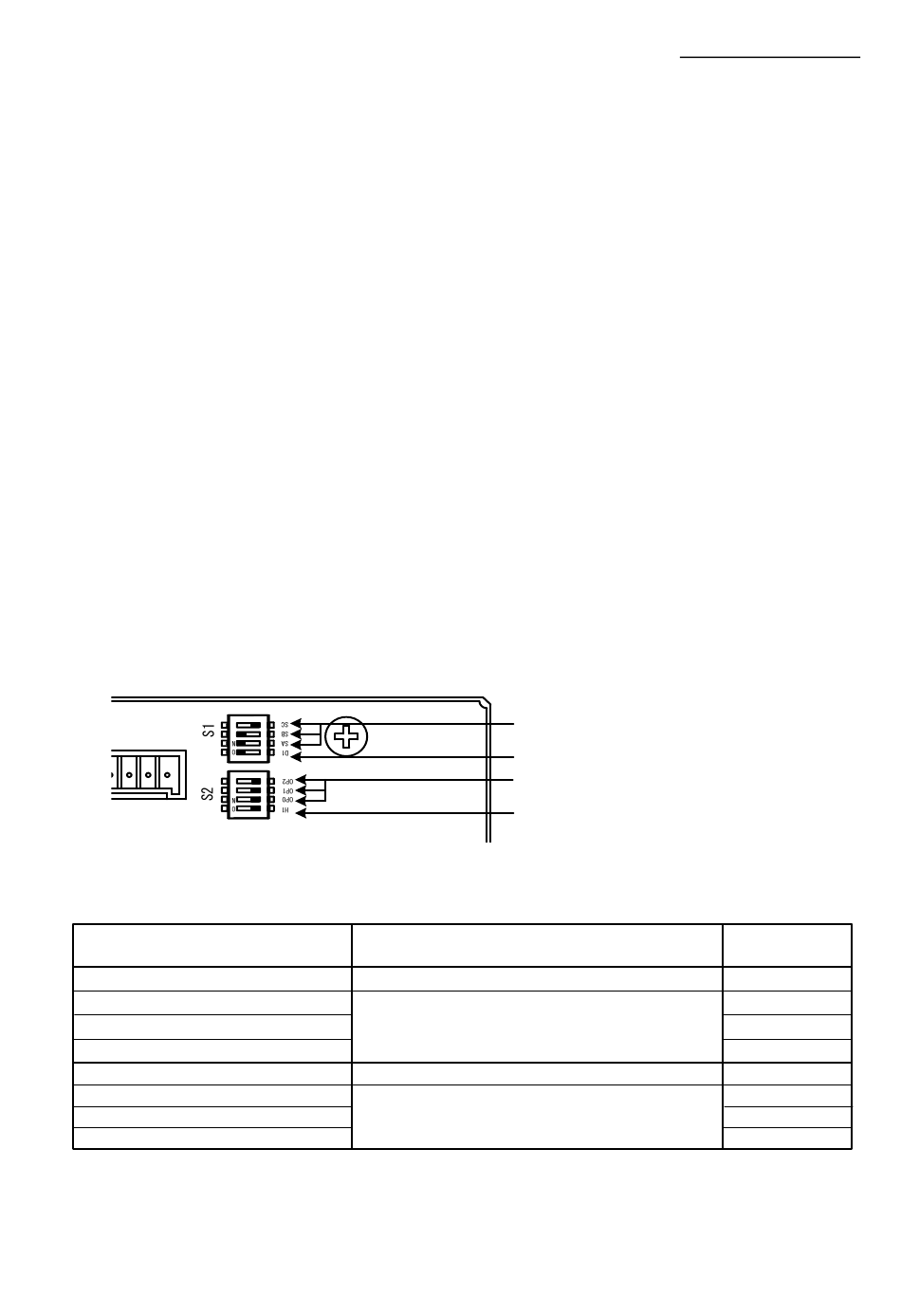

３－７．Operating Section
(ON ⇔ OFF)
Name of Operating Section
S1 1 DRIVE CURRENT SELECT switch
S1 2 STEP ANGLE SELECT switch
S1 3 STEP ANGLE SELECT switch
S1 4 STEP ANGLE SELECT switch
S2 1 HOLD CURRENT SELECT switch
S2 2 Extend functions switch
S2 3 Extend functions switch
S2 4 Extend functions switch
ADB-5F41EL
STEP ANGLE SELECT switch (STEP SEL)
DRIVE CURRENT SELECT switch (DRIVE I. SEL)
Extend functions switch (OP SEL)
HOLD CURRENT SELECT switch (HOLD I. SEL)
Function
Selects DRIVE CURRENT.
Selects a step angle.
Selects HOLD CURRENT.
Selects Extend functions
-12-
ADB-5F41EL
Instructions Manual
Factory Setting
D1：〔ON〕
SA：〔ON〕
SB：〔ON〕
SC：〔OFF〕
H1：〔OFF〕
OP0：〔OFF〕
OP1：〔OFF〕
OP2：〔OFF〕
