Melec ADB-5F41EL Instruction Manual page 11

ADB-5F41EL
J3
VIO
BLU
RED
GRY
BLK
MOTOR
YLW
WHT
ORN
GRN
BRN

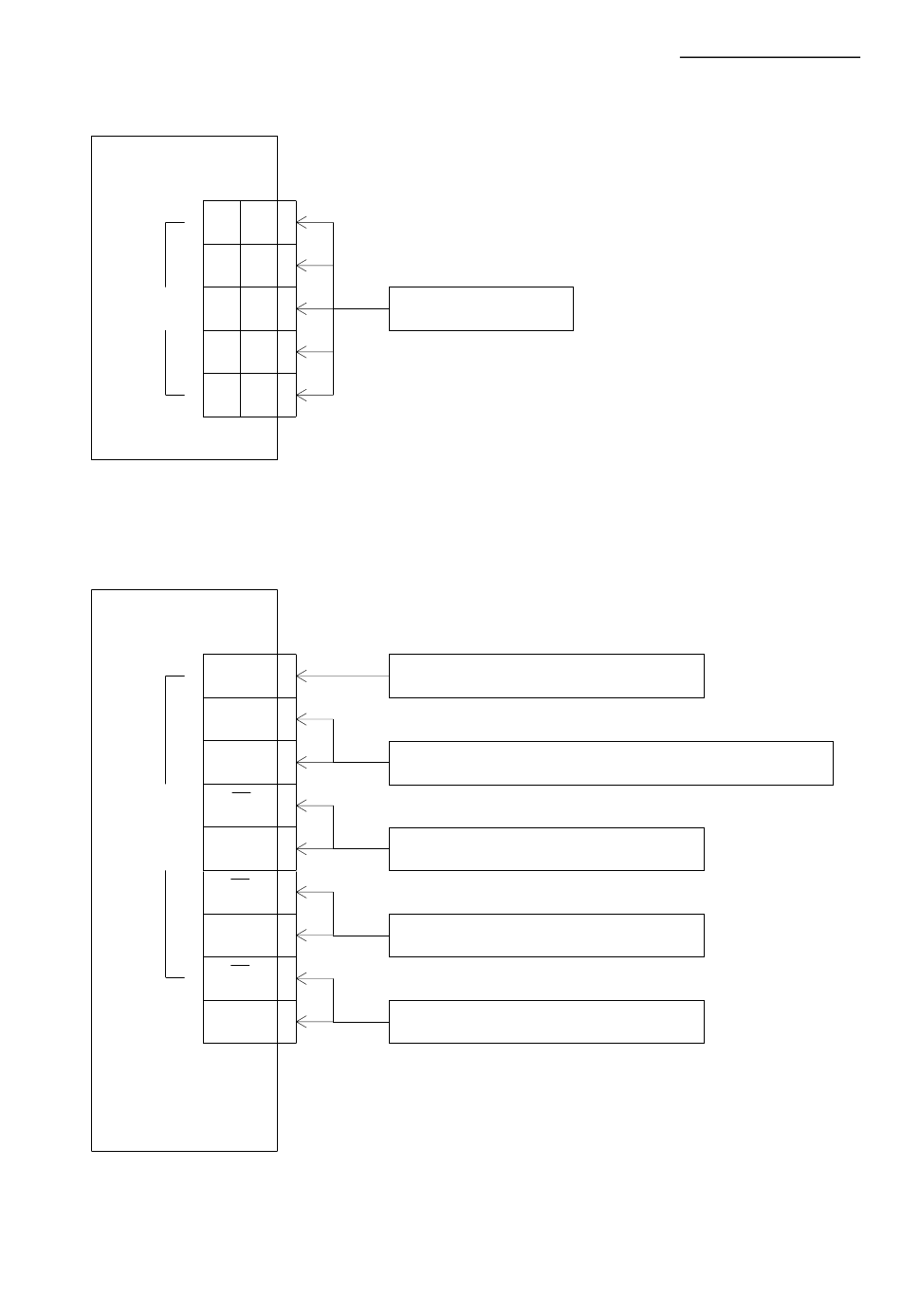

３－３．Encoder I/O Connecter (J4)
ADB-5F41EL
J4
SHIELD
GND
+5V
Z
ENCODER
Z
B
B
A
A
1
BLK
GRN 2
3 Motor output terminal
ORN
●Outputs current to drive the motor.
RED 4
5
BLU
9 Encoder shield terminal
●The shield of encoder is connected
8
7
Encoder 5v power supply terminal and GND terminal
●Encoder power supply(+5V､GND) is connected
6
5 Encoder Z phase signal input terminal
●Inputs the encoder Z phase pulse
4
3 Encoder B phase signal input terminal
●Inputs the encoder B phase pulse
2
1 Encoder A phase signal input terminal
●Inputs the encoder A phase pulse
