６－５．Inputting Power
(1) Input the DC power supply (DC+24V) in the cable that connected to No.1 and No. 2
terminals of J2.

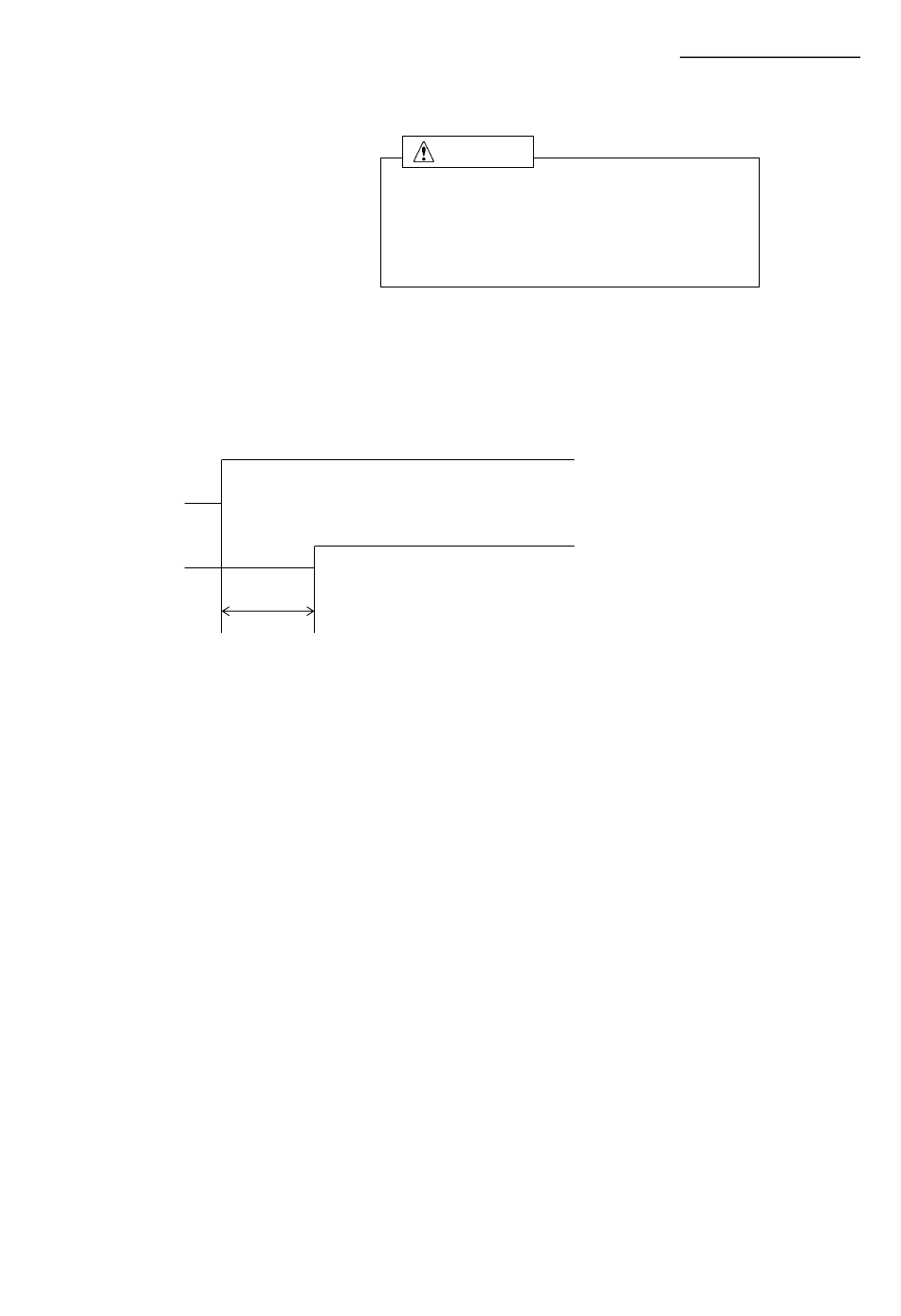

① Timing chart
ON
Supply
power
Motor
excitation
t1≦300ms (t1：Time required for the motor to be enabled.)
Breakage of the machine or injury is
apprehended due to unexpected behavior of
the motor.
emergency stop is enabled at any time.
ON
t1
CAUTION
Maintain the state where
