Option Modules

Network Modules

NetVanta Carrier Ethernet Quad SHDSL EFM Module, Annex A (P/N 17406368F1)
The NetVanta Carrier Ethernet Quad SHDSL EFM Module, Annex A (shown in
WAN-SHDSL EFM interface. See

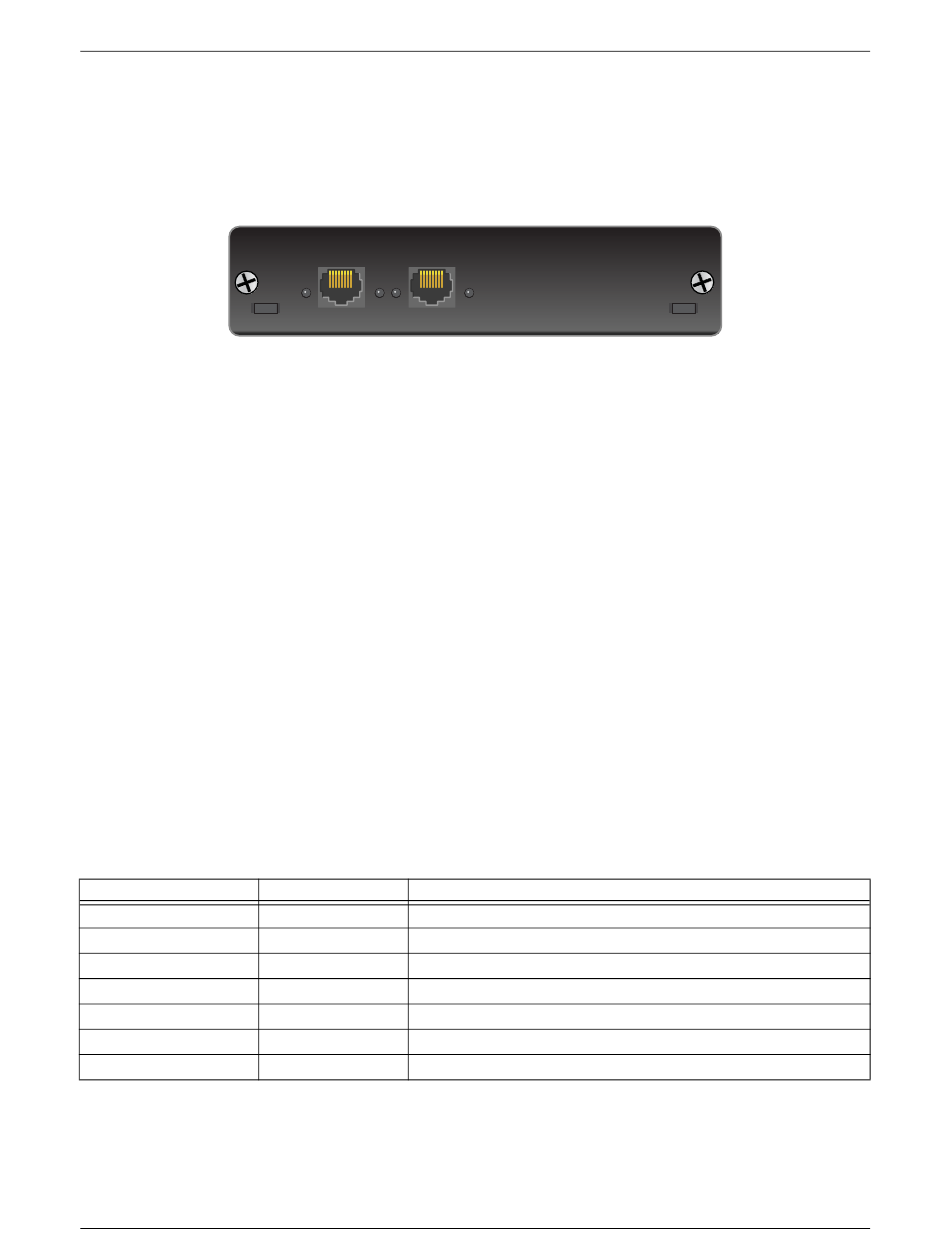

Figure 4. NetVanta Carrier Ethernet Quad SHDSL EFM Module, Annex A

Operating Mode
• Line termination (CO)
• Network termination (CPE)
SHDSL Interface
• Four 2-wire eSHDSL loops
• Supported Standards: ITU-T G.991.2
Annex A
• IEEE 802.3ah EFM bonding
• MEF compliant
Clock Source
• CPE Operating Mode: Network
• CO Operating Mode: Internal

Table 2. NetVanta Carrier Ethernet Quad SHDSL EFM Module, Annex A LED Behaviors

LED
SHDSL 1 through 4
26
Table A-6 on page 44
QUAD SHDSL EFM ANNEX A
1 2 3
Features and Specifications
Color
Off SHDSL loop is administratively shut down.
Green (flashing) SHDSL loop is training.
Green (solid) SHDSL loop is trained and EFM group is established.
Amber (flashing) SHDSL loop is trained but EFM group is not established.
Amber (solid) SHDSL loop is in test.
Red (flashing) SHDSL loop is in handshake process.
Red (solid) SHDSL loop connection failure.
Copyright © 2014 ADTRAN, Inc.
NetVanta 6360 Hardware Installation Guide
for the Quad SHDSL EFM connector pinouts.
4
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page
• UL/CUL 60950-1
• ACTA/TIA 968/FCC Part 68
• IC CS-03
• RoHS compliant
Environmental
• Operating Temperature: 0°C to 50°C
(-32°F to 122°F)
• Storage Temperature: -20°C to 70°C
(-4°F to 158°F)
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 6.75-inch W x 6.59-inch D
Indication
Figure 4) provides a
6.
617006364F1-34A
