Quick Start

Overview

f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.
f
ATTENTION!
Lisez tous les avertissements et mises en garde avant l'installation de cet équipement ou la réalisation de toute opération de maintenance.
This quick start describes how to install ADTRAN's 814-v6 Home Gateway Unit.
The 814-v6 Wi-Fi 6 GPON HGU is an indoor gateway that leverages GPON technology for delivering premium, multi-Gigabit services via an integrated
GPON WAN and Dual-band Wi-Fi 6, along with Voice services.
"Installing the 814-v6 Gateway"
"Understanding the Status LEDs"
"Safety and Regulatory"
on page 6

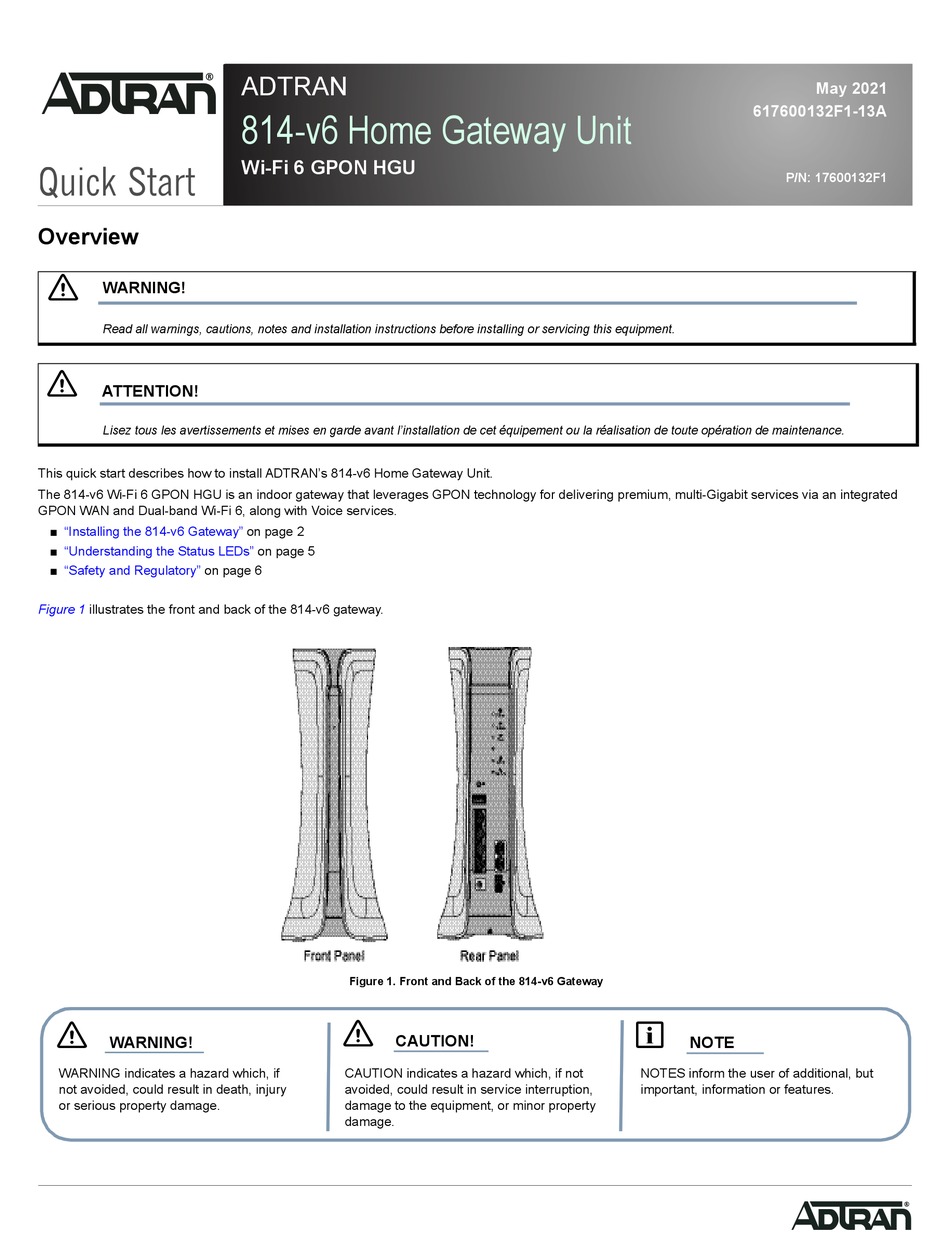

illustrates the front and back of the 814-v6 gateway.
Figure 1
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
ADTRAN
814-v6 Home Gateway Unit
Wi-Fi 6 GPON HGU
on page 2
on page 5
Figure 1. Front and Back of the 814-v6 Gateway
f
CAUTION!
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
617600132F1-13A
P/N: 17600132F1
g
NOTE
NOTES inform the user of additional, but
important, information or features.
May 2021
