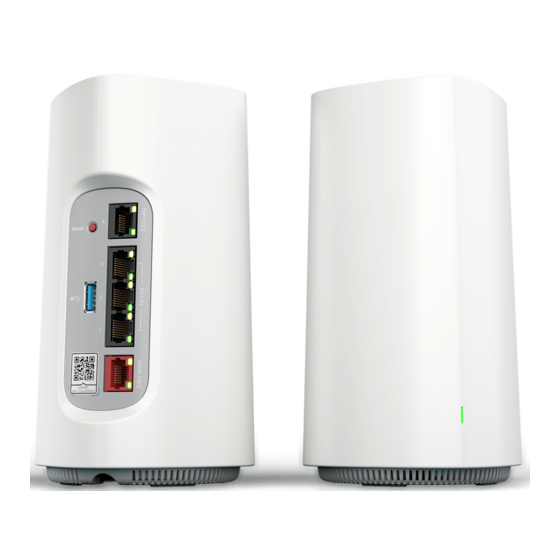

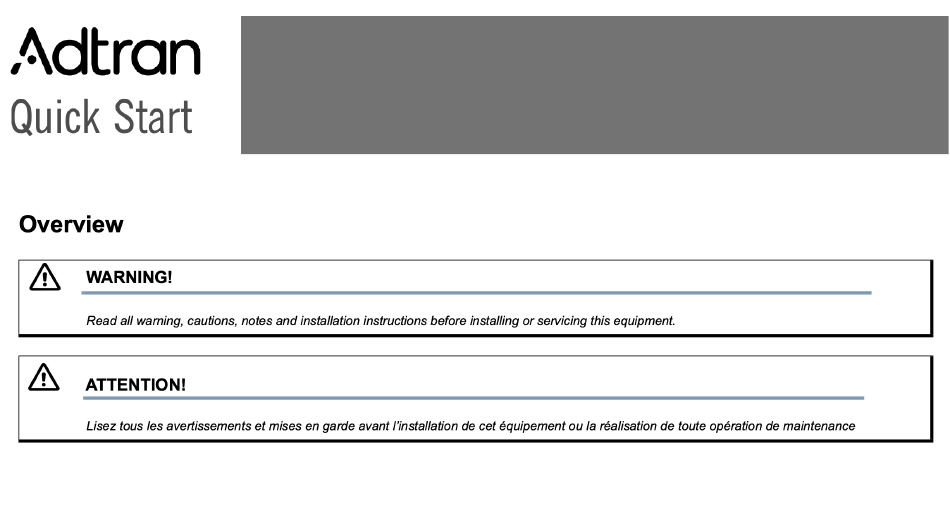

- Page 1 ADTRAN SDG-8612/8614 series Service Delivery Gateway Wi-Fi 6 2.5G Router P/N: 17600070F1...
-
Page 2: Product Specifications
The ADTRAN® SDG-8612/8614 series is a Wi-Fi 6 2.5 Gigabit Ethernet router, built to deliver top-end Wi-Fi 6 performance, true 2.5 gigabit routing throughput, and advanced service delivery capabilities. This quick start describes how to install ADTRAN’s Service Delivery Gateway. - Page 3 Installing the SDG-8612 Gateway The following are guidelines for basic installation of the gateway. Package Contents ■ ADTRAN’s WiFi 6 2.5Gigabit Router ■ 15VDC/3A USB type C power adapter ■ CAT.5E Ethernet cable Prior to Installation Before installing the equipment, inspect the gateway. If damage has occurred during shipping, file a claim with the carrier,...
-
Page 4: Connecting The Gateway
Connecting the Gateway Figure 2 illustrates the installation (connection) options for the gateway. The following subscriber connections are available on the rear of the device: ■ 1x 2.5Gigabit Ethernet port (RJ-45 Connector) – LAN port ■ 4x Gigabit Ethernet (RJ-45 Connectors) – LAN 1-4 ports ■... -
Page 5: Connecting The Power Supply
Connecting the Power Supply 1. Connect the end of the power adapter to the Power port on the bottom of the gateway. 2. Plug other end of the power adapter into the wall outlet. 3. Confirm that the power is connected properly. The Power LED should be lit on the gateway. Resetting the Gateway A reset button is available if the device needs to be rebooted. - Page 6 Set up Connect to http://192.168.1.1 from web browser, go through the instructions to complete the router mode setup. 1. Click on “Set up a new IntellifiⓇ device”. 2. Simply input “12345678” as the password, re-enter the “12345678” again, click on “Set password”. 3.
- Page 7 4. Press Next>, then press Router. 5. Type “samplewifi” as SSID, and type “12345678” as password, then press “Continue”.
- Page 8 6. Press “Yes, set up Guest WiFi, Then press “Finish” to complete setup.
- Page 9 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 10: Industry Canada Statement
Industry Canada statement: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference (2) This device must accept any interference, including interference that may cause undesired operation of the device L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. - Page 11 Avertissement: (i) les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis pour les dispositifs utilisant les bandes de 5 250 à...
