Electronic door signal
Electronic door signal
Ref.-no.: .. 567 S ..,
.. 967 S ..,
.. 2967 S ..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or load.
These instructions are an integral part of the product, and must remain with the end customer.

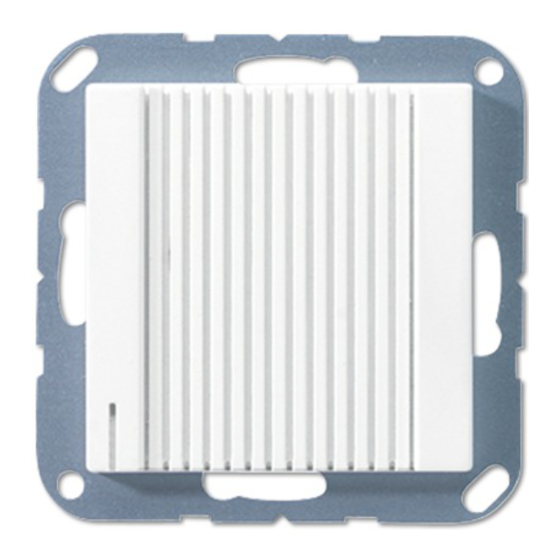

2 Structure of the device
(1) Supporting frame
(2) Design frame (not included in delivery)
(3) Electronic door signal
3 Function
Intended purpose
- electronic door signal for door communication technology
- installation in appliance box according to DIN 49073
Product characteristics
- 2 sounds with different volumes
- with supporting frame
- screw fixing
0024098402
1
2

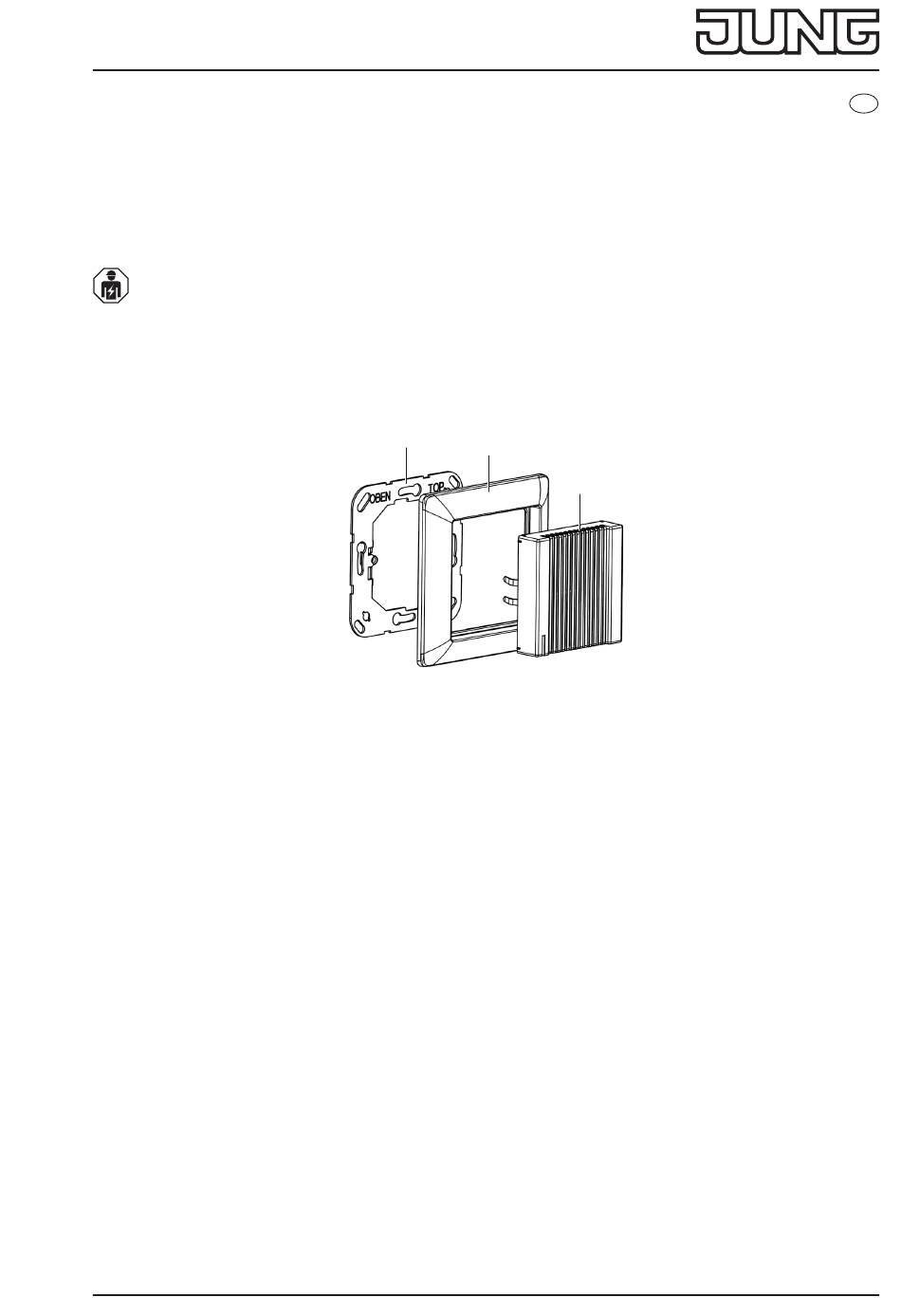

Fig. 1: Structure of the device
1 / 2
3
GB
07.07.2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung 567 S Series
Summary of Contents for Jung 567 S Series
- Page 1 Electronic door signal Electronic door signal Ref.-no.: .. 567 S .., .. 967 S .., .. 2967 S .. Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock.
- Page 2 Electronic door signal 4 Information for electrically skilled persons Installation and electrical connection DANGER Electric shock from touching live parts in the installation environment. An electric shock can be fatal. Before working on the device, disconnect the power and cover live parts in the area. The appliance box for the electronic door signal muste be installed flush mounted and exactly orientated in the wall.
