AXIOMTEK IPC932-230-FL Quick Installation Manual page 2

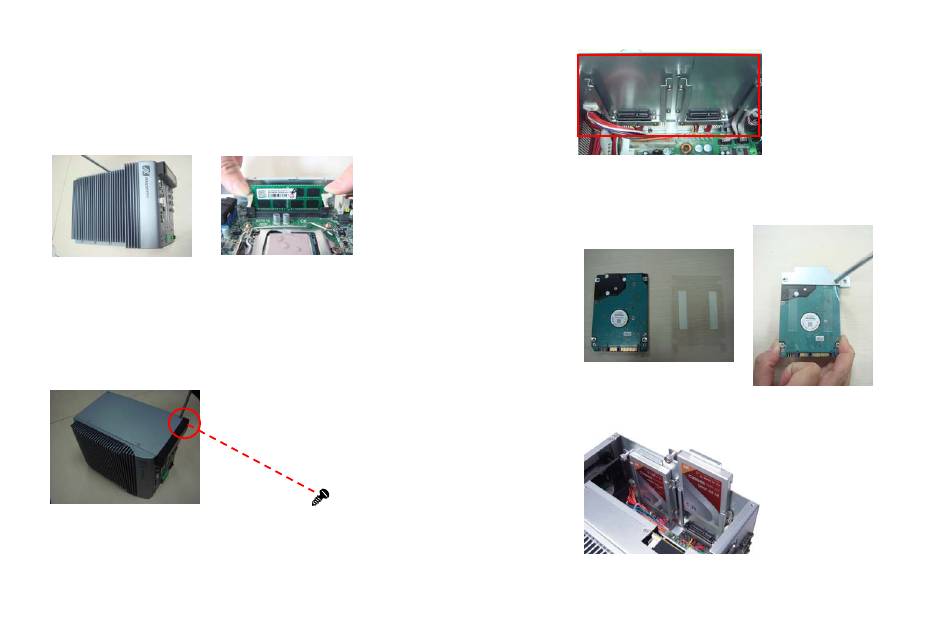

Installing the Memory Module
Step 1 Turn off the system, and disconnect the power connector.
Step 2 Loosen screws to remove the Heatsink cover from the chassis
Step 3 Install the memory module into the socket and push it firmly
down until it is fully seated. The socket latches are clipped
on to the edges of the SO-DIMM.
Installing the Hard Disk Drive
Step 1 Turn off the system, and disconnect the power connector.
Step 2 Loosen screws to remove the top cover from the chassis.
2 9416G932000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 May 2014
Printed in Taiwan
Step 3 Open the top cover and locate the Hard Disk Drives as red
marked.
Step 4 There are 2 thermal pad and 2 HDD brackets in the
accessory box, please sticker the HDD Mylar before
assembly the HDD with the bracket.
Insert the HDD module into the HDD socket.
Step 5
9416G932000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 May 2014
Printed in Taiwan
3
