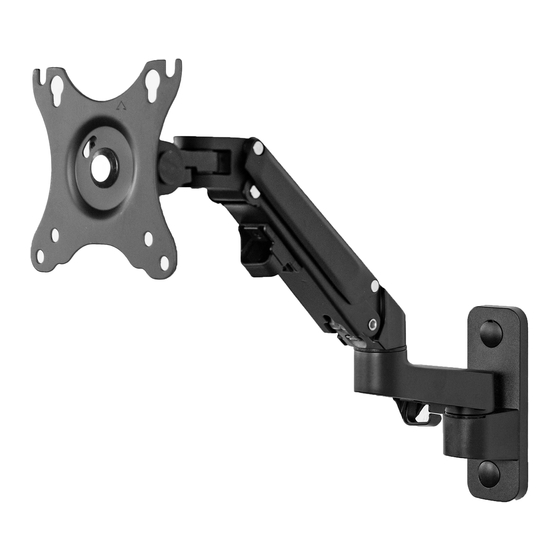

Premium Aluminum Single Monitor Wall Mount
Instruction Manual
SKU: MOUNT-G100B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-g100b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo MOUNT-G100B
Summary of Contents for Vivo MOUNT-G100B
- Page 1 Premium Aluminum Single Monitor Wall Mount Instruction Manual SKU: MOUNT-G100B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-g100b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall OPTION B: Concrete/Brick Wall Using the wall plate on the arm (A), mark Using the wall plate on the arm (A), mark drilling drilling locations. Use of a stud finder is highly locations.
- Page 4 STEP 2 Attach screw covers (B) to wall plate. STEP 3 Insert bolts (M-A or M-B) with washers (M-C) into top two holes of TV/monitor, leaving 3mm of thread exposed. Hang TV/monitor over slots in VESA mounting plate, insert bolts with washers into lower two holes, and tighten.
- Page 5 STEP 4 Adjust gas spring tension using the Allen wrench (C). Turn counter-clockwise to increase lift, and clockwise to decrease. Adjust the tilt joint support using the Allen key. NOTE: use a large flat-blade screwdriver to tighten the socket set screw if the joint makes a popping noise.
- Page 6 STEP 5 Use built in cable clips to manage cables.
- Page 7 Adjust as Desired ±90° + 4 5 ° ±180° - 4 5 ° ±90°...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
