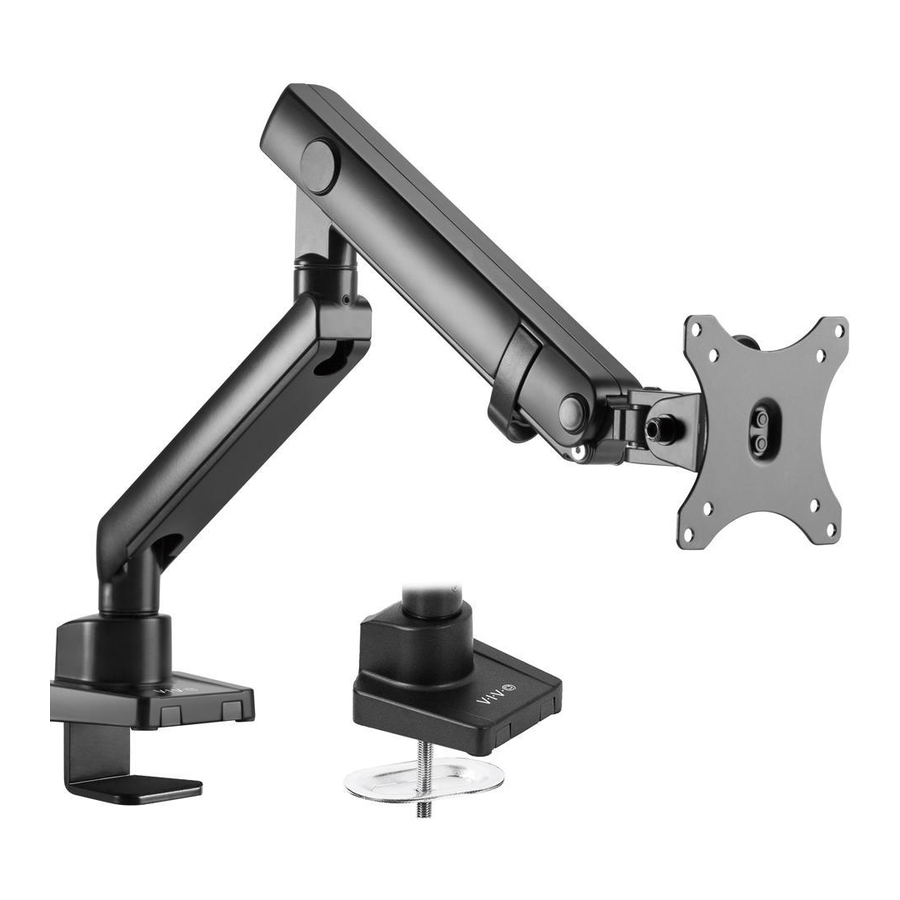

Pneumatic Arm Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101BB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101bb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V101BB
Summary of Contents for Vivo STAND-V101BB
- Page 1 Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V101BB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101bb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (7.98kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Insert 6mm Allen wrench (I) into socket on top of base (A) and turn screw counter-clockwise to lower clamp. - Page 4 STEP 2 Place lower arm (B) onto base, and secure by turning the screw in back with 3mm Allen wrench (H). STEP 3 Place spring arm (C) onto lower arm, and secure by turning the screw in the front with 3mm Allen wrench (H).
- Page 5 STEP 4 Install the VESA plate (D) to monitor using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), making sure the arrow in back is pointing up. M- A M- B M- C STEP 5 Pull back the release lever on the support bracket, then place the monitor with VESA plate into the support.
- Page 6 STEP 6 If needed, adjust spring arm to support the monitor using the 6mm Allen wrench. Turn the screw in back clockwise to increase support, and counter-clockwise to decrease. Adjust the tilt joint to tighten or loosen tilt support. STEP 7 Slide cable cover on lower arm forward to remove.
- Page 7 STEP 8 Install cable clip (E) to base. Organize cables, then reinstall cable cover to lower arm. Adjust as Desired ± 9 0° +90° ± 90° -90° ± 1 8 0° ± 1 8 0°...
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
