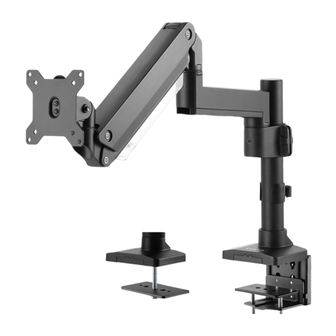

Pneumatic Arm Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101GT
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101gt
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V101GT and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo STAND-V101GT

Summary of Contents for Vivo STAND-V101GT

  • Page 1 Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V101GT Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101gt GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 - Option A - Clamp Connect Clamp Brace (L) to Base (A) using M6x12mm Screws (S-A) and 4mm Allen Wrench (T-B). Remove protective film from Soft Pad (J) and apply to the underside of Clamp Brace (L). Loosen the screws on the back of Lower Clamp (M) using 4mm Allen Wrench (T-B), leaving 6mm of thread exposed.
  • Page 4 STEP 1 - Option B - Grommet Attach Grommet Plate (I) to Base (A) using M6x12mm Screws (S-A) and 4mm Allen Wrench (T-B). Remove protective film from Soft Pad (J) and apply to the underside of Grommet Plate (I). Position Base (A) over grommet hole in desk. If there is no existing grommet hole, drill a 0.375” (10mm) hole through the desktop in the desired mounting position.
  • Page 5 STEP 3 Slide Arm Support (D) onto Pole (B) and tighten using 6mm Allen Wrench (T-C). Place Lower Arm (E) on top of Arm Support (D). Tighten set screw using 3mm Allen Wrench (T-A) to secure in place. STEP 4 Place Gas Spring Arm (F) on top of Lower Arm (E), and tighten set screw on Lower Arm (E) using 3mm Allen Wrench (T-A) to secure.
  • Page 6 STEP 5 Connect Front VESA Plate (G2) to back of Monitor using appropriate Screws (M-A, M-B), M5 Washers (M-C), and a Phillips Screwdriver. STEP 6 To mount the monitor, begin by lining up the tabs on Front VESA Plate (G2) with the slots on Back VESA Plate (G3).
  • Page 7 STEP 8 Remove cable cover on Gas Spring Arm (F) using a Phillips screwdriver. Slide cable cover on Lower Arm (E) forward to remove. Organize cables, then reinstall cable covers to arms. Use Cable Clip (C) to route cables. Adjust as Desired To adjust tilt tension, use 6mm Allen Wrench (T-C).
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
