Mechanical Arm Single
Ultrawide Monitor
Desk Mount
STAND-V101E Series
Assembly Manual
Individual Product SKUs
STAND-V101E
STAND-V101EW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V101E Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V101E Series

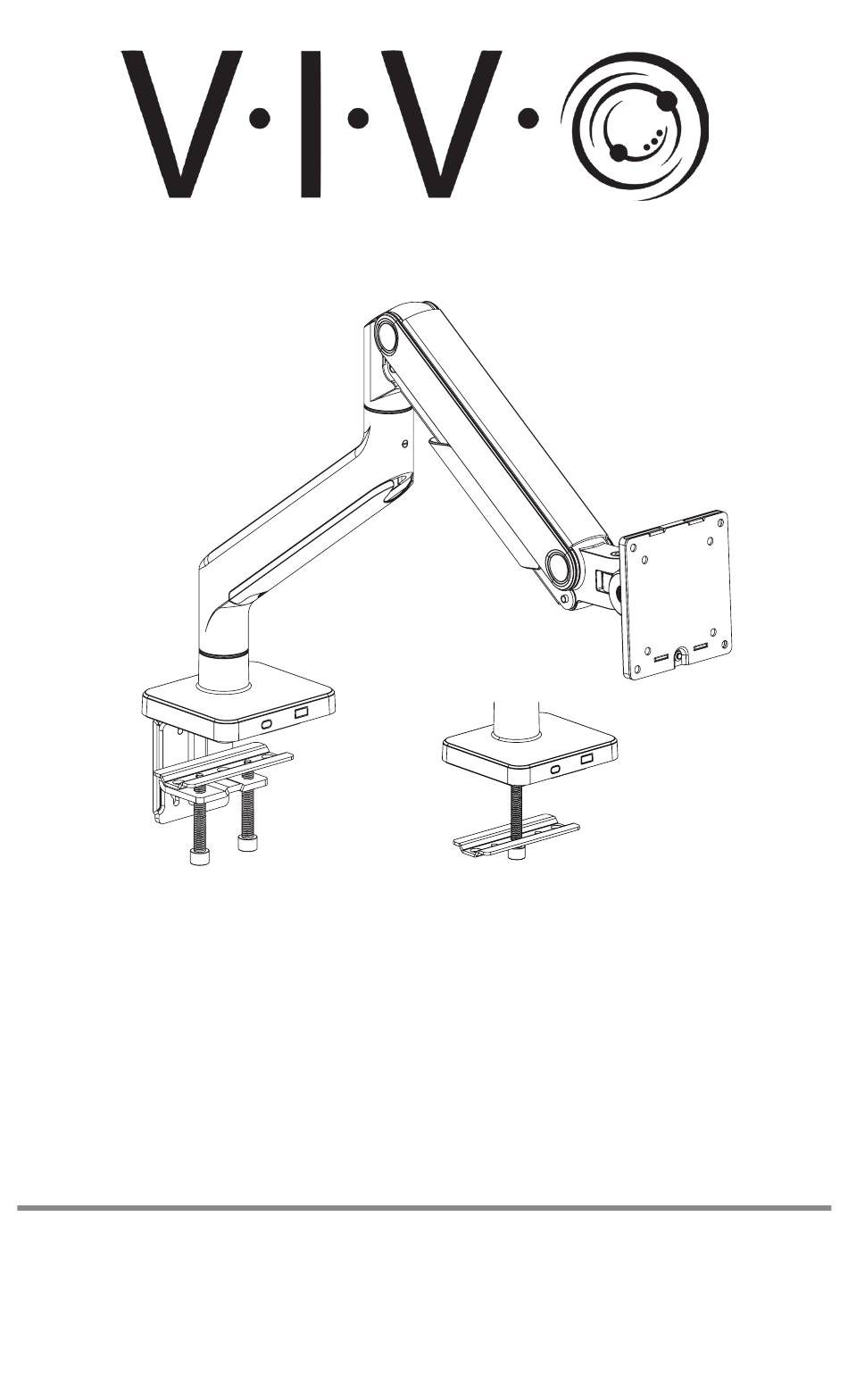

  • Page 1 Mechanical Arm Single Ultrawide Monitor Desk Mount STAND-V101E Series Assembly Manual Individual Product SKUs STAND-V101E STAND-V101EW...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x1) Base Lower Arm Spring Arm VESA Adapter E (x1) F (x1) G (x1) Clamp Plate Clamp Brace Clamp Included Hardware & Tools S-C (x1) S-D (x2) M-A (x4) S-B (x4) S-A (x1) M8x35mm M10x63mm...
  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Option 1: Clamp Assembly Attach Clamp Brace (F) to Base (A) using M6x12mm Screws (S-B) and tighten with 4mm Allen Wrench (T-A). Thread M10x63mm Screws (S-D) into Clamp (G) and place Clamp Plate (E) on top.
  • Page 5 Clamp Assembly - Cont’d Loosen bolts on back of Clamp Brace (G) using 4mm Allen Wrench (T-A), leaving 6mm of thread exposed. Desktop Thicknesses: Hang assembled clamp into the slots on Clamp Brace (F), using instructions 3/8” to 2” (10 - 50mm) for your desk thickness below.
  • Page 6 Clamp Assembly - Cont’d Secure clamp assembly to the desktop using 6mm Allen Wrench (T-B). Proceed to STEP 2 on Next Page Option 2: Grommet Insert M10x63mm Screws (S-D) with Clamp Plate (E) up through the underside of the desk and tighten to Base (A) using the 6mm Allen Wrench (T-B).
  • Page 7 STEP 2 Place Lower Arm (B) on top of Base (A), and secure by tightening Set Screw with 4mm Allen Wrench (T-A). Screw ** Optional ** Limited 90° Rotation To limit Lower Arm (B) rotation to 90°, remove the Arm and turn upside down to reveal a Set Screw inside the opening.
  • Page 8 STEP 3 Place Spring Arm (C) on top of Lower Arm (B), and secure by tightening Set Screw with 4mm Allen Wrench (T-A). Screw STEP 4 Attach VESA Adapter (D) using M8x35mm Screw (S-C) and M8 Nut (S-A) on Spring Arm (C) using 6mm Allen Wrench (T-B).
  • Page 9 STEP 5 Install VESA Plate (D2) to monitor using M4x12mm Screws (M-A) or M5x12mm Screws (M-B) with M5 Washers (M-C). Ensure the arrow on VESA Plate (D2) is facing up.
  • Page 10: Adjustment Screw

    Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint: Lock Angle Use 6mm Allen Wrench (T-B) to Tighten as much as possible using loosen the tilt joint Adjustment the 6mm Allen Wrench (T-B) to Screw, located on the side of lock the angle.
  • Page 11 With the assistance of a second person, line up the VESA Plate (D2) on your monitor with the VESA Adapter (D) and the Plate Hooks into the pockets of the VESA Adapter. 2 Person Mounting is Recommended *Monitor & VESA Bracket may need to be angled backwards slightly when sliding on.
  • Page 12 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use 6mm Allen Wrench (T-B) to loosen the tilt joint...
  • Page 13 STEP 6 Adjusting Monitor Height Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-B) 10-20 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert 6mm Allen Wrench (T-B)
  • Page 14 STEP 7 Remove cable cover on Spring Arm (C) by pulling the sides away from the arm to unclip them. Slide cable cover on Lower Arm (B) forward to remove it. Manage cables in cable covers and re-install. Spring Arm (C) Cable Sleeve Lower Arm (B) Cable Sleeve To remove Lower Arm Sleeve, To remove Upper Arm Sleeve,...
  • Page 15 Adjust as Desired WARNING Ensure the display is alway positioned over the desk surface to prevent damage.
  • Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
