Pneumatic Arm
Single Monitor Desk Mount
SKU: STAND-V101G1/W
Instruction Manual
Assembly Video & Product Info
www.vivo-us.com/products/stand-v101g1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V101G1/W and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V101G1/W

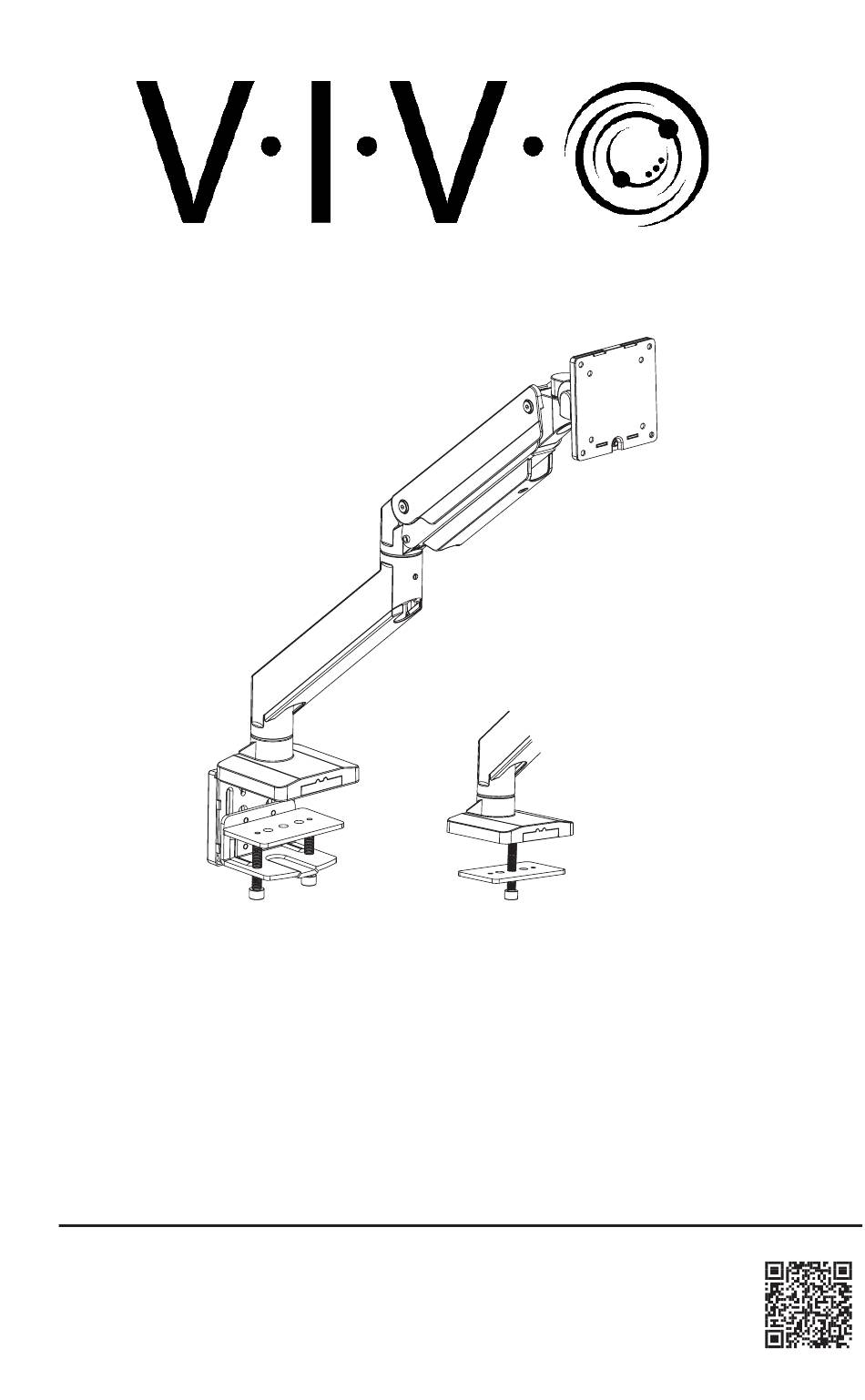

  • Page 1 Pneumatic Arm Single Monitor Desk Mount SKU: STAND-V101G1/W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v101g1...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x1) Base Lower Arm Gas Spring Arm VESA Bracket E (x1) F (x1) G (x1) H (x1) Clamp Plate Grommet Plate Soft Pad Cover I (x1) J (x1) Clamp Brace Clamp Included Hardware &...
  • Page 4: Tools Needed

    Tools Needed: Weight Capacity: 2.2-33lbs (1-15kg) Phillips Screwdriver...
  • Page 5: Assembly Steps

    ASSEMBLY STEPS STEP 1 Option 1: Clamp Assembly Desktop Thickness: 0.40” - 3.35” (10mm - 85mm) Peel off adhesive cover from Soft Pad (G) Attach Clamp Brace (I) to Base (A) and apply to underside of Base (A). using M6x12mm Screws (S-A) and 4mm Allen Wrench (T-B).
  • Page 6 Option 1: Clamp Assembly Cont’d Place Clamp Plate (E) on top of clamp bolts. 10-58mm 50-85mm If your desktop is 0.4-2.28” (10-58mm) If your desktop is 1.97-3.35” (50-85mm) thick, assemble the Clamp (J) to the top thick, assemble the Clamp (J) to the bottom four holes of the Clamp Brace (I).
  • Page 7 Option 2: Grommet Mount For Desktop Thickness .39 - 1.57” (10mm - 40mm) Attach Grommet Plate (F) to Base (A) Peel off adhesive cover from Soft Pad (G) using M6x12mm Screws (S-A) and and apply to underside of Base (A). 4mm Allen Wrench (T-B).
  • Page 8 STEP 2 Place Lower Arm (B) on top of Base (A). Secure by turning the Lower Screw on Lower Arm (B) in back with 3mm Allen Wrench (T-A). 90° 180° Upper Screw Lower Screw Secure Lower Arm (B) with only the Secure Lower Arm (B) with both the Lower Screw for full 180 degree swivel Lower Screw and the Upper Screw to...
  • Page 9 STEP 3 Assemble Gas Spring Arm (C) to Lower Arm (B). Secure by tightening the Set Screw in Lower Arm using 3mm Allen Wrench (T-A). Set Screw...
  • Page 10 STEP 4 Connect VESA Bracket (D) to Gas Spring Arm (C) using Spacer (S-B), M8x25mm Screw (S-C), and 6mm Allen Wrench (T-C). Make sure that hexagon side of Spacer (S-B) is facing upward towards VESA Bracket (D). Remove Thumbscrew (D1) from back of VESA Bracket (D). Separate VESA Plate (D2) from VESA Bracket (D).
  • Page 11 STEP 5 Install VESA Plate (D2) to monitor using M4x12mm Screws (M-A) or M5x12mm Screws (M-B) with M5 Washers (M-C), making sure the arrow on Front VESA Plate (D2) is pointing up.
  • Page 12 STEP 6 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint: Set Angle 6mm Allen Wrench (T-C) Firmly grip the VESA Bracket and loosen the Tilt Joint Adjustment adjust to your desired viewing Screw, located on the side of VESA angle, and hold in place.
  • Page 13 STEP 7 With the assistance of a second person, line up the VESA Plate (D2) on your monitor with the VESA Bracket and the Plate Hooks into the pockets of the VESA Brackets. Monitor & VESA Bracket may need to be angled backwards slightly when sliding on. Secure using Thumbscrew (D1).
  • Page 14 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use Allen Wrench (T-C)
  • Page 15 STEP 8 Adjusting Monitor Height Adjustment Screw Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-C) 10-20 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert...
  • Page 16 STEP 9 Remove Cable Cover on Gas Spring Arm (C) using a Phillips screwdriver. Slide Cable Cover on Lower Arm (B) forward to remove. Organize cables, then reinstall cable covers to Gas Spring Arm and Lower Arm (B).
  • Page 17 Adjustment Range and Storage 90˚ 90˚ 180˚ 180˚ Your monitor can be turned left Allen Wrenches (T-A through and right up to 90 degrees, and T-C) can be stored in the Clamp can be turned on it’s side for a Cover (H).
  • Page 18 ** WARNING - RISK OF TIPPING** DO NOT extend the monitor behind the desk, as this may cause instablility and tip the desk over.
  • Page 19 [THIS PAGE INTENTIONALLY LEFT BLANK]...
  • Page 20 LAST UPDATED: 06/19/24 REV3 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
