PANEL METER FOR INW PT12 SENSOR
Setup
Connecting the Meter
Connecting the Meter
Sensor Connection

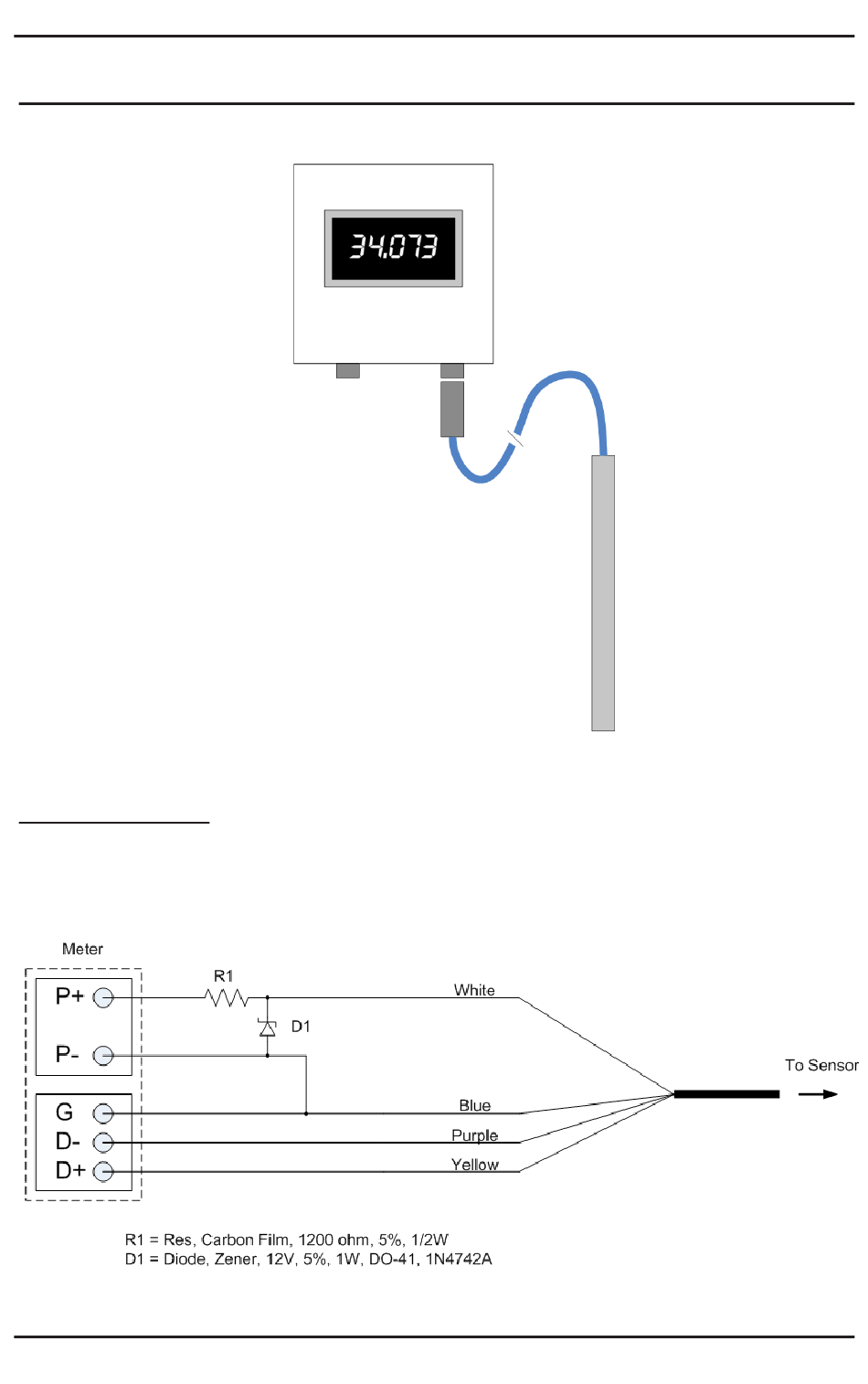

The sensor is wired to the meter as shown in Figure 2. The meter supplies 12 VDC
power to the sensor through a dropping resistor and voltage regulating zener diode.
Direct wiring sensor
Seametrics • 253.872.0284
Page 6
inwusa.com
