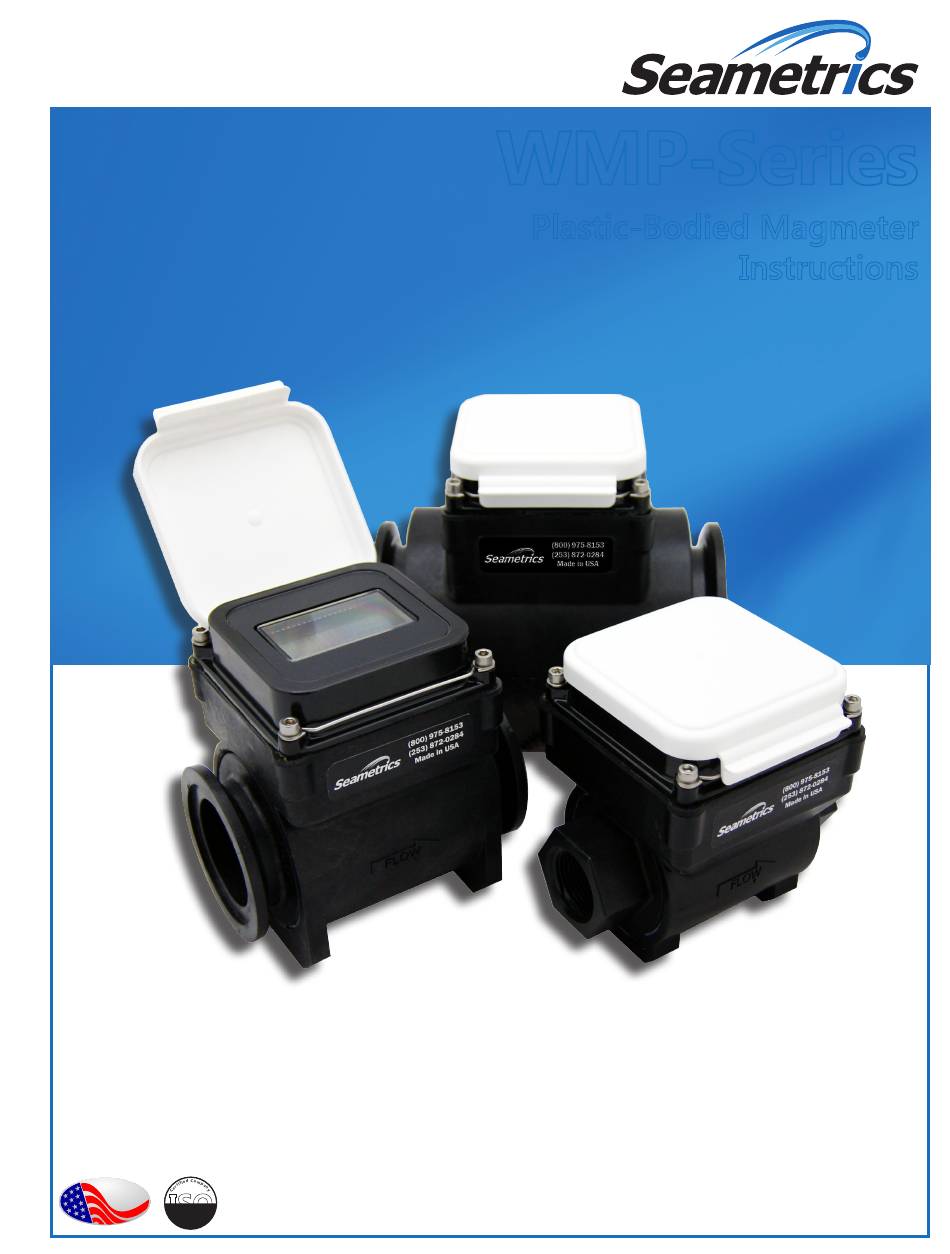

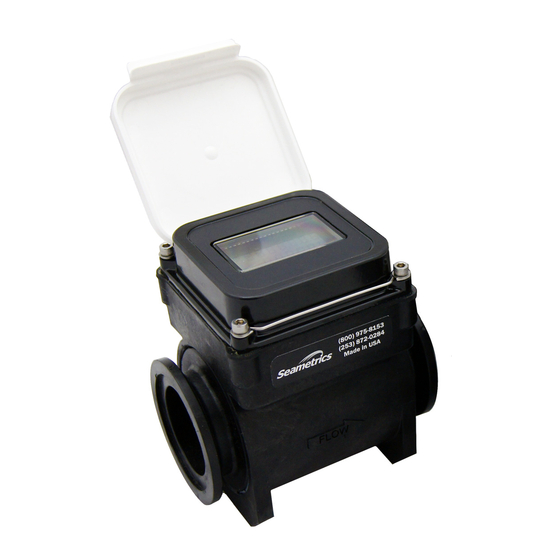

- Page 1 WMP-Series Plastic-Bodied Magmeter Instructions 3 inch 2 inch 1 inch PROUDLY MADE IN THE 9001:2008...
-
Page 2: General Information
Seametrics and other displays and controls for pipe requirements. The WMP-Series can be used in piping remote reading, data logging, pulse-to-analog conversion, configurations where there is little space between the and telemetry applications. -
Page 3: Specifications
Hardware/software, conductivity based Conductivity >20 microSiemens/cm Environmental NEMA 4X standard Electrical Connection 5-pin male circular connector, mates to industry standard cable (WMP101 only) *Specifications subject to change • Please consult our website for current data (seametrics.com). Seametrics • 253.872.0284 Page 3 seametrics.com... - Page 4 GENERAL INFORMATION WMP-SERIES INSTRUCTIONS Dimensions Dimensions shown without the Seametrics WMP Fitting Kit. 1 Inch 2 Inch 3 Inch 4.3” 4.625” 4.625” 8.8” 9.50” 1.00” 10.75” 3.25” 4.40” 2.00” 3.00” 4.55” 5.50” 5.50” 7.30” 5.38” 6.03” 7.30” 1.63” 2.03” 2.625”...
- Page 5 Some piping these to piping ends, a variety of kits are available from any conditions require more than this. See next page for Banjo dealer or from Seametrics. recommendations. Follow the diagrams below to make the connections.
- Page 6 Allows air pockets to form at sensor Ensures full pipe Possible Problem Better Installation Post-valve cavitation can create air pocket Keeps pipe full at sensor Possible Problem Better Installation Air can be trapped Allows air to bleed off Seametrics • 253.872.0284 Page 6 seametrics.com...
- Page 7 On the battery-powered WMP104 there is a low-battery indicator (“low bat”) when the battery voltage drops below a certain point. Batteries should be changed within four weeks of the appearance of this indicator. Seametrics • 253.872.0284 Page 7 seametrics.com...
- Page 8 Flow but no flow rate reading Heavily coated electrodes Remove meter and wipe electrodes Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA LT-65650290r1.2 20161006 (P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com 10/6/16...
