Summary of Contents for Seametrics FT430

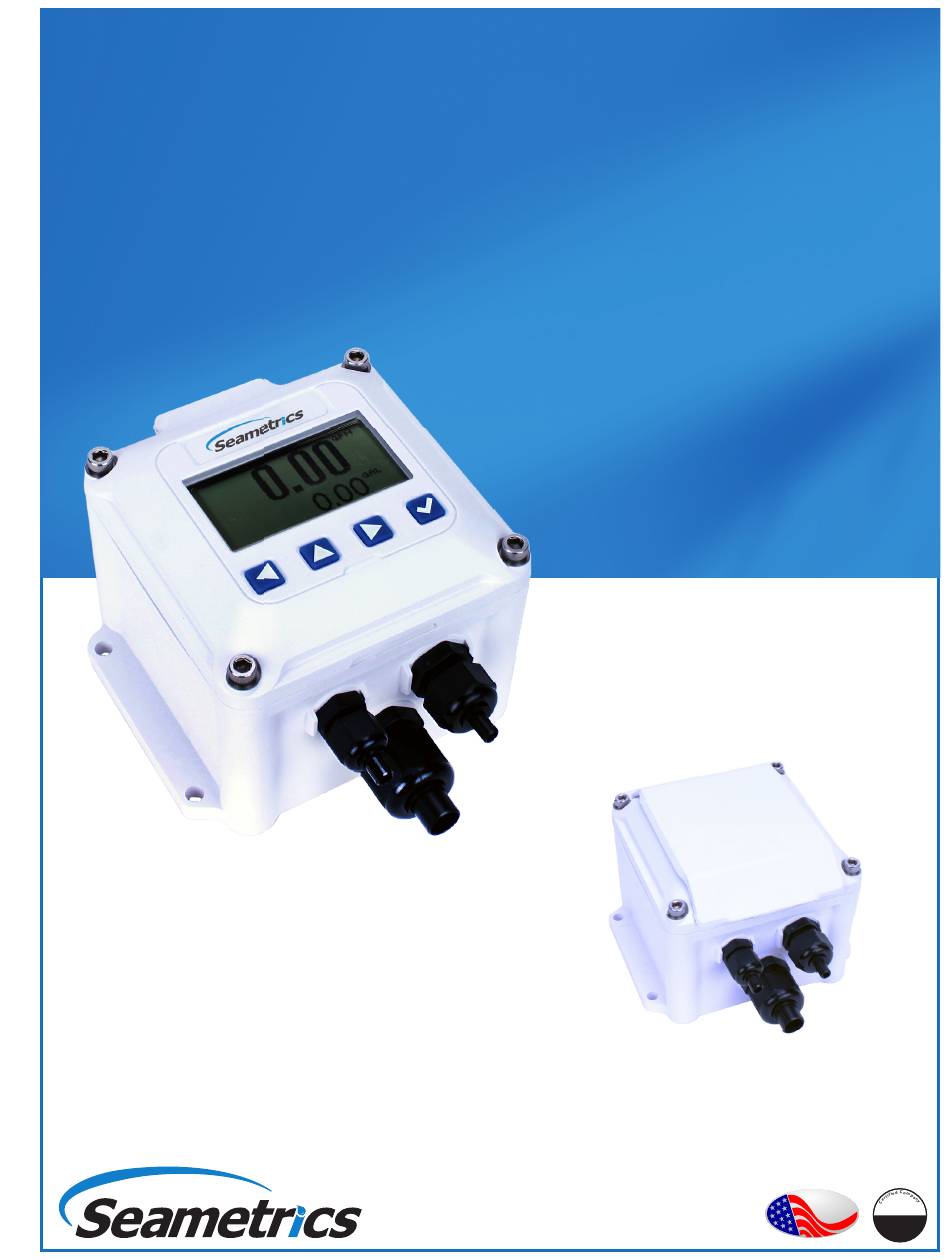

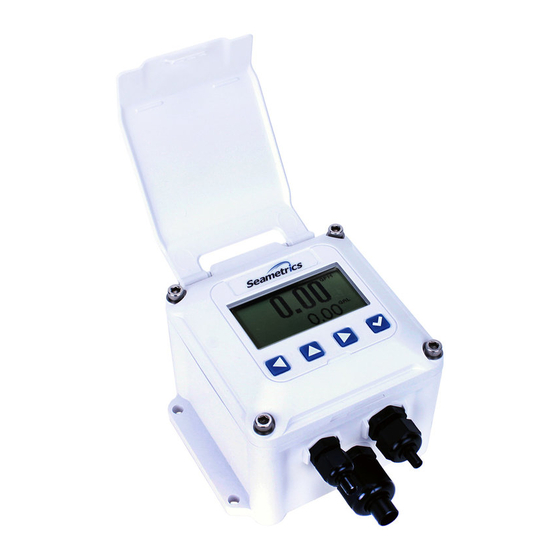

- Page 1 FT430/440/450 FT430/440/450 Rate/Total Indicator Rate/Total Indicator Instructions Instructions Optional Protective Cover Closed PROUDLY MADE IN THE 9001...
-
Page 2: Table Of Contents
Panel Mount ..................................Page 7 Connection Diagrams FT450 Standard ................................Page 8 FT430/3-Wire Mechanical Meter ...........................Page 8 Connections for FT430-139 or FT440-139 —115Vac Option ..............Page 9 FT440/3-wire Mechanical/Dual Scaled Pulse Output ..................Page 9 FT440/EX Magmeter ..............................Page 10 FT440-139/EX Magmeter ............................Page 10 FT4XX Sensus Tranceiver Mount..........................Page 11 Settings K-Factor ...................................Page 12... -
Page 3: General Information
These flow The FT430 and FT450 have one scaled pulse output and computers can be password protected to prevent resetting one pulse pass through. The FT440 has two scaled pulse the total or changing configuration settings. -
Page 4: Specifications
Cubic Feet x 1000, Million Gallon, Acre Inch, Fluid Ounce, Barrels Outputs Pulse Output 1 Scaled pulse output, high alarm output or low alarm output. Optoisolated on FT430 and FT440. Scaled pulse output, high alarm Pulse Output 2 Pulse pass through Pulse pass through output or low alarm output. -
Page 5: Pulse Output Functions
SAME AS SENSOR INPUT SAME AS SENSOR INPUT ISOLATION 300 V NOTE 1 CONFIGURABLE AS ALARM NOTE 1: 150 V effective isolation when using Seametrics micropower sensors. • NOTE 2: With 2000 ohm or lower pull-up resistance. 0.10 (2.5) .10" 0.78 0.50 .78"... -
Page 6: Installation
A meter-mounted indicator can be converted to a wall An FT430/440 module can be converted from a wall-mount mount using an adapter mounting kit. Contact distributor to an IP meter-mount unit using the mounting kit (contact for information. -
Page 7: Panel Mount
Note: In addition to the panel cut out for the display, you Keep in mind that most cables are not sealed on the inside will need a small cut out in the panel, close to the FT430/440, and a cable that is well sealed to a housing but left open on to mount the data logger connector. -
Page 8: Connection Diagrams
WHITE Pulse Responsive Metering Pump Current Sinking Micropower Flow Sensor Polarity-Sensitive Connections for FT430/3-Wire Mechanical Meter FT430 Pulse Pass-thru Connecting the ENDG terminal to earth ground is recommended for protection against voltage spikes or lightning. Also see '* EGND - Additional protection against... -
Page 9: Connections For Ft430-139 Or Ft440-139 -115Vac Option
CONNECTION DIAGRAMS FT430/440/450 INSTRUCTIONS Connections for FT430-139 or FT440-139 —115Vac Option Device 4-20mA Device Dashed line shows (-) terminal connection if 4-20mA device is not used (e.g. FT430) 12Vdc 24Vdc BLACK WHITE GREEN FT430/FT440 FT430-139 FT440-139 (Dual Power Supply) Lower Housing... -
Page 10: Ft440/Ex Magmeter
CONNECTION DIAGRAMS FT430/440/450 INSTRUCTIONS Connections for FT440/EX Magmeter Connecting the ENDG terminal to earth ground is recommended for protection against voltage spikes or lightning. 4-20mA Black FT440 Also see '* EGND - Additional Device protection against voltage spikes' on page 8... -
Page 11: Ft4Xx Sensus Tranceiver Mount
FT4XX Eqipped with Sensus Board (Side View) Red (Power/Clock) Sensus Tranceiver Black (Ground) Green (Data) Black Green NOTE: A Sensus 2m (6 ft) output cable is prewired to the Seametrics product at the factory. Longer cables are optional. Seametrics • 253.872.0284 Page 11 seametrics.com... -
Page 12: Settings
The left/right keys are used to move through the menus and position the cursor during data entry. The up arrow is The K-factor on any Seametrics flow sensor fitting or in- used to scroll through the available values that are to be line meter can be found on the model-serial label. - Page 13 SETTINGS FT430/440/450 INSTRUCTIONS T UNIT Rate/minute Pulse Output in Hz displayed on FT SETP = 0.1 SETP = 0.5 SETP = 1.0 SETP = 10.0 SET K R UNIT T UNIT SET D 1.6 Hz .33 Hz .16 Hz .016 Hz...
-
Page 14: Ft440 Secondary Menu Functions
View or change the function of Out P tab on the main menu. PRESS TO SET PASSCODE The FT440 has two available alarm outputs while the FT430 AND CHANGE PROTECTED and FT450 only have one. The P/A tab changes the function FEATURES of the scaled pulse outputs. -
Page 15: Troubleshooting
TROUBLESHOOTING FT430/440/450 INSTRUCTIONS Problem Probable Causes Things to try… Display blank No power to the unit Check for minimum 12 Vdc at power terminals Short in sensor circuit Disconnect sensor, see if display returns (zero flow rate) Battery dead or loose (FT450 only) - Page 16 The limited warranty set forth below is given by Seametrics, with respect to Seametrics brand products purchased in the United States of America. Seametrics warrants that products manufactured by Seametrics, when delivered to you in new condition in their original containers and properly installed, shall be free from defects in material and workmanship.
