Platform Support

2 Platform Support
2.1

Arduino Board Support

The S1D13781 Shield TFT board will work with the Arduino Due board only. It will not work with
Arduino MEGA, Arduino Uno, or Arduino Leonardo boards. Although the connectors are compatible, the
IO on these boards are 5V and the S1D13781 Shield TFT board only supports 3.3V IO.
NOTE:
Connecting the S1D13781 Shield TFT board to a board other than the Arduino Due board may result in
damage to the S1D13781 Shield board.
For more information on the Arduino Due, visit https://www.arduino.cc/.
2.1.1

Connection to Arduino Due

The S1D13781 Shield TFT board plugs into the Arduino Due board using 3 connectors:
•
J1 - which also provides power
•
J2 - which has the SPI signals
•
J3 – which has the slave select signal for the Arduino Due
The S1D13781 is configured to use the SPI host interface. The board will connect on the SPI bus to the
Atmel MCU on the Arduino Due.
6

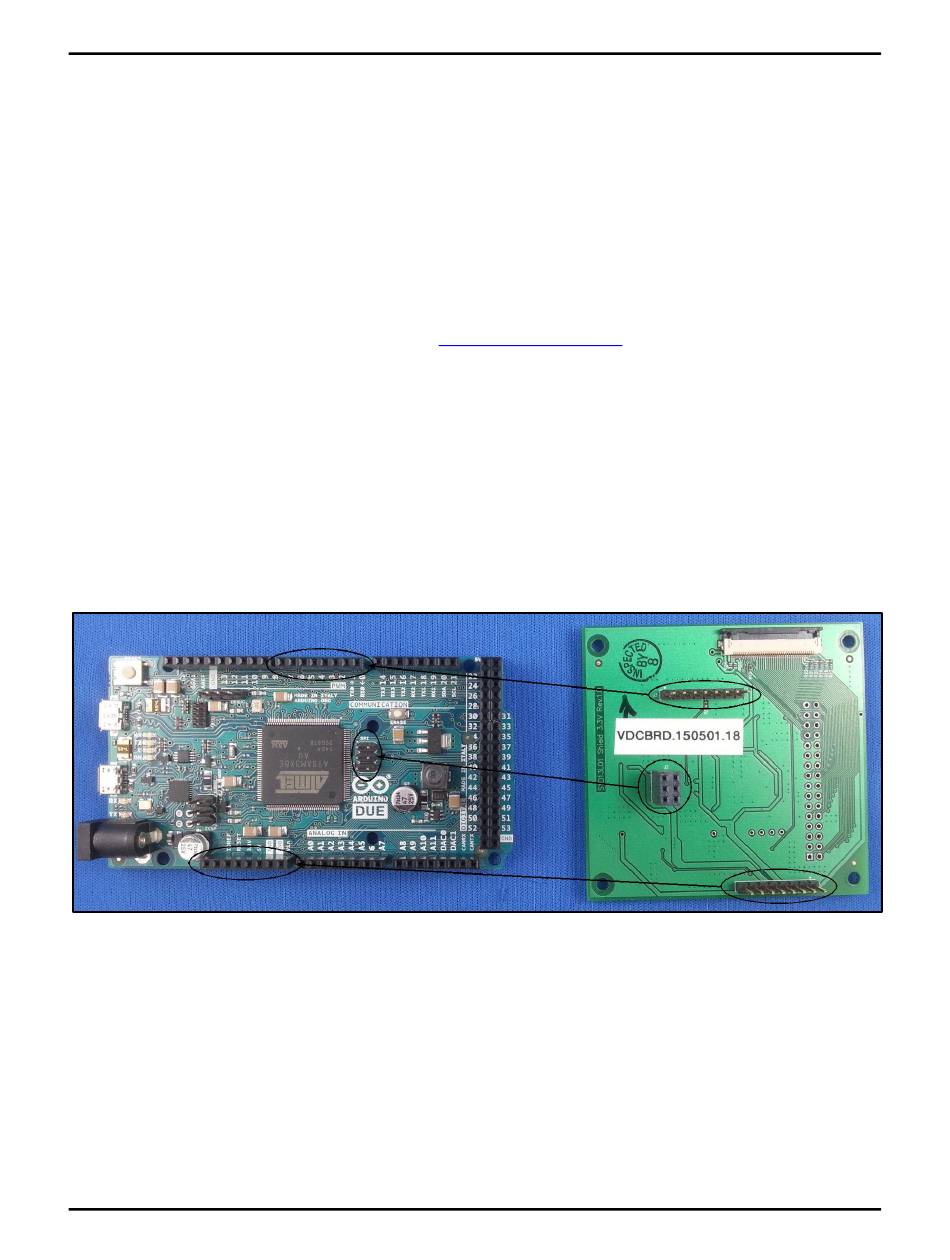

S1D13781 Shield to Arduino Due Connections
