3.2
QVGA Displays
The following lists some of the compatible QVGA (320x240) LCD displays supported:
•
Newhaven Display NHD-3.5-320240MF-ATXL#-1
•
Hantronix HDA351-LV
•
Tianma TM035KDH03
•
EvervisionVGG3222425-6UFLWA
•
Topway LMT035KDH03
•
All Shore ASI-T-350EA3NN/D
•
Powertip PH320240T-006-I-Q
•
Ampire Am320240L2TMQW-TB0H
•
Logic Tech LTTD320240035-L1RT
•
US Micro USMP-TT035Q-01D
•
Tech Toys LVC75Z779V2S
•
Microtips MTF-TQ35SP741-AV
To connect QVGA displays, use connector CN2 which is located on top of the board. The panel flex cable
must have the contact pads toward the PCB.
S5U13781R01C100 Shield Board
(Rev.1.02)

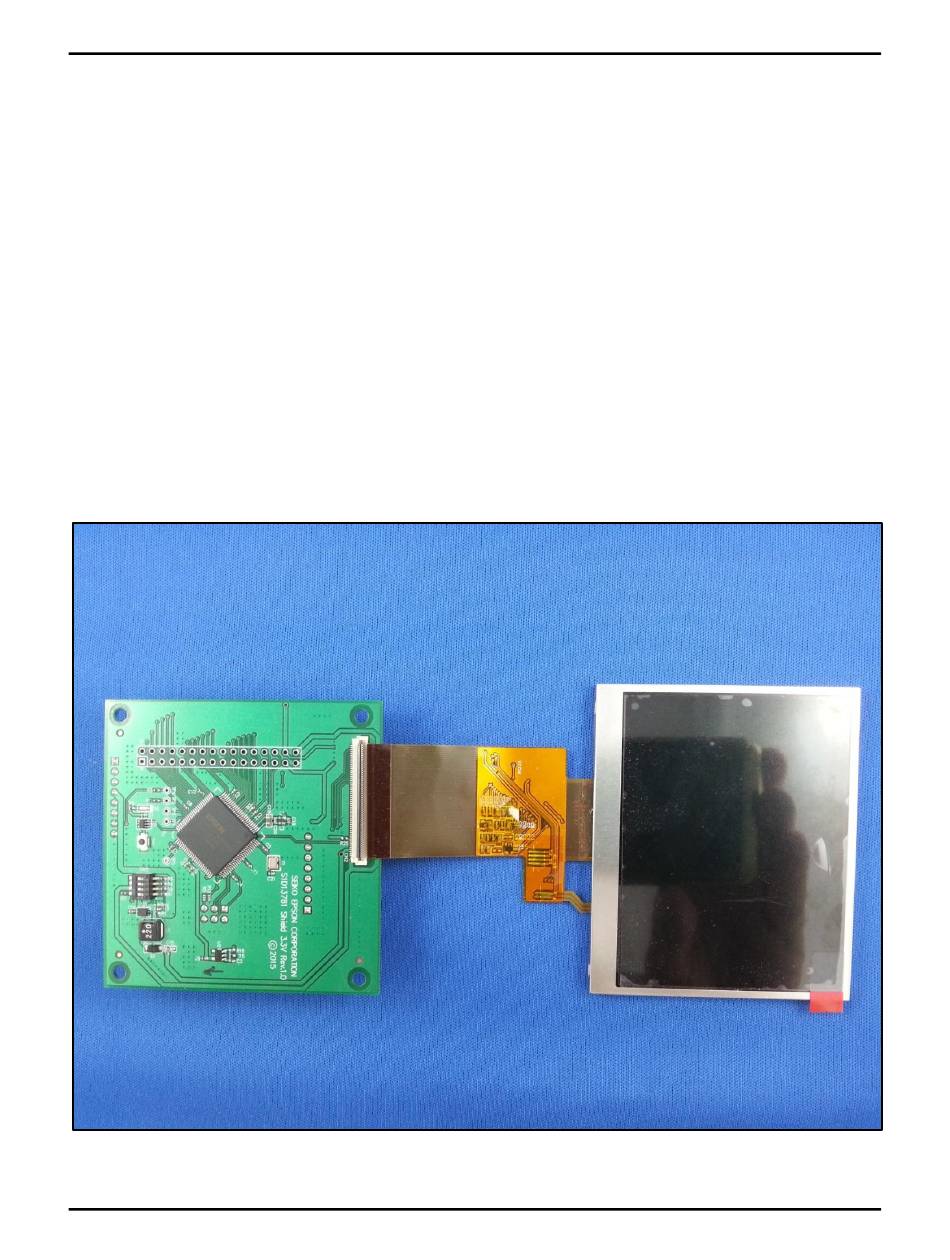

Typical QVGA Panel Connection
Seiko Epson Corporation
LCD Displays Supported
11
