Power, Clock and Reset
4.2
Clock and Reset
The LCD controller has the clock provided by an Epson 1MHz oscillator, Y1. The LCD controller can be
reset by a reset button, SW1, on the S1D13781 Shield TFT board.

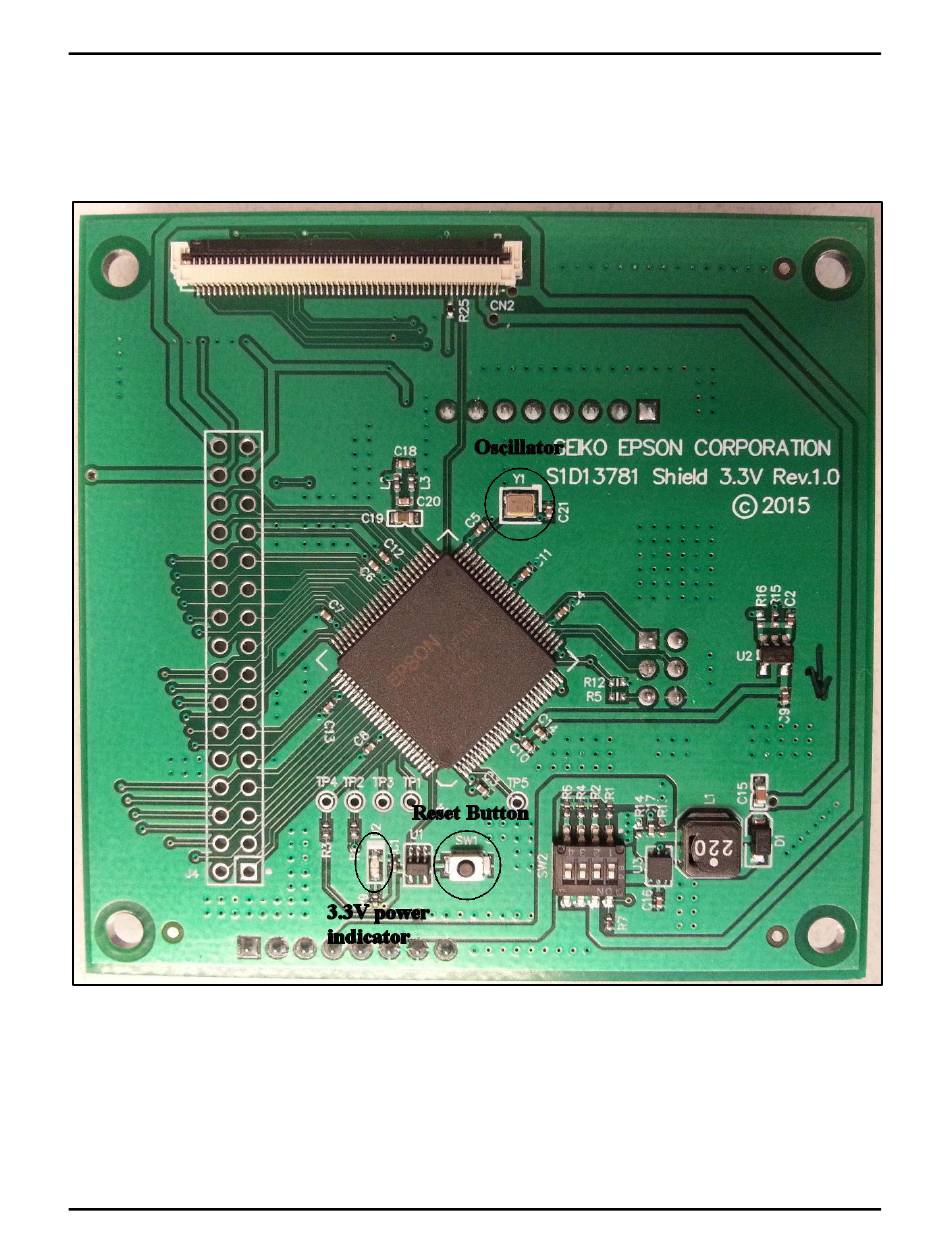

The following picture shows the position of each component.
Seiko Epson Corporation
S5U13781R01C100 Shield Board
14
(Rev. 1.02)
