LCD Displays Supported
In order to connect a Hantronix HDA430-3GH-1 WQVGA display to CN1, the following modifications
to the S1D13781 Shield TFT board are required. The resistors are located on the bottom of the board.
•
Remove 0 ohm resistors R17, R19 and R21
•
Solder 0 ohm resistors R18, R20, R22, R23 and R24

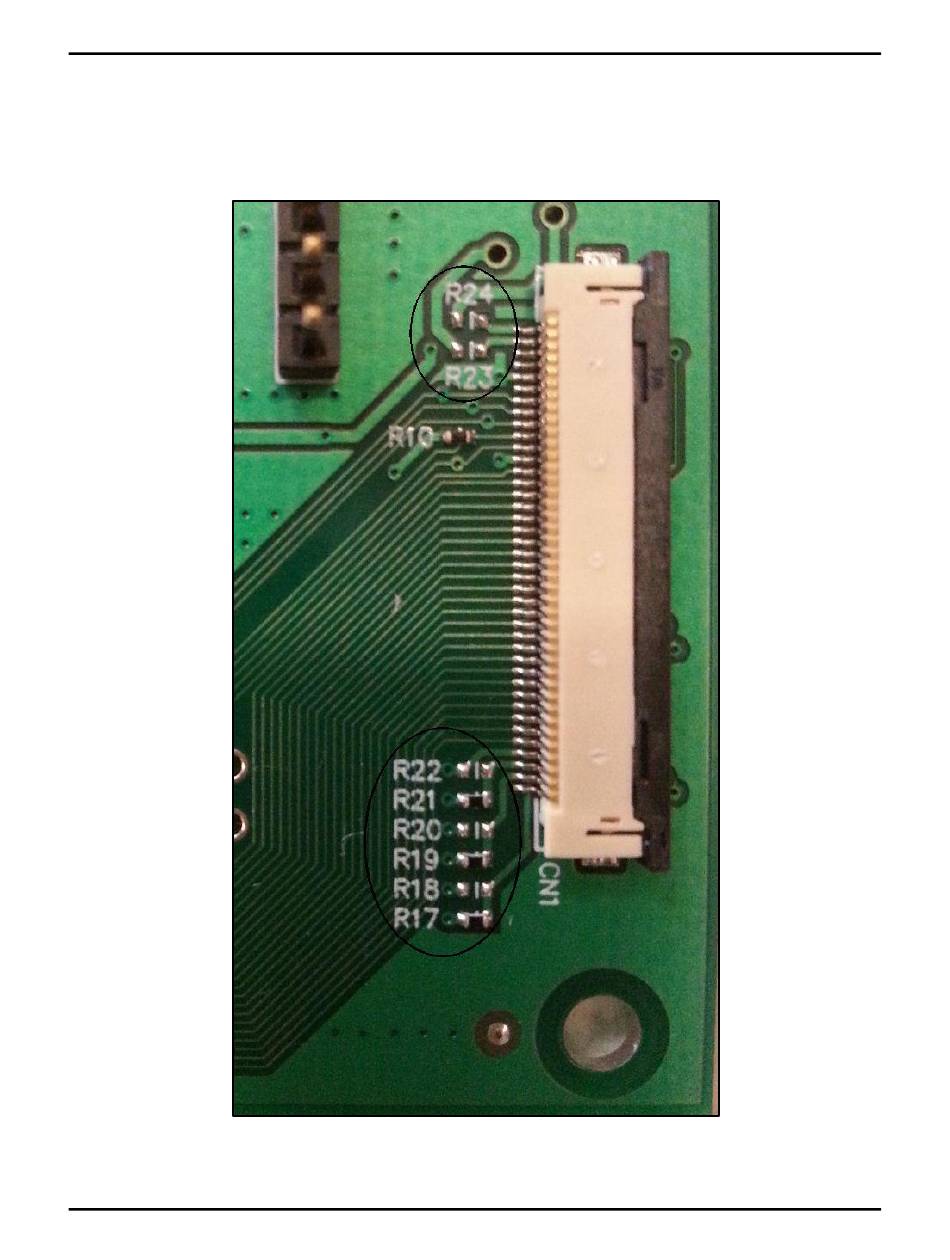

S1D13781 Shield TFT Board Modifications for Hantronix HDA430-3GH-1 WQVGA
10
Seiko Epson Corporation
S5U13781R01C100 Shield Board
(Rev. 1.02)
