INSTALLATION INSTRUCTIONS

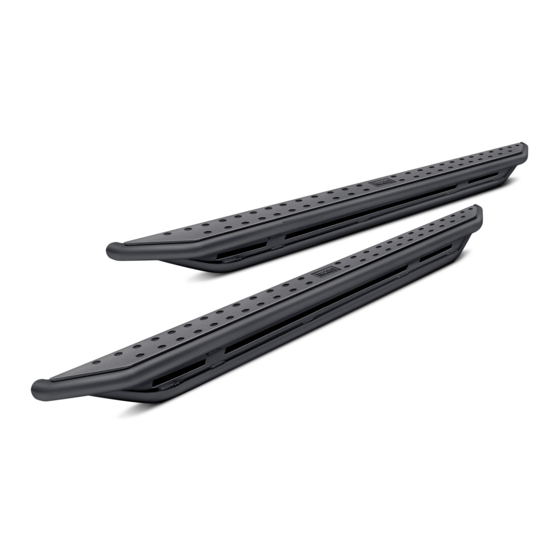

OUTLAW NERF STEP BARS
2019 Ram 1500 Crew Cab (Excl. 2019 Ram 1500 Classic)
58-54085
CONTENT
DESCRIPTION
DRIVER STEP BAR ASSEMBLY
CENTER MOUNTING BRACKET
REAR MOUNTING BRACKET
UNIVERSAL BRACKET
M8 SPLIT LOCK WASHER
M8 FLAT WASHER
M8 HEX NUT
M8 CARRIAGE BOLT
M10 HEX HEAD CAP SCREW
M10 BELLVILLE WASHER
M10 SERRATED FLANGE NUT
ITEM 5
1
ITEM 6
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
13MM SOCKET
13MM WRENCH
16MM SOCKET
16MM WRENCH
RATCHET
TORQUE WRENCH
ITEM 7
DATE: 04/17/19
