Westin 58-41175 Installation Instructions Manual

ITEM QUANTITY
1 2
2 2
3 1
4 1
5 1
6 1
7 1
8 1
9 1
10 2
11 12
12 12
13 12
14 12
15 4
16 4
17 4
18 4
19 12
20 12
21 14
22 28
23 4
24 4
25 4
26 2
27 2
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N. 75-5841175-RevA
ECO #: W18-0220
INSTALLATION INSTRUCTIONS
APPLICATION:
2017-2019 Ford F-250/350/450/550 Super Duty
PART NUMBER: 58-41175

CONTENT

DESCRIPTION
SIDE POD ASSEMBLY (1 DRIVER, 1 PASSENGER)
MESH SIDE COVERS (1 DRIVER, 1 PASSENGER)
CENTER SECTION
LED LIGHT BRACKET
DRIVER MOUNTING BRACKET
PASSENGER MOUNTING BRACKET
PASSENGER SUPPORT BRACKET
DRIVER SUPPORT BRACKET
DRIVER SIDE STRAP
PASSENGER SIDE STRAP
M6 BUTTON HEAD SCREW
M6 FLAT WASHER
M6 SERRATED FLANGE NUT
M6 LOCK WASHER
M8 FLAT WASHER
M8 LOCK WASHER
M8 SERRATED FLANGE NUT
M8 BUTTON HEAD BOLTS
M12 SERRATED FLANGE NUT
M12 HEX BOLT
M12 LOCK WASHER (2 BLACK ZINC)
M12 FLAT WASHER (4 BLACK ZINC)
M10 HEX HEAD BOLT
M10 SERRATED FLANGE NUT
M10 FLAT WASHER
M12 HEX NUT (BLACK ZINC)
M12 BUTTON HEAD BOLTS (BLACK ZINC)
1

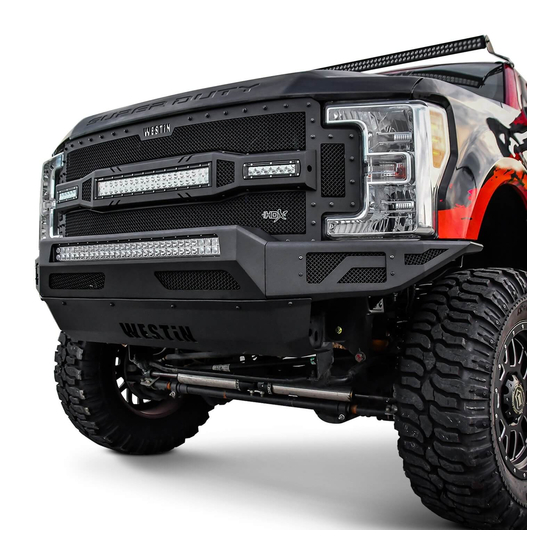

PRO-MOD BUMPER
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
10MM SOCKET
10MM WRENCH
13MM SOCKET
13MM WRENCH
16MM SOCKET
16MM WRENCH
18MM SOCKET
19MM WRENCH
RATCHET
TORQUE WRENCH
DATE: 02/25/19
