Westin 58-54165 Installation Instructions

ITEM QUANTITY
1 1
2 1
3 1
4 1
5 1
6 1
7 1
8 1
9 3
10 3
11 6
12 24
13 24
14 18
15 42
16 12
17 12
18 12
19 12
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
ITEM 1
NOTE: DRIVER SIDE ITEMS SHOWN. PASSENGER SIDE ITEMS ARE OPPOSITES.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-5854165-RevA ECO #: W19-0160
INSTALLATION INSTRUCTIONS

APPLICATION:

2020 Jeep Gladiator

PART NUMBER:

58-54165

CONTENT

DESCRIPTION
OUTLAW NERF STEP BAR DRIVER SIDE
OUTLAW NERF STEP BAR PASSENGER SIDE
FRONT MOUNTING BRACKET DRIVER SIDE
FRONT MOUNTING BRACKET PASSENGER SIDE
CENTER MOUNTING BRACKET DRIVER SIDE
CENTER MOUNTING BRACKET PASSENGER SIDE
REAR MOUNTING BRACKET DRIVER SIDE
REAR MOUNTING BRACKET PASSENGER SIDE
SUPPORT BRACKET DRIVER SIDE
SUPPORT BRACKET PASSENGER SIDE
M8 EXTRUDED U-NUT (YELLOW ZINC)
M8 HEX HEAD CAP SCREW (YELLOW ZINC)
M8 SPLIT LOCK WASHER (YELLOW ZINC)
M8 HEX NUT (YELLOW ZINC)
M8 FLAT WASHER (YELLOW ZINC)
M6 HEX NUT (YELLOW ZINC)
M6 FLAT WASHER (YELLOW ZINC)
M6 SPLIT LOCK WASHER (YELLOW ZINC)
M6 CARRIAGE BOLT (BLACK ZINC)
ITEM 3
1

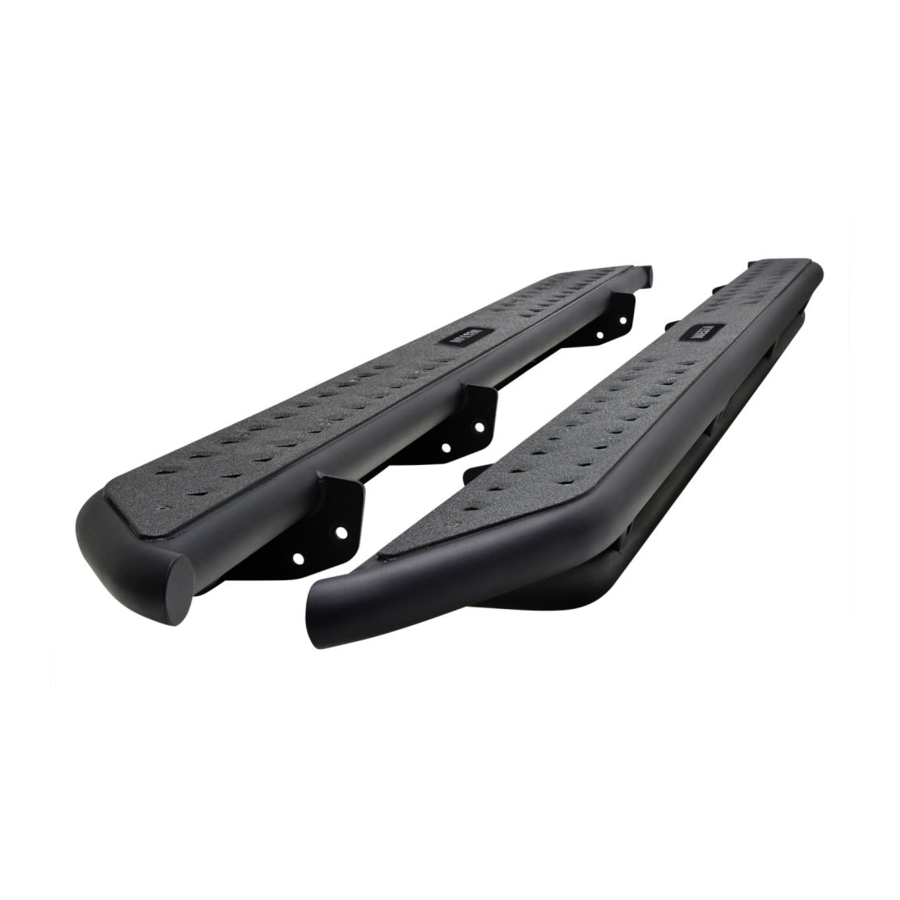

OUTLAW NERF STEP BARS
Longer
Shorter
ITEM 5 ITEM 7
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
RATCHET
TORQUE WRENCH
10MM SOCKET
13MM SOCKET
13MM WRENCH
SOCKET EXT.
ALLEN WRENCH
ITEM 9
DATE: 05/26/20
