Westin 58-81085 Installation Instructions Manual

ITEM QUANTITY
1 1
2 1
3 1
4 4
5 1
6 4
7 8
8 4
9 4
10 4
11 4
12 4
13 4
14 5
15 5
16 5
17 2
18 2
19 2
20 2
21 10
22 10
23 2
24 2
25 4
26 8
27 1
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-588108-RevA ECO #: W19-0084
INSTALLATION INSTRUCTIONS
APPLICATION:
2019-2020 Ford Ranger
PART NUMBER:
58-81085

CONTENT

DESCRIPTION

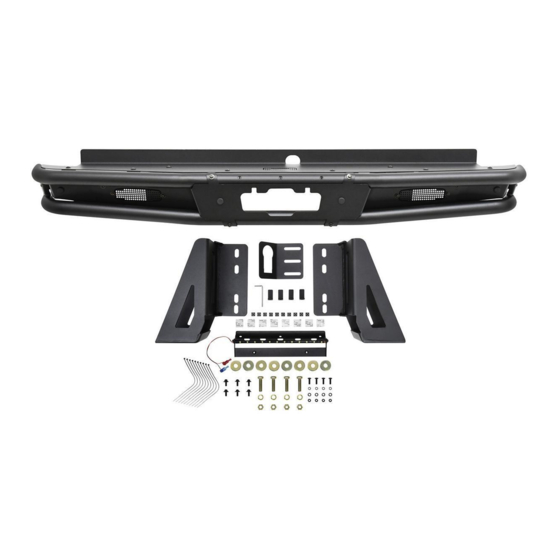

REAR BUMPER
DRIVER FRAME BRACKET
PASSENGER FRAME BRACKET
SENSOR L-TAB
TOW PLUG BRACKET
M12 HEX NUT (YELLOW ZINC)
M12 FLAT WASHER (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
M12 HEX HEAD BOLT (YELLOW ZINC)
M6 CARRIAGE BOLT (BLACK ZINC)
M6 SPLIT LOCK WASHER (BLACK ZINC)
M6 FLAT WASHER (BLACK ZINC)
M6 HEX NUT (BLACK ZINC)
M6 BUTTON HEAD HEX BOLT SEMS HARDWARE
M6 FLAT WASHER SEMS HARDWARE
M6 LOCK WASHER SEMS HARDWARE
M8 CARRIAGE BOLT (BLACK ZINC)
M8 HEX NUT (BLACK ZINC)
M8 FLAT WASHER (BLACK ZINC)
M8 SPLIT LOCK WASHER (BLACK ZINC)
ZIP TIES
ZIP TIE MOUNTS
T-TAB MALE CONNECTOR
T-TAB FEMALE CONNECTOR
SENSOR RUBBER GROMMETS
DOUBLE SIDED SQUARE TAPE
LISCENSE PLATE SWINGOUT
1
OUTLAW REAR BUMPER
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
18MM WRENCH
5MM ALLEN
13MM SOCKET
17MM SOCKET
19MM SOCKET
13MM WRENCH
17MM WRENCH
19MM WRENCH
10MM SOCKET
10MM WRENCH
PLYER TOOL
RATCHET
TORQUE WRENCH
ELECTRICAL TAPE
DATE: 4/01/2020
