Westin 58-41215 Installation Instructions Manual

ITEM QUANTITY
1 1
2 1
3 1
4 1
5 1
6 1
7 1
8 1
9 1
10 1
11 4
12 4
13 2
14 14
15 4
16 4
17 10
18 4
19 8
20 4
21 4
22 4
23 4
24 4
25 2
26 12
27 12
28 6
29 6
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-5841215-RevA ECO #: W19-0085
INSTALLATION INSTRUCTIONS
APPLICATION:
2019 Chevrolet Silverado 1500 (Excl. 2019 Silverado LD)
PART NUMBER:
58-41215
CONTENT
DESCRIPTION
CENTER SECTION
DRIVER POD
PASSENGER POD
VALENCE SKID PLATE
DRIVER MOUNTING BRACKET
PASSENGER MOUNTING BRACKET
DRIVER SUPPORT STRAP
PASSENGER SUPPORT STRAP
DRIVER SKID VALENCE MOUNTING BRACKET
PASSENGER SKID VALENCE MOUNTING BRACKET
SENSOR TAB
SENSOR HOLE PLUG
LED LIGHT BRACKET
M12 FLAT WASHER (YELLOW ZINC)
M12 HEX HEAD BOLT (YELLOW ZINC)
M12 SERRATED FLANGE NUT (YELLOW ZINC)
M10 SERRATED FLANGE NUT (YELLOW ZINC)
M10 HEX HEAD BOLT (YELLOW ZINC)
M10 FLAT WASHER (YELLOW ZINC)
M6 HEX NUT (YELLOW ZINC)
M6 SQUARE NECK ROUND HEAD BOLT (YELLOW ZINC)
M6 LOCK WASHER (YELLOW ZINC)
M6 FLAT WASHER (YELLOW ZINC)
M8 U-CLIP (YELLOW ZINC)
M8 SERRATED FLANGE NUT (YELLOW ZINC)
M6 FLAT WASHER (BLACK ZINC)
M6 BUTTON HEAD BOLT (BLACK ZINC)
M10 FLAT WASHER (BLACK ZINC)
M10 BUTTON HEAD BOLT (BLACK ZINC)

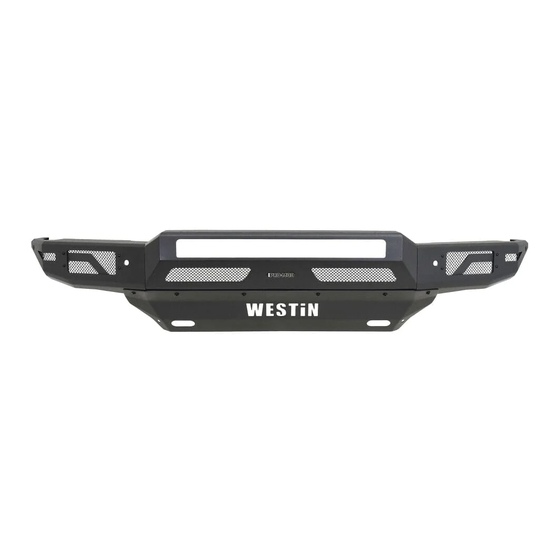

PRO MOD FRONT BUMPER
Thank you for choosing Westin products
for additional installation assistance please call
1
TOOLS NEEDED
18MM SOCKET
18MM WRENCH
19MM SOCKET
19MM WRENCH
10MM SOCKET
10MM WRENCH
15MM SOCKET
RATCHET
TORQUE WRENCH
PLIERS
UTILITY KNIFE
Customer Service (800) 793-7846
www.westinautomotive.com
DATE: 09/23/19
