Westin 58-41165 Installation Instructions Manual

ITEM QUANTITY
1 1
2 1
3 1
4 1
5 1
6 4
7 2
8 1
9 1
10 4
11 12
12 12
13 2
14 4
15 2
16 2
17 4
18 4
19 4
20 8
21 8
22 4
23 4
24 12
25 4
26 4
27 4
28 4
29, 30 2
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-5841165-RevA ECO #: W18-0237
INSTALLATION INSTRUCTIONS
APPLICATION:
Chevrolet Silverado 2500/3500 2015-2019
PART NUMBER:
58-41165
CONTENT
DESCRIPTION
DRIVER POD
PASSENGER POD
CENTER SECTION
DRIVER MOUNTING BRCKET
PASSENGER MOUNTING BRACKET
SENSOR L–TAB
LED LIGHT BRACKET
DRIVER SUPPORT STRAP
PASSENGER SUPPORT STRAP
SENSOR PLUG
M6 HEX DRIVE BUTTON HEAD BOLT (BLACK ZINC)
M6 FLAT WASHER (BLACK ZINC)
M8 HEX DRIVE BUTTON HEAD BOLT (BLACK ZINC)
M8 FLAT WASHER (BLACK ZINC)
M8 HEX NUT (BLACK ZINC)
M8 SPLIT LOCK WASHER (BLACK ZINC)
M12 SERRATED FLANGE NUT (YELLOW ZINC)
M12 HEX HEAD BOLT (YELLOW ZINC)
M12 LOCK WASHER (YELLOW ZINC)
M12 FLAT WASHER (YELLOW ZINC)
M10 FLAT WASHER (YELLOW ZINC)
M10 SERRATED FLANGE NUT (YELLOW ZINC)
M10 HEX HEAD BOLT (YELLOW ZINC)
M6 SERRATED FLANGE NUT (YELLOW ZINC)
M6 FLAT WASHER (YELLOW ZINC)
M6 HEX NUT (YELLOW ZINC)
M6 SQUARENECK ROUND HEAD BOLT (YELLOW ZINC)
M6 SPLIT LOCK WASHER (YELLOW ZINC)
MESH COVER PLATE (1 DRV, 1 PASS)
1

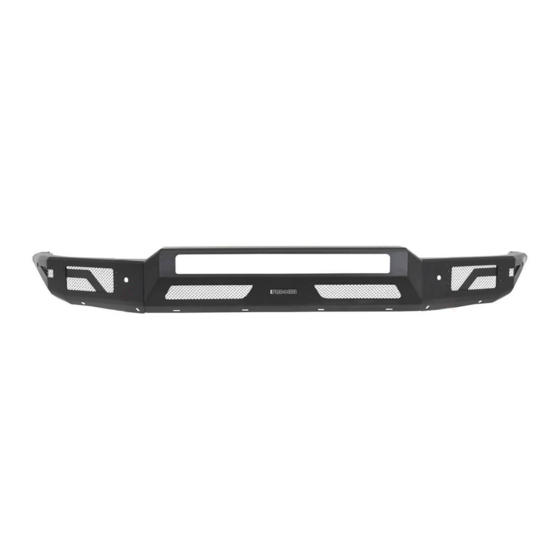

PROMOD FRONT BUMPER
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
10MM SOCKET
RATCHET
TORQUE WRENCH
10MM WRENCH
13MM SOCKET
13MM WRENCH
17MM SOCKET
17MM WRENCH
19MM SOCKET
19MM WRENCH
CUTTING TOOL
DATE: 9/5/19
