UMTS/HSPA(+) Module Series
UC200T-EM Hardware Design
6

Mechanical Dimensions

This chapter describes the mechanical dimensions of the module. All dimensions are measured in mm.
The tolerances for dimensions without tolerance values are ± 0.05mm.

6.1. Mechanical Dimensions of the Module

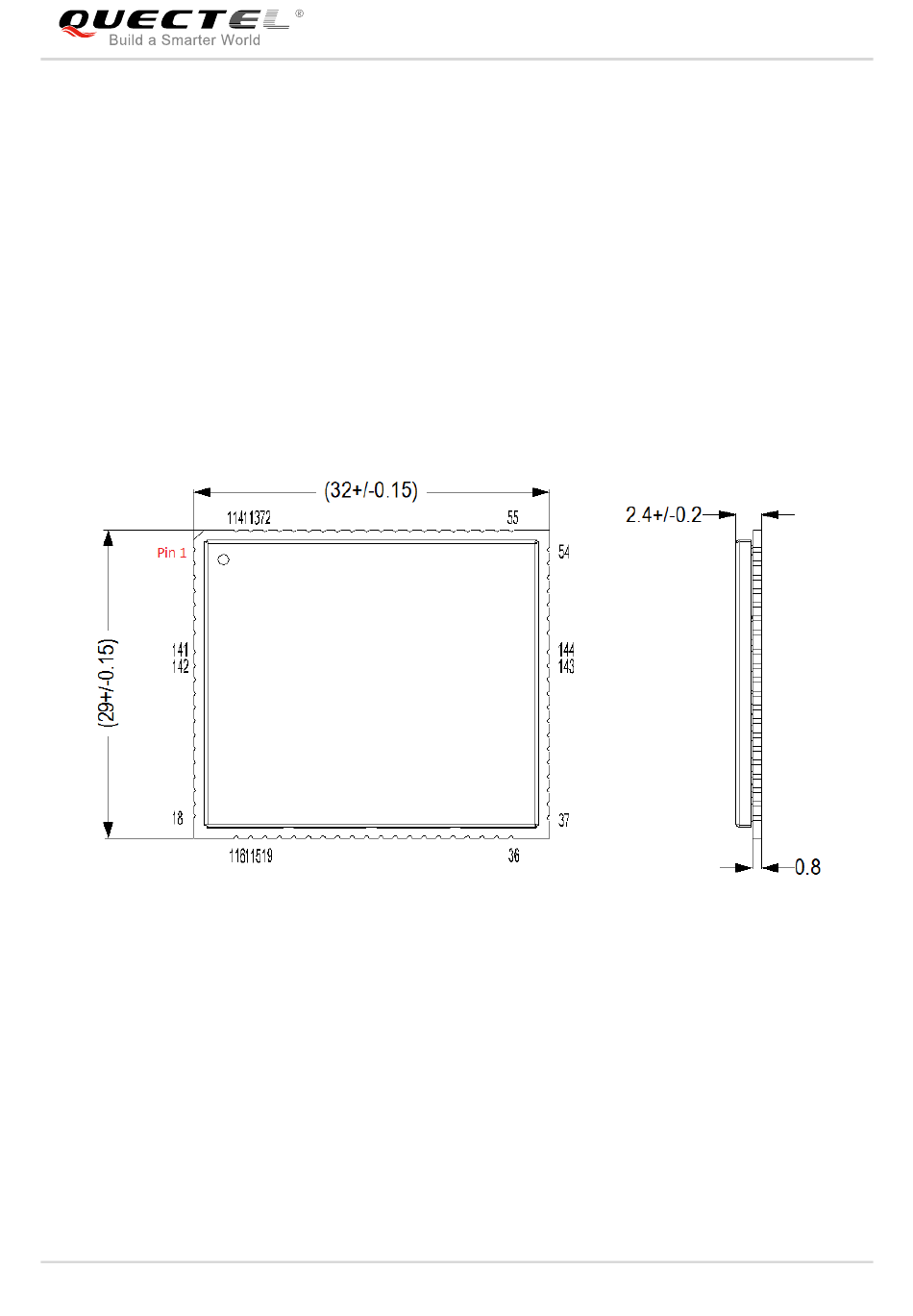

Figure 29: Module Top and Side Dimensions
UC200T-EM_Hardware_Design 52 / 68
