2.3. Functional Diagram

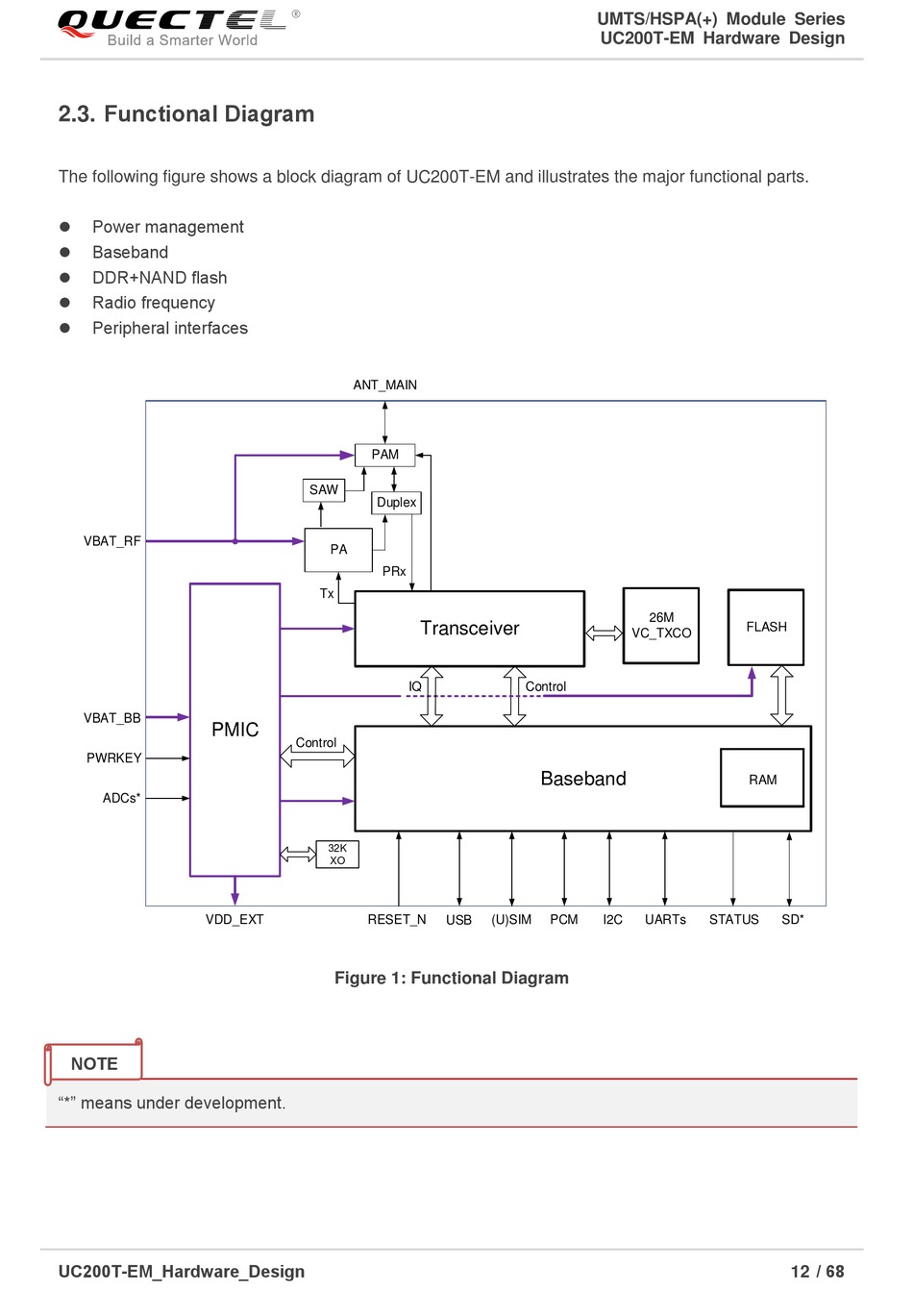

The following figure shows a block diagram of UC200T-EM and illustrates the major functional parts.
⚫
Power management
⚫
Baseband
⚫
DDR+NAND flash
⚫
Radio frequency
⚫
Peripheral interfaces
VBAT_RF
VBAT_BB
PMIC
PWRKEY
ADCs*
VDD_EXT
NOTE
"*" means under development.
UC200T-EM_Hardware_Design
ANT_MAIN
PAM
SAW
Duplex
PA
PRx
Tx
Transceiver
IQ
Control
32K
XO
RESET_N
USB
Figure 1: Functional Diagram
