3.15. STATUS

The STATUS pin is an open drain output signal for indicating the module's operation status. It can be
connected to a GPIO of DTE with a pulled-up resistor, or as LED indication circuit as below. When the
module is turned on normally, the STATUS will present the low state. Otherwise, the STATUS will present
high-impedance state.
Table 20: Pin Definition of STATUS
Pin Name Pin No.
STATUS 61

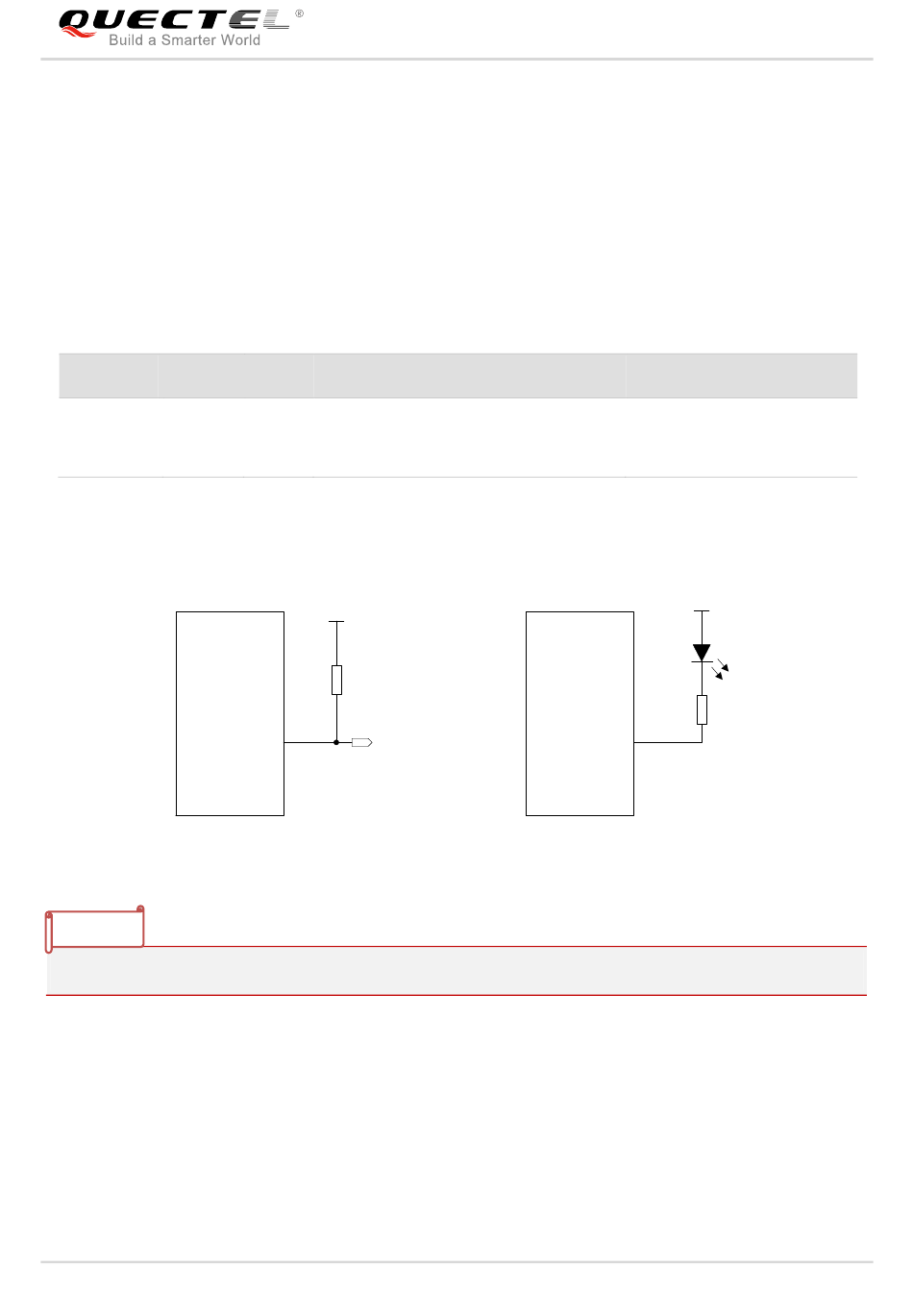

The following figure shows different circuit designs of STATUS, and customers can choose either one
according to the application demands.
Module
STATUS
NOTE
It is prohibited to supply any voltage to STATUS pin when VBAT is removed.

3.16. SLEEP_IND*

The SLEEP_IND pin is used for indicating the module's sleep status. When the module is entered into
sleep mode, the SLEEP_IND will present a high level.
UC200T-EM_Hardware_Design
I/O Description
OD Indicate the module operation status
VDD_MCU
10K
MCU_GPIO
Figure 18: Reference Circuits of STATUS
UMTS/HSPA(+) Module Series
UC200T-EM Hardware Design
Comment
An external pull-up resistor
is required.
If unused, keep it open.
Module
VBAT
2.2K
STATUS
