ESVK/KRV86 - ESVK/KRV88 Series "2 wire Bus" videokit
General directions for installation

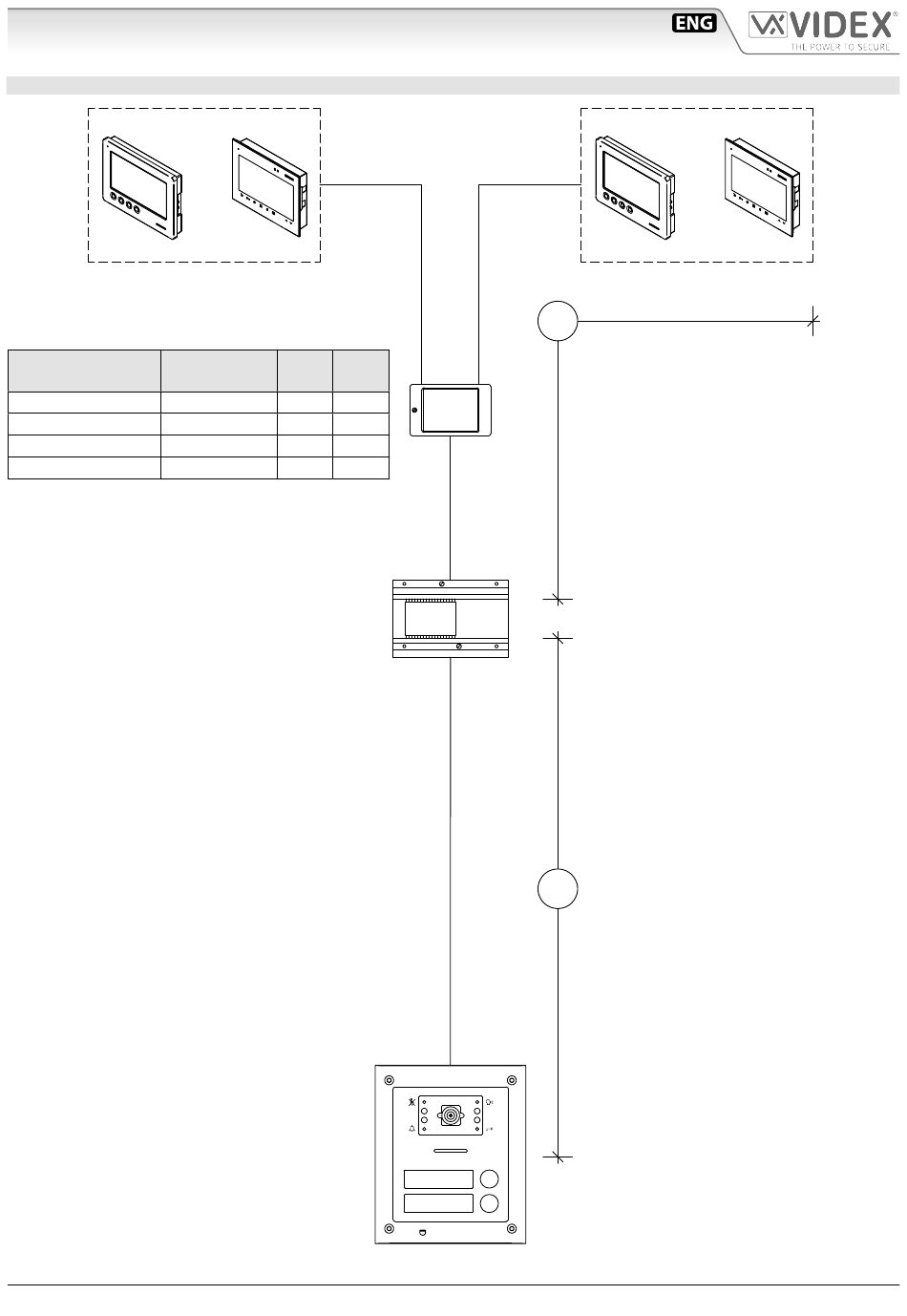

CABLES LENGTH & SIZE
7" Videophones
Art.6788
Wires Section
Cable Type
(mm2)
VIDEX CM2 0.50
CAT5 UTP/CW1308 0.22
Std Telephone Cable 0.28
Standard wire 0.5
* Using the active distributor Art. 317N, the maximum ca-
ble length using CM2 cable increases up to 300 metres.
ESVK/KRV86 - ESVK/KRV88 Series - Installation handbook
Or
Art.KRV782
A+B B max
300 150
100 50
150 50
70 30
B
Art.317N
Art.2321
A
- 9 -
7" Videophones
Or
Art.6788 Art.KRV782
