Videx ESVK Manual page 5

ESVK/KRV86 - ESVK/KRV88 Series "2 wire Bus" videokit
System components and available versions
ESVKC/KRV86 - ESVKC/KRV88
OUTDOOR
STATION
Camera unit
Art. 4384
pag. 10
Codelock
unit
Art. 4901
pag. 17

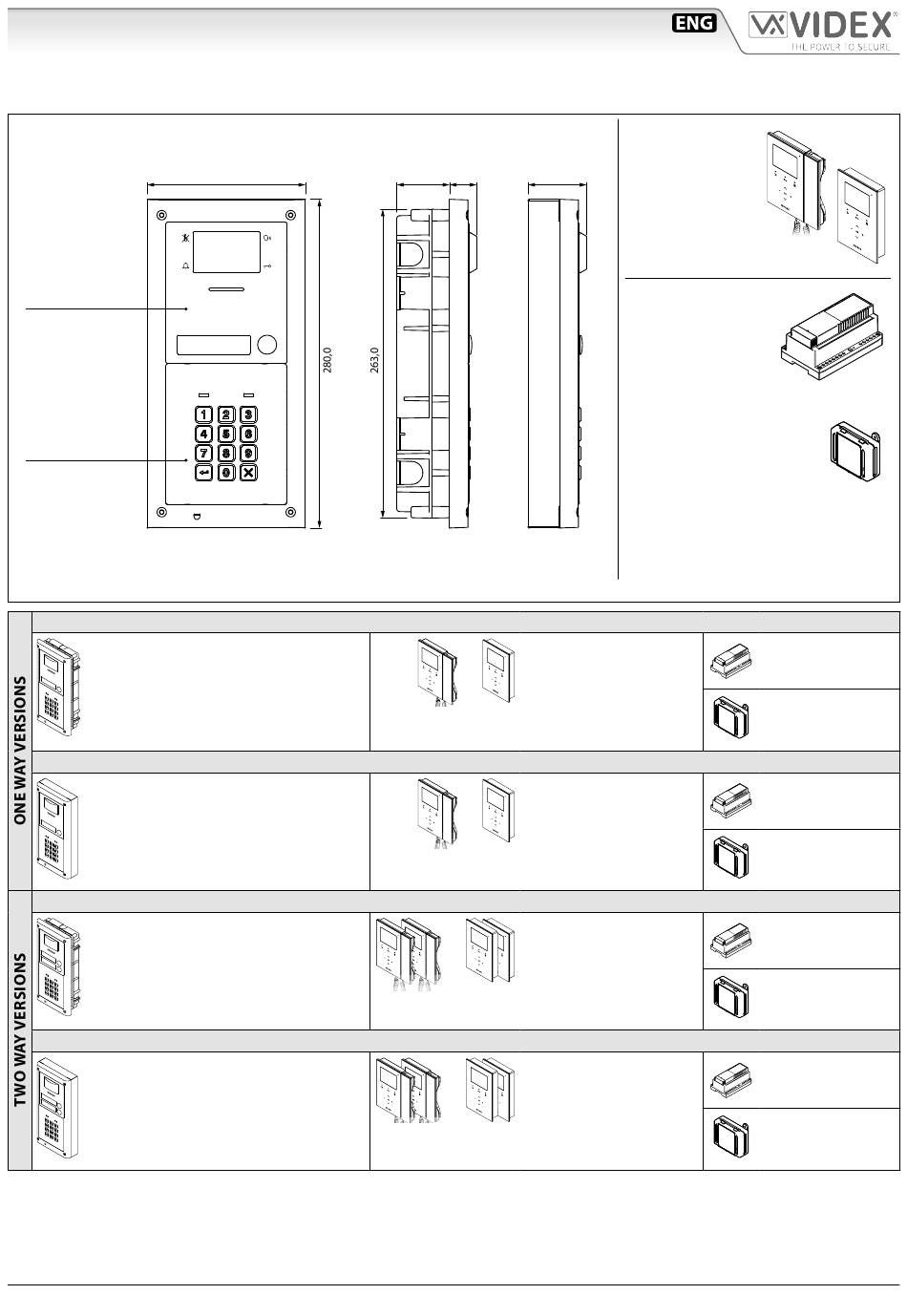

Fig. 3 - ESVKC/KRV86 - ESVKC/KRV88 components (measures in mm)
ESVKC-1/KRV86 - ESVKC-1/KRV88 - flush mounting
1 Outdoor station composed of:
1 Art. 4384-1:
1 Art. 4901:
1 Art. 4852:
ESVKC-1S/KRV86 - ESVKC-1S/KRV88 - surface mounting
1 Outdoor station composed of:
1 Art. 4384-1:
1 Art. 4901:
1 Art. 4882:
ESVKC-2/KRV86 - ESVKC-2/KRV88 - flush mounting
1 Outdoor station composed of:
1 Art. 4384-2:
1 Art. 4901:
1 Art. 4852:
ESVKC-2S/KRV86 - ESVKC-2S/KRV88 - surface mounting
1 Outdoor station composed of:
1 Art. 4384-2:
1 Art. 4901:
1 Art. 4882:
ESVK/KRV86 - ESVK/KRV88 Series - Installation handbook
135,0
1 button camera unit
Codelock module
Flush mounting box
1 button camera unit
Codelock module
Surface mounting box
2 buttons camera unit
Codelock module
Flush mounting box
2 buttons camera unit
Codelock module
Surface mounting box
Colour videokit plus a codelock module.
45,0 22,7 50
Flush Surface
Mounting Mounting
1 Colour videophone
Art. KRV86 or
or
Art. KRV88
1 Colour videophone
Art. KRV86 or
or
Art. KRV88
2 Colour videophones
Art. KRV86 or
or
Art. KRV88
2 Colour videophones
Art. KRV86 or
or
Art. KRV88
- 5 -
INDOOR STATION
Videophone
Art. KRV86 or
Art. KRV88
pag. 23
ACCESSORIES
Power supply
Art. 2321
pag. 31
Power supply converter
Art. 2322
pag. 32
1 Power supply
Art. 2321
1 Power supply
converter
Art. 2322
1 Power supply
Art. 2321
1 Power supply
converter
Art. 2322
1 Power supply
Art. 2321
1 Power supply
converter
Art. 2322
1 Power supply
Art. 2321
1 Power supply
converter
Art. 2322
66550045-EN - V6.2 - 31/10/20
