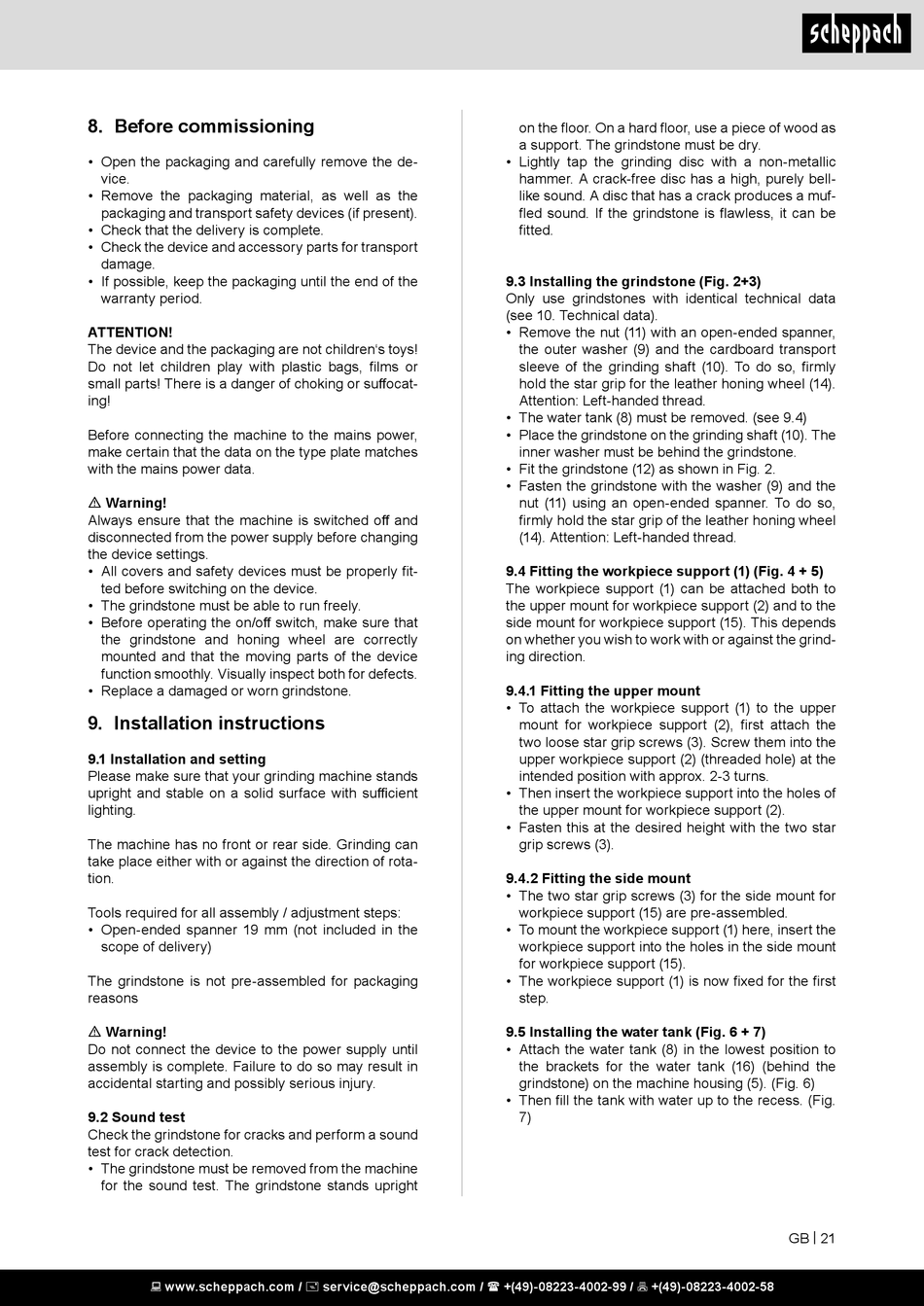

8. Before commissioning

• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, keep the packaging until the end of the
warranty period.
ATTENTION!
The device and the packaging are not children's toys!
Do not let children play with plastic bags, films or
small parts! There is a danger of choking or suffocat-
ing!
Before connecting the machine to the mains power,
make certain that the data on the type plate matches
with the mains power data.
m Warning!
Always ensure that the machine is switched off and
disconnected from the power supply before changing
the device settings.
• All covers and safety devices must be properly fit-
ted before switching on the device.
• The grindstone must be able to run freely.
• Before operating the on/off switch, make sure that
the grindstone and honing wheel are correctly
mounted and that the moving parts of the device
function smoothly. Visually inspect both for defects.
• Replace a damaged or worn grindstone.

9. Installation instructions

9.1 Installation and setting
Please make sure that your grinding machine stands
upright and stable on a solid surface with sufficient
lighting.
The machine has no front or rear side. Grinding can
take place either with or against the direction of rota-
tion.
Tools required for all assembly / adjustment steps:
• Open-ended spanner 19 mm (not included in the
scope of delivery)
The grindstone is not pre-assembled for packaging
reasons
m Warning!
Do not connect the device to the power supply until
assembly is complete. Failure to do so may result in
accidental starting and possibly serious injury.
9.2 Sound test
Check the grindstone for cracks and perform a sound
test for crack detection.
• The grindstone must be removed from the machine
for the sound test. The grindstone stands upright
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
on the floor. On a hard floor, use a piece of wood as
a support. The grindstone must be dry.
• Lightly tap the grinding disc with a non-metallic
hammer. A crack-free disc has a high, purely bell-
like sound. A disc that has a crack produces a muf-
fled sound. If the grindstone is flawless, it can be
fitted.
9.3 Installing the grindstone (Fig. 2+3)
Only use grindstones with identical technical data
(see 10. Technical data).
• Remove the nut (11) with an open-ended spanner,
the outer washer (9) and the cardboard transport
sleeve of the grinding shaft (10). To do so, firmly
hold the star grip for the leather honing wheel (14).
Attention: Left-handed thread.
• The water tank (8) must be removed. (see 9.4)
• Place the grindstone on the grinding shaft (10). The
inner washer must be behind the grindstone.
• Fit the grindstone (12) as shown in Fig. 2.
• Fasten the grindstone with the washer (9) and the
nut (11) using an open-ended spanner. To do so,
firmly hold the star grip of the leather honing wheel
(14). Attention: Left-handed thread.
9.4 Fitting the workpiece support (1) (Fig. 4 + 5)
The workpiece support (1) can be attached both to
the upper mount for workpiece support (2) and to the
side mount for workpiece support (15). This depends
on whether you wish to work with or against the grind-
ing direction.
9.4.1 Fitting the upper mount
• To attach the workpiece support (1) to the upper
mount for workpiece support (2), first attach the
two loose star grip screws (3). Screw them into the
upper workpiece support (2) (threaded hole) at the
intended position with approx. 2-3 turns.
• Then insert the workpiece support into the holes of
the upper mount for workpiece support (2).
• Fasten this at the desired height with the two star
grip screws (3).
9.4.2 Fitting the side mount
• The two star grip screws (3) for the side mount for
workpiece support (15) are pre-assembled.
• To mount the workpiece support (1) here, insert the
workpiece support into the holes in the side mount
for workpiece support (15).
• The workpiece support (1) is now fixed for the first
step.
9.5 Installing the water tank (Fig. 6 + 7)
• Attach the water tank (8) in the lowest position to
the brackets for the water tank (16) (behind the
grindstone) on the machine housing (5). (Fig. 6)
• Then fill the tank with water up to the recess. (Fig.
7)
