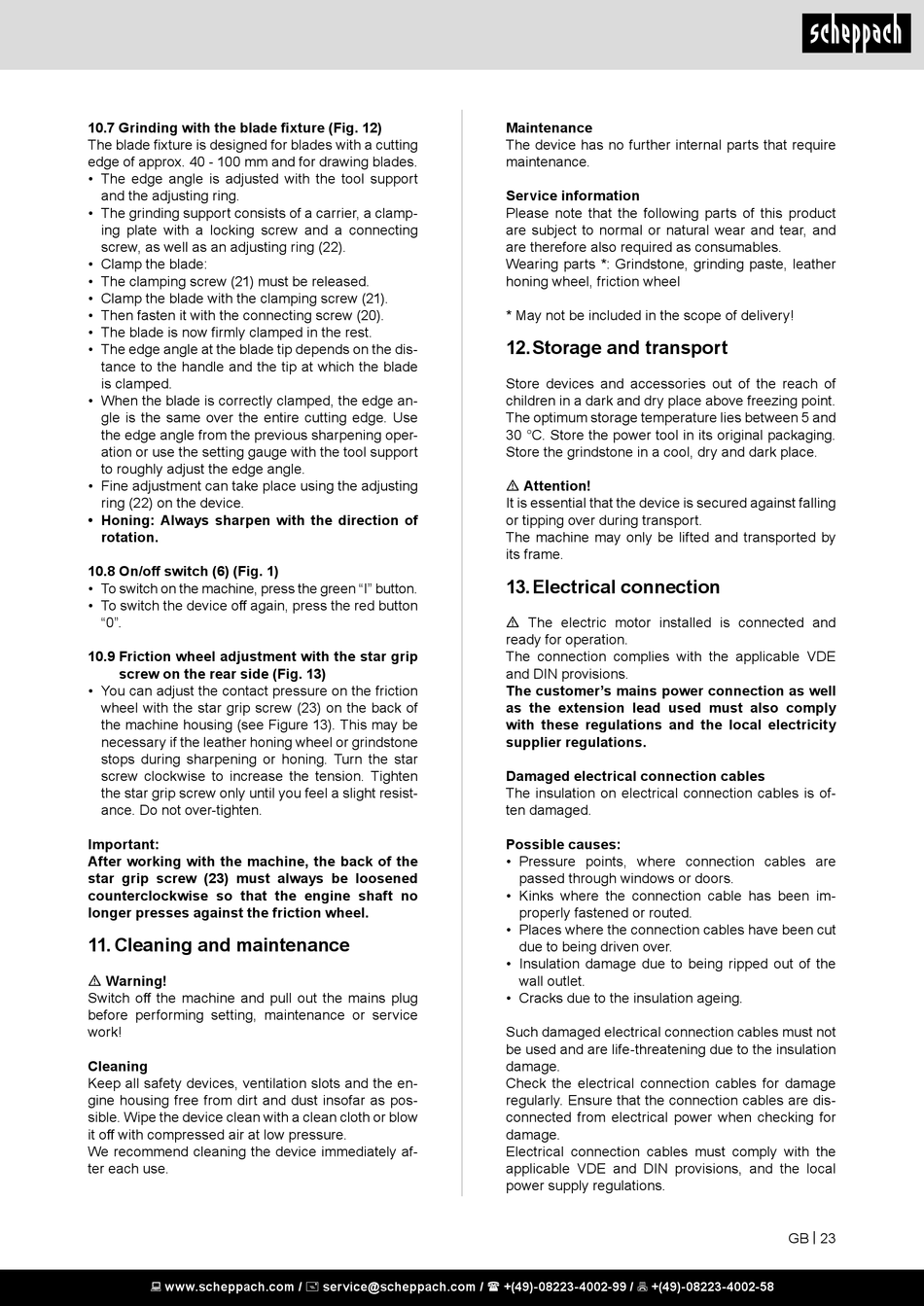

10.7 Grinding with the blade fixture (Fig. 12)
The blade fixture is designed for blades with a cutting
edge of approx. 40 - 100 mm and for drawing blades.
• The edge angle is adjusted with the tool support
and the adjusting ring.
• The grinding support consists of a carrier, a clamp-
ing plate with a locking screw and a connecting
screw, as well as an adjusting ring (22).
• Clamp the blade:
• The clamping screw (21) must be released.
• Clamp the blade with the clamping screw (21).
• Then fasten it with the connecting screw (20).
• The blade is now firmly clamped in the rest.
• The edge angle at the blade tip depends on the dis-
tance to the handle and the tip at which the blade
is clamped.
• When the blade is correctly clamped, the edge an-
gle is the same over the entire cutting edge. Use
the edge angle from the previous sharpening oper-
ation or use the setting gauge with the tool support
to roughly adjust the edge angle.
• Fine adjustment can take place using the adjusting
ring (22) on the device.
• Honing: Always sharpen with the direction of
rotation.
10.8 On/off switch (6) (Fig. 1)
• To switch on the machine, press the green "I" button.
• To switch the device off again, press the red button
"0".
10.9 Friction wheel adjustment with the star grip
screw on the rear side (Fig. 13)
• You can adjust the contact pressure on the friction
wheel with the star grip screw (23) on the back of
the machine housing (see Figure 13). This may be
necessary if the leather honing wheel or grindstone
stops during sharpening or honing. Turn the star
screw clockwise to increase the tension. Tighten
the star grip screw only until you feel a slight resist-
ance. Do not over-tighten.
Important:
After working with the machine, the back of the
star grip screw (23) must always be loosened
counterclockwise so that the engine shaft no
longer presses against the friction wheel.

11. Cleaning and maintenance

m Warning!
Switch off the machine and pull out the mains plug
before performing setting, maintenance or service
work!
Cleaning
Keep all safety devices, ventilation slots and the en-
gine housing free from dirt and dust insofar as pos-
sible. Wipe the device clean with a clean cloth or blow
it off with compressed air at low pressure.
We recommend cleaning the device immediately af-
ter each use.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Maintenance
The device has no further internal parts that require
maintenance.
Service information
Please note that the following parts of this product
are subject to normal or natural wear and tear, and
are therefore also required as consumables.
Wearing parts *: Grindstone, grinding paste, leather
honing wheel, friction wheel
* May not be included in the scope of delivery!

12. Storage and transport

Store devices and accessories out of the reach of
children in a dark and dry place above freezing point.
The optimum storage temperature lies between 5 and
30 °C. Store the power tool in its original packaging.
Store the grindstone in a cool, dry and dark place.
m Attention!
It is essential that the device is secured against falling
or tipping over during transport.
The machine may only be lifted and transported by
its frame.

13. Electrical connection

m The electric motor installed is connected and
ready for operation.
The connection complies with the applicable VDE
and DIN provisions.
The customer's mains power connection as well
as the extension lead used must also comply
with these regulations and the local electricity
supplier regulations.
Damaged electrical connection cables
The insulation on electrical connection cables is of-
ten damaged.
Possible causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been im-
properly fastened or routed.
• Places where the connection cables have been cut
due to being driven over.
• Insulation damage due to being ripped out of the
wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage
regularly. Ensure that the connection cables are dis-
connected from electrical power when checking for
damage.
Electrical connection cables must comply with the
applicable VDE and DIN provisions, and the local
power supply regulations.
