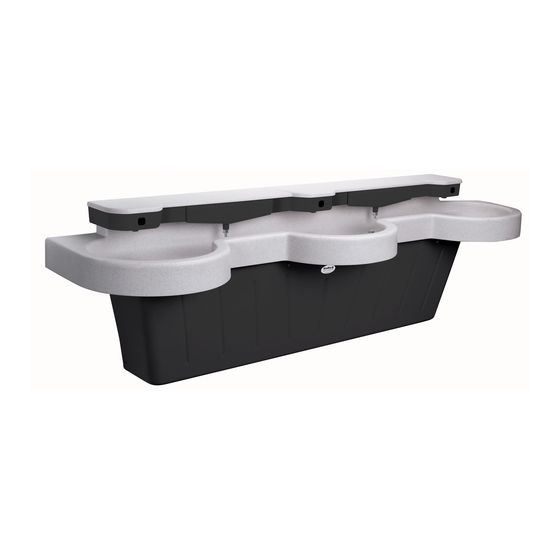

Bradley Express SS-Series Installation Manual
Lavatory system
Hide thumbs
Also See for Express SS-Series:
- Installation manual (27 pages) ,
- Installation instructions manual (17 pages) ,
- Installation manual (15 pages)
Table of Contents
Advertisement
Quick Links
SS-3N/AST/STD/LSD-3
SS-3N/AST-WH/LSD-3
215-1494 Rev. G; ECN 17-08-026
© 2018 Bradley
Page 1 of 15
2/22/2018
Installation
SS-3N/AST/STD
SS-3N/AST-WH
Express
Lavatory
®
System - SS-Series
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Install the Bowl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mount the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connect the Supply - Hot and Cold Supply . . . . . . . . . . . . . . . . . . 8
Connect the Supply - Single Tempered Supply . . . . . . . . . . . . . . . 8
Install the Drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connect Supply and Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Push Button Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Sprayhead Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjust the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Maintenance for Stainless Steel . . . . . . . . . . . . . . . 11
Brand Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting - Metering Air Valve . . . . . . . . . . . . . . . . . . . . . . 12
Thermostatic Mixing Valve Troubleshooting . . . . . . . . . . . . . . . . . 13
Stop Valve Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fill Soap Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Clean Soap Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
. . . . . . . . . . . . . . . . . . . . 11
®
P.O. Box 309
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Bradley Express SS-Series
Summary of Contents for Bradley Express SS-Series
-
Page 1: Table Of Contents
Clean Soap Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 P.O. Box 309 215-1494 Rev. G; ECN 17-08-026 Menomonee Falls, WI 53052 USA © 2018 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 15 2/22/2018 bradleycorp.com... -
Page 2: Pre-Installation Information
Product warranties may be found under “Products” on our website at www.bradleycorp.com. Special Note for Sprayhead/Bowl retrofit to retrofit new SS-3N sprayhead onto existing SS-3 bowl 2¼" (57mm) Drill hole Ø 1" (25mm) to 1½" (38mm) . Existing Hole 1½" (38mm) Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 3: Components
Bowl Mounting Hardware 1/8" Rubber Washer (125-001DP) 1/4"-20 1/4"-20x1/2" Washer Pan Head (qty 4) Screw (qty 4) Waste Shoe (142-002DB) (160-389) (111-062) P-Trap (Polypropylene) (269-1697) Waste Tee Optional P-Trap (111-063) (Chrome-Plated Brass) (S29-094) Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 4: Supplies Required
30" (762) 68-1/4" (1734) Front View Standard Frame SOAP SOAP 8" (203) 51-1/4" (1302) 58" (1473) 64" (1626) 68-1/4" (1734) Front View Wall-Hung Frame SOAP SOAP 8" (203) 58" (1473) 64" (1626) Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 5: Dimensions
Grades: 6 through 8 or 9 Grades: Pre-K through 5 or 6 11-1/2" 11-1/2" (292) (292) 36-1/2" 34-1/2" (927) (876) 32" 30" (813) (762) 8-5/8" 8-5/8" 28" (219) 26" (219) (711) (660) 11-1/4" 9-1/4" (286) (235) Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 6: Rough-Ins
34" None Standard Height 34" None Wall-Hung 32" Subtract 2" TAS, Grades 6 through 8 or 9 31" Subtract 3" Juvenile Height 30" Subtract 4" TAS, Pre-K through Grades 5 or 6 Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 7: Install The Bowl
. Do not tighten screws . Secure the bowl to the wall anchors with two 3/8" bolts and washers . Do not overtighten . Tighten the pan-head screws . Do not overtighten . Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 8: 4A Connect The Supply - Hot And Cold Supply
. Slide the valve bracket up and lift it from the frame . Attach the stop to the tempered wall stub-out . Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 9: Install The Drains
Red Supply Tubing Loosen the compression nuts . Push the matching color 1/8" tubes firmly into the tube connectors until they are fully seated . Tighten the compression nuts by hand . Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 10: Push Button Assembly
U-Cup (125-099) Duckbill (198-010) Spring (135-065) Actuator Body ASM (S39-802) Bracket, SSN Push Button (140-956) ¼" Tube Connector (169-890) Nut, ½" - 14 NPSM (110-115) Push Button Aerator (S05-180) (S08-324) #10 Screw (160-353) Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 11: Cleaning And Maintenance For Terreon
. For complete instructions on this additional maintenance, visit bradleycorp .com . Repair Kits: Terreon repair kits are available . Contact your Bradley representative or distributor for part numbers and pricing . Repair kits are made to order and have a shelf life of 30 days . -
Page 12: Troubleshooting - Metering Air Valve
2 . Clean valve seat and inspect for deep gouges or scratches . Replace valve body if streamformers . orifices . necessary . 3 . Remove any debris clogging off-center hole in rubber diaphragm . Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 13: Thermostatic Mixing Valve Troubleshooting
198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 14: Stop Valve Troubleshooting
2 . Inspect the stop valves to see that they have been properly installed . 3 . Inspect the thermostatic mixing valve for proper installation and connection to hot and cold supplies . Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018... -
Page 15: Fill Soap Dispenser
To change soap, pour out all of the soap from the dispenser and rinse with hot water several times until all residue is removed . Pump the valve until clean water appears . Rinse the dispenser with ethyl alcohol; air dry before refilling . Bradley • 215-1494 Rev. G; ECN 17-08-026 2/22/2018...
